Raceline Wheel 952B Aero (MPN: 952B-79050-12)

High-performance 17 inch cast aluminum wheel with satin black finish

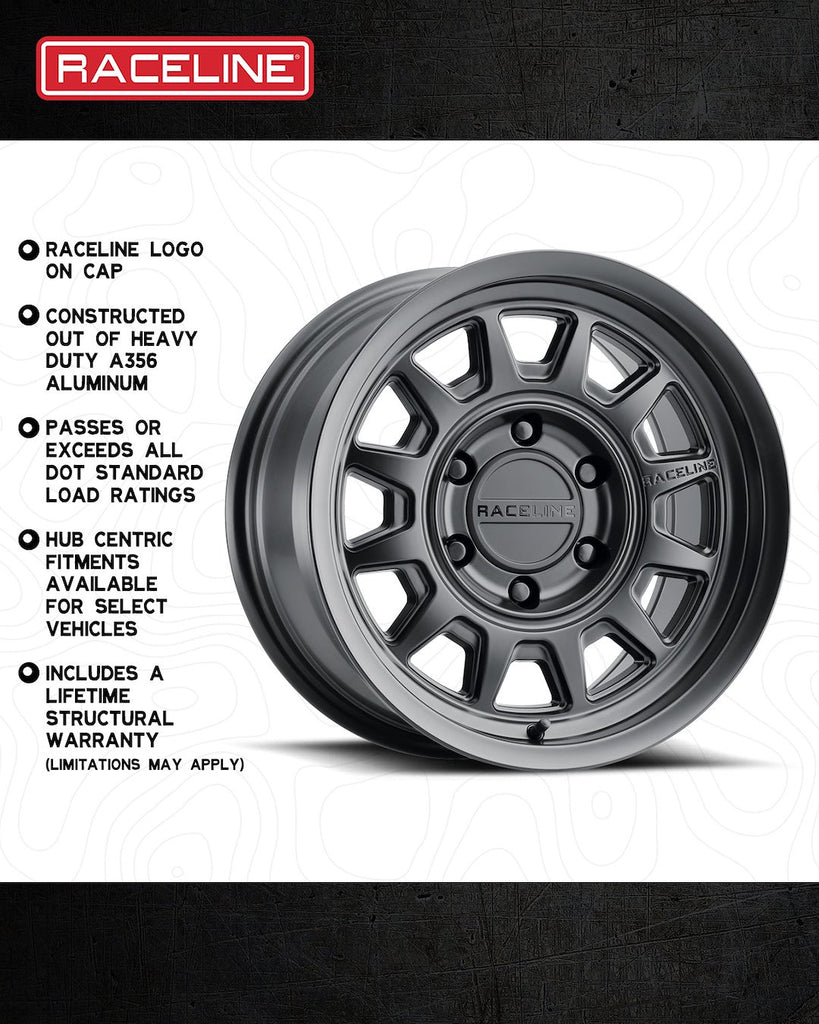

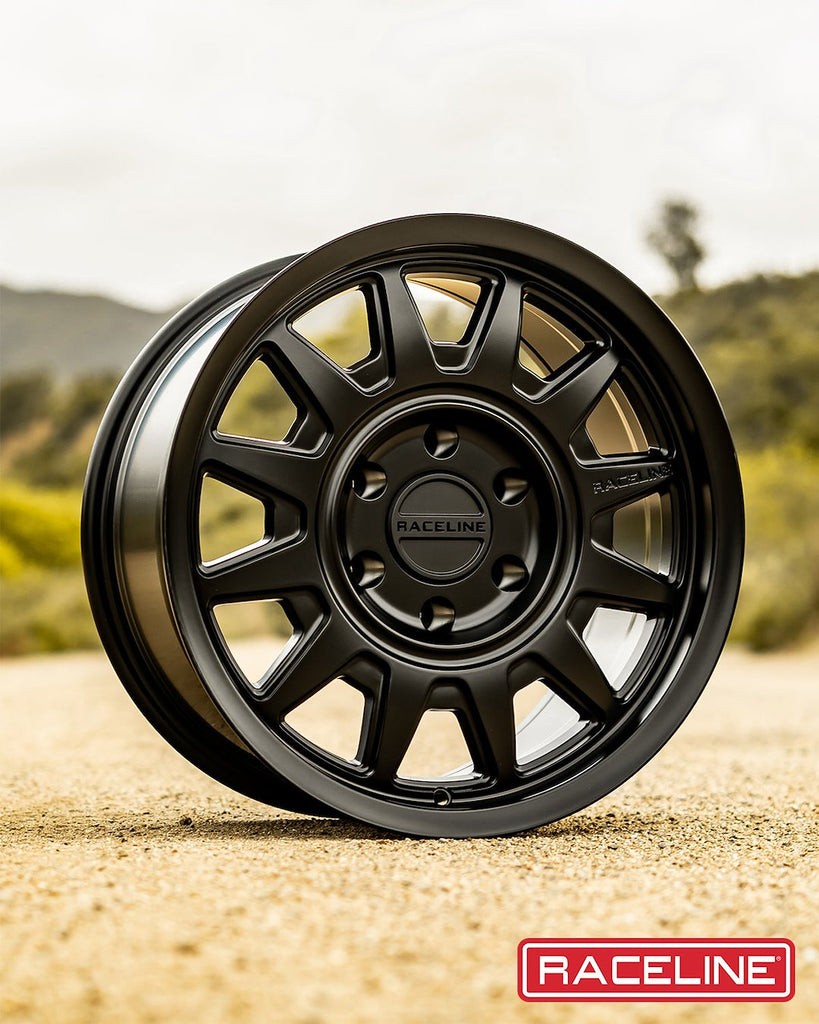

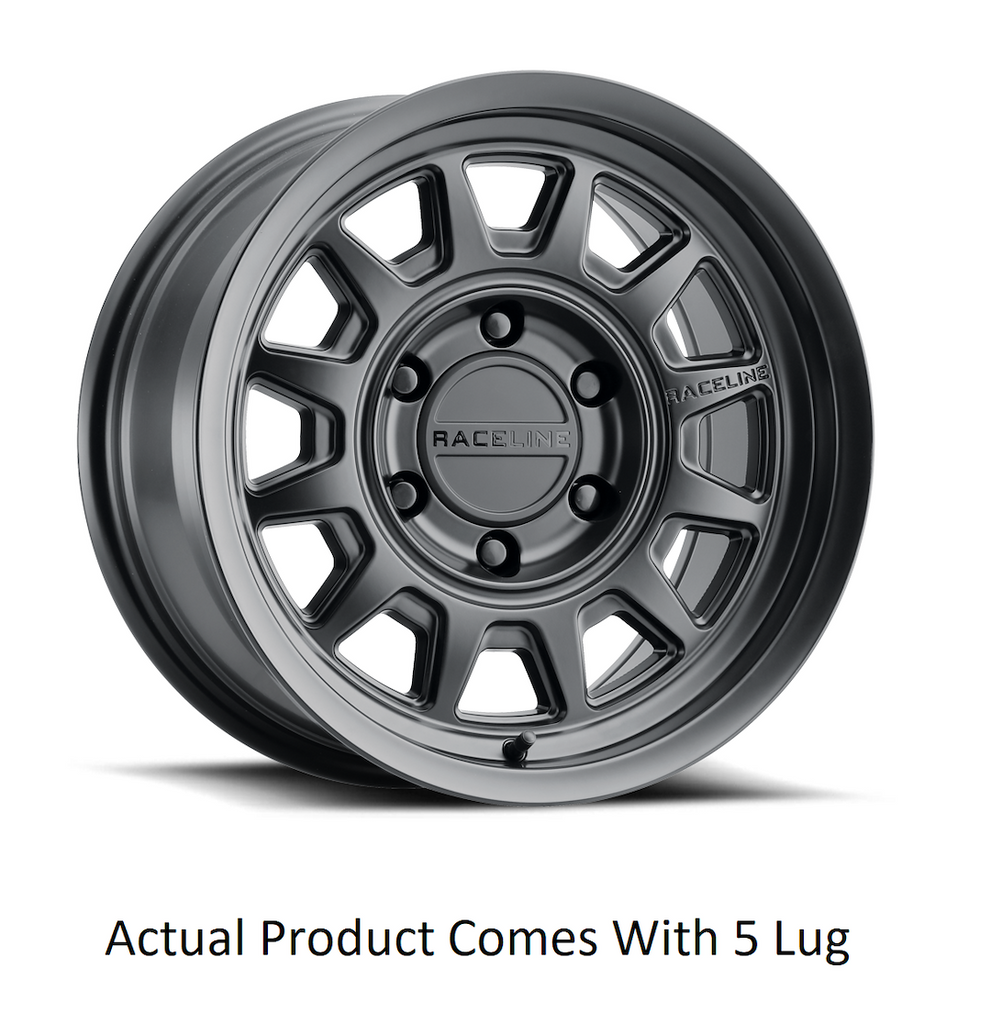

The Raceline Wheel 952B Aero is engineered for performance and durability, featuring a 17 inch diameter and 9 inch width. Constructed from a single piece of cast aluminum, this wheel offers a robust load capacity of 2500 pounds, making it suitable for various applications. The satin black finish not only enhances its aesthetic appeal but also provides resistance against wear and tear. Designed with a -12 millimeter offset and 4.50 inch backspacing, it ensures optimal fitment for a range of vehicles. Additionally, the wheel is compatible with Tire Pressure Monitoring Systems, ensuring safety and performance on the road.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Raceline Logo Center Cap

Specifications

• Manufacturer: Raceline
• Manufacturer Part Number: 952B-79050-12
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -12
• Backspacing: 4.50
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• With Inserts: No
• Load Capacity: 2500
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: Raceline Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1995-1999 Chevrolet Astro
• 1975-1986 Chevrolet C10
• 1967-1974 Chevrolet C10 Pickup
• 1970-1979 Chevrolet C10 Suburban
• 1981-1981 Chevrolet C10 Suburban
• 1993-1999 Chevrolet C1500 Suburban
• 1980-1990 Chevrolet Caprice
• 1996-1999 Chevrolet Express 1500
• 1971-1975 Chevrolet Impala
• 1987-1987 Chevrolet R10
• 1989-1991 Chevrolet R1500 Suburban
• 1995-1999 Chevrolet Tahoe
• 1989-1991 Chevrolet V1500 Suburban
• 1975-1978 GMC C15
• 1967-1974 GMC C15/C1500 Pickup
• 1979-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1992-1999 GMC C1500 Suburban
• 1975-1978 GMC G15
• 1979-1995 GMC G1500
• 1975-1978 GMC G25
• 1980-1995 GMC G2500
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1985-1999 GMC Safari
• 1996-1999 GMC Savana 1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 1967-1970 Pontiac Bonneville
• 1967-1970 Pontiac Catalina
