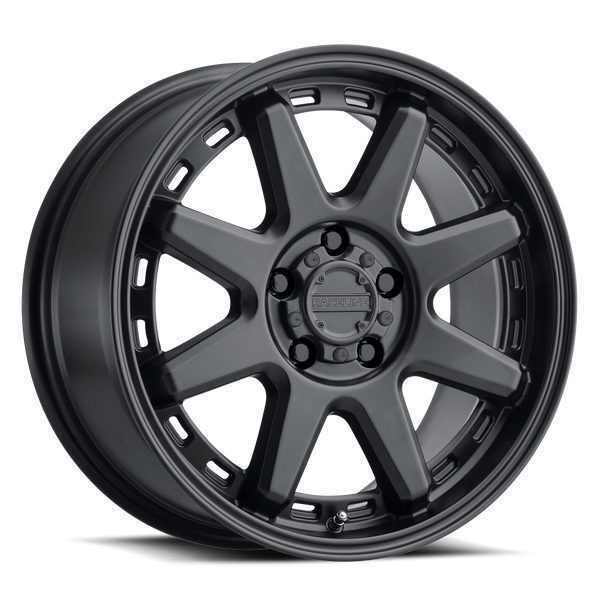

Raceline 947B Scout Wheel (MPN: 947B-21050-19)

High-performance 20 inch wheel designed for durability and style.

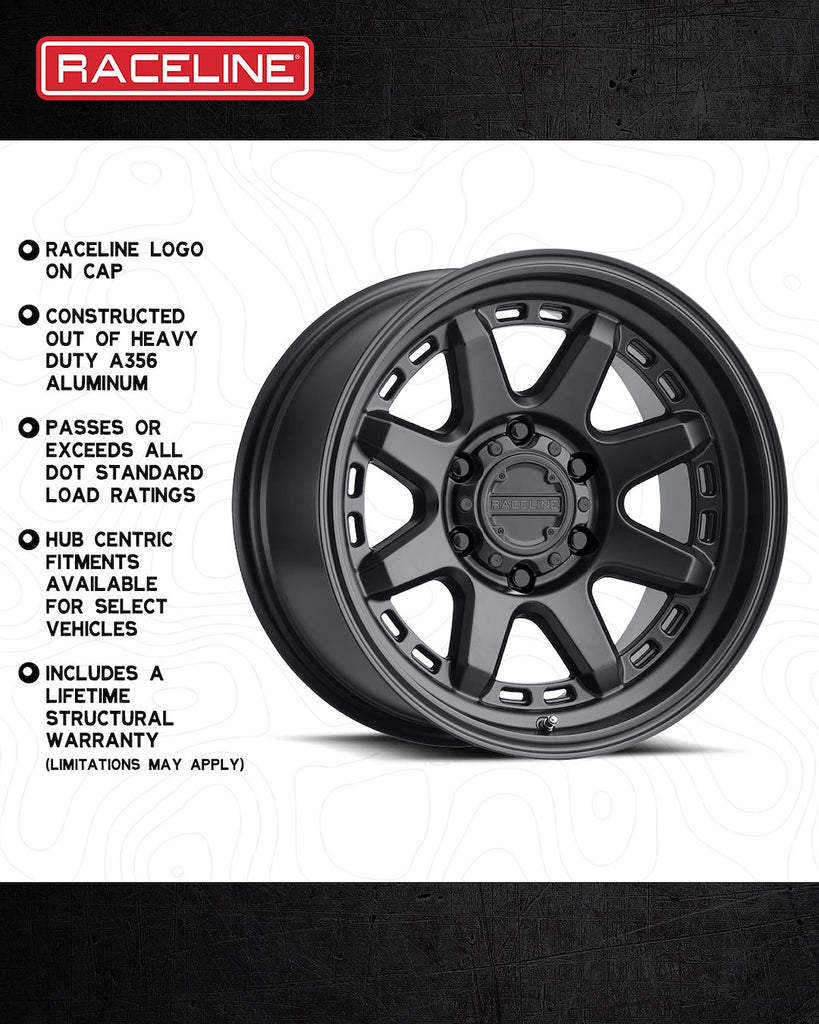

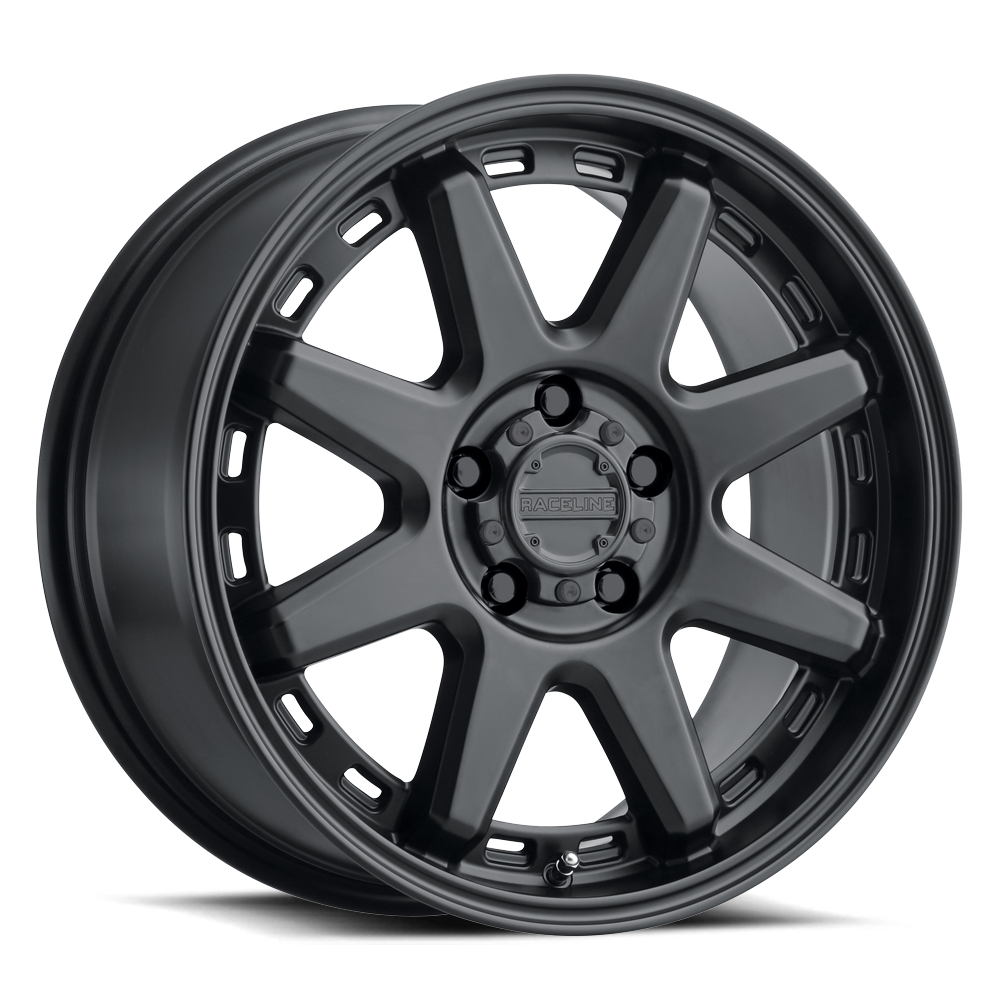

The Raceline 947B Scout Wheel is engineered for both off-road and on-road applications, featuring a robust 20 inch diameter and 10 inch width. Constructed from a single piece of cast aluminum, this wheel offers a satin black finish that enhances its aesthetic appeal while ensuring long-lasting durability. With a load capacity of 2500 pounds, it is designed to withstand the demands of various driving conditions.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health. The 8 spoke design not only contributes to its striking appearance but also aids in performance by reducing weight without compromising strength. The -19 millimeter offset and 4.75 inch backspacing ensure a proper fit for a wide range of vehicles, making it a versatile choice for enthusiasts.

The Raceline 947B Scout Wheel includes a center cap featuring the Raceline logo, further emphasizing its quality and brand heritage. With a maximum tire diameter of 42 inches, this wheel is suitable for various tire sizes, enhancing its adaptability for different driving needs. The 60 degree conical seat lug nut design ensures secure installation, making it a reliable option for both casual and performance-driven drivers.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Raceline Logo Center Cap

Specifications

• Manufacturer: Raceline
• Manufacturer Part Number: 947B-21050-19
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -19
• Backspacing: 4.75
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: Raceline Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1974 Chevrolet C10 Pickup
• 1988-1999 Chevrolet C1500
• 1989-1991 Chevrolet V1500 Suburban
• 1981-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
