Race Sport Lighting Multi Purpose Switch (MPN: RS-WP12A-R)

Economical solution for integrating lighting and equipment in vehicles.

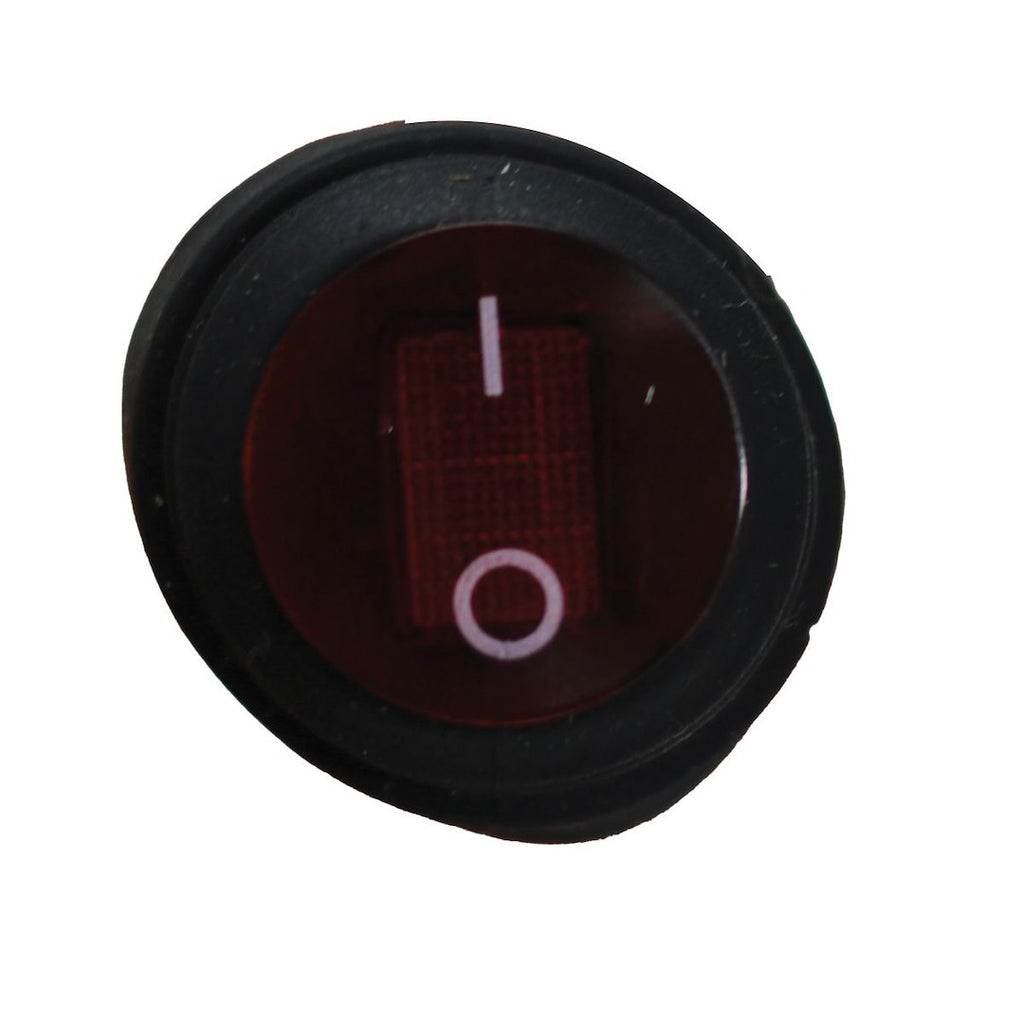

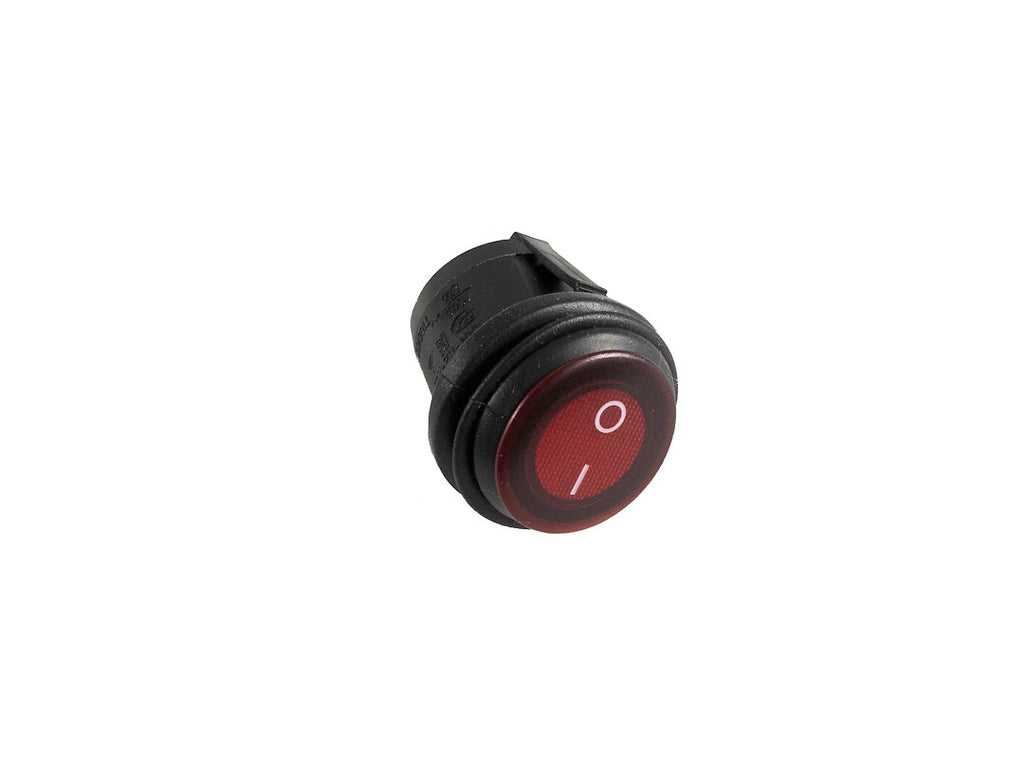

The Race Sport Lighting Multi Purpose Switch is designed for versatile applications in vehicles, providing a reliable on-off control for various 12 Volt equipment. With a current rating of 20 Amps at 12 Volts DC and 10 Amps at 24 Volts DC, this switch is suitable for powering light bars and other accessories. The switch features a rocker design with a red LED illumination, enhancing visibility and functionality in low-light conditions.

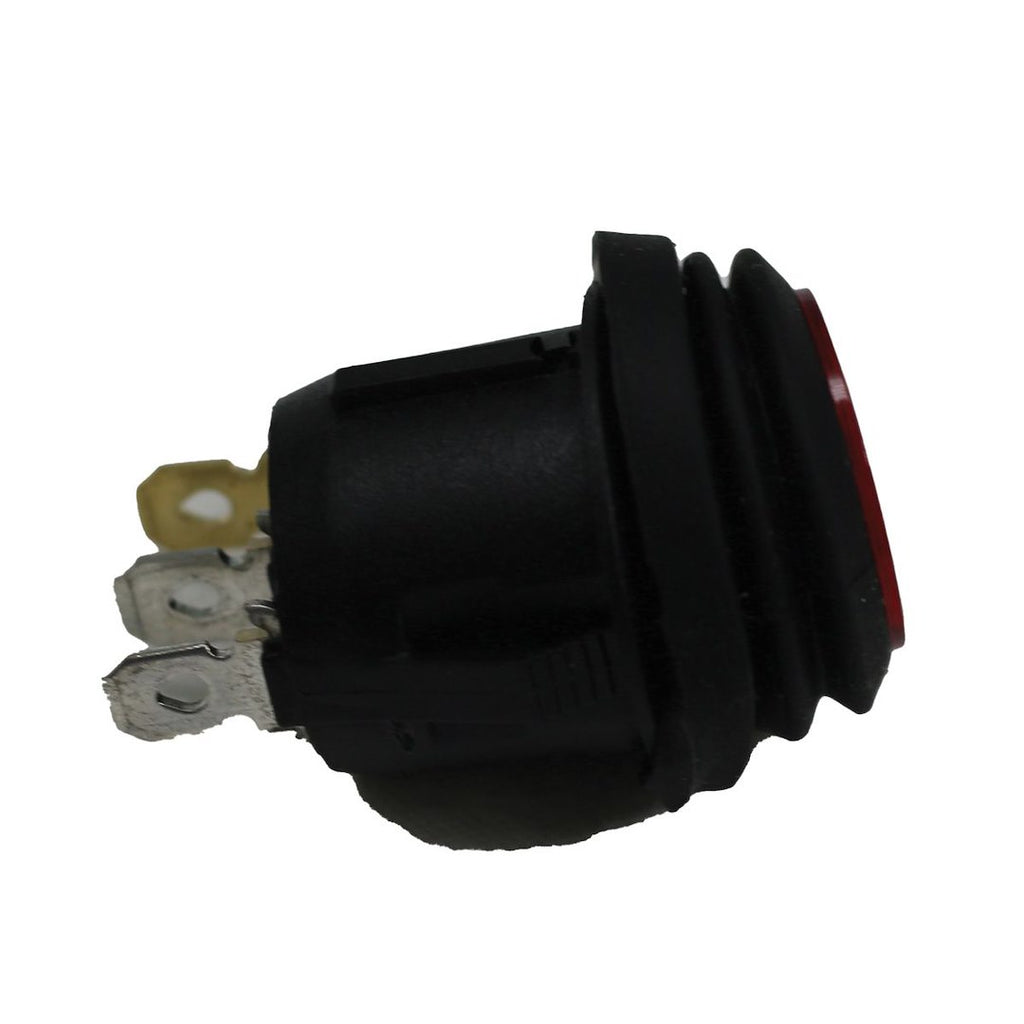

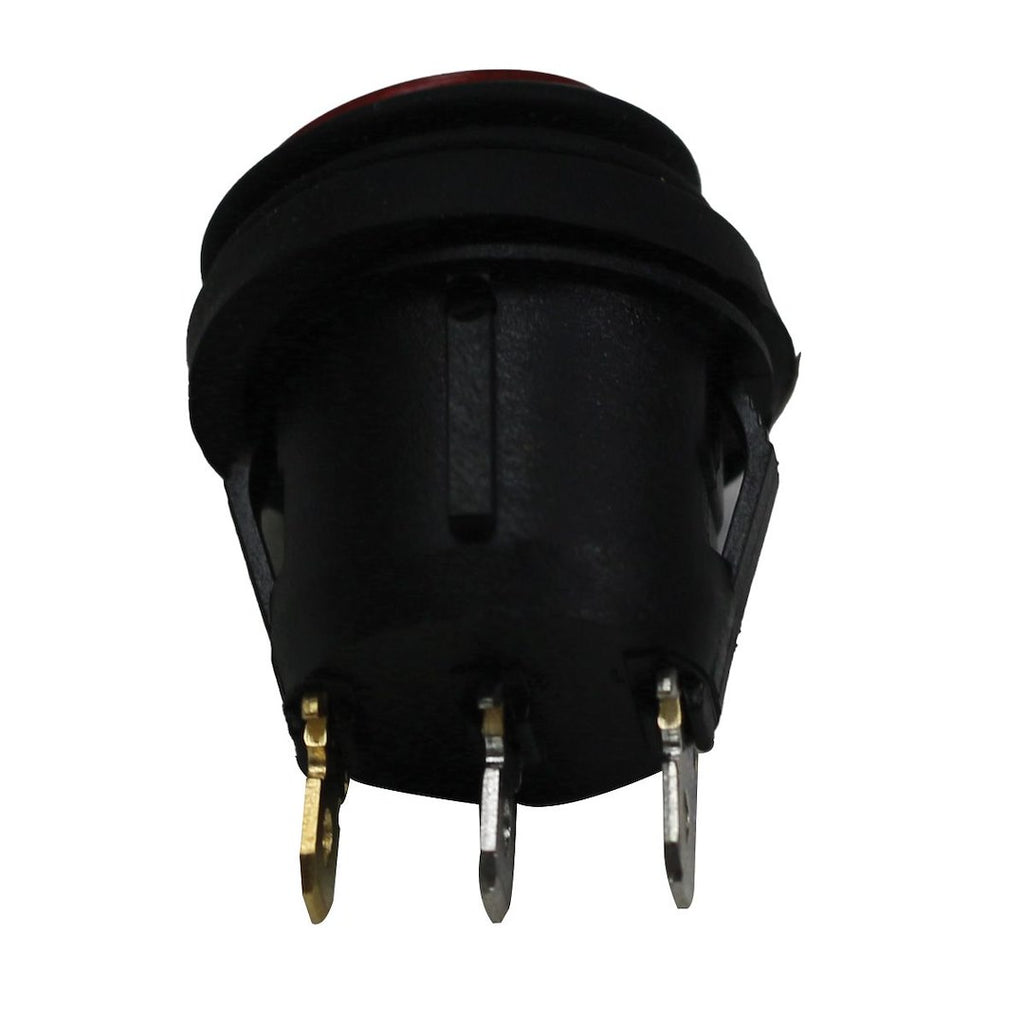

Constructed with three 3/16 inch male contact terminals, this switch ensures a secure connection and is compatible with matching 3/16 inch female push-on connectors. It is rated IP65 for waterproof protection, making it suitable for use in demanding environments. The mounting hole measures 13/16 inch in diameter, accommodating panels up to 1/8 inch thick, allowing for easy installation in various locations.

This single pole single throw switch is engineered for constant activation, providing straightforward operation. The sleek black and red color scheme adds a modern touch to any vehicle interior, while its durable construction ensures long-lasting performance.

Features

• Three 3/16 Inch Male Contact Terminals
• Waterproof IP65 Rated
• Use Matching 3/16 Inch Female Push On Connector
• Mounting Hole 13/16 Inch Diameter And Fits Panels Up To 1/8 Inch Thick

Specifications

• Manufacturer: Race Sport Lighting
• Manufacturer Part Number: RS-WP12A-R
• Design: Rocker
• Activation: Constant
• Switch Positions: On-Off
• Operation: Single Pole Single Throw
• Current Rating: 20 Amp
• Number Of Switches: 1
• Color: Black/ Red
• Illumination: Red
• Marine: No
• Voltage: 12 Volt
• Mount Location: Panel Mount
• Connector Gender: Male
• Terminal Type: Blade

Technical Documents

• RS-WP12A-R.pdf
