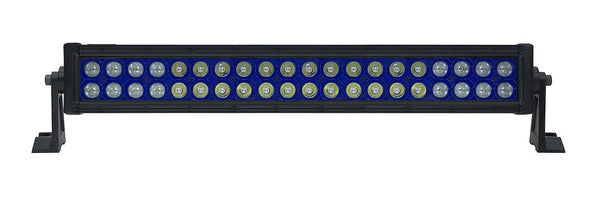

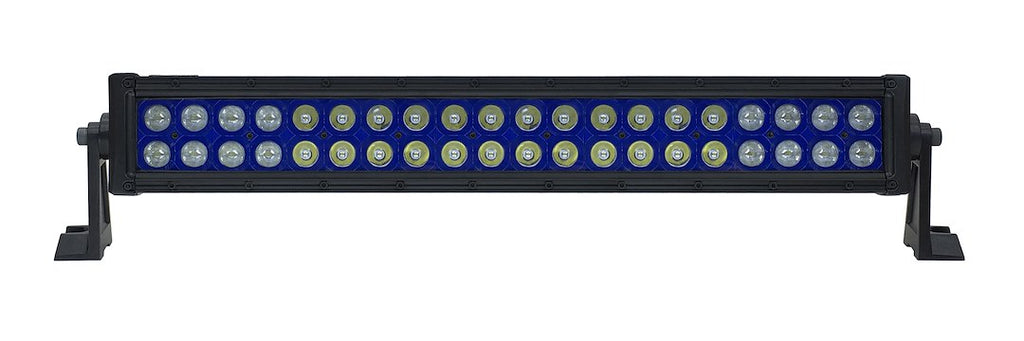

Quake LED Ultra Color Series Light Bar (MPN: QUU618)

High-performance LED light bar with advanced features for off-road applications.

The Quake LED Ultra Color Series Light Bar is engineered for durability and high performance in demanding environments. Measuring 23 inches in length, this light bar utilizes 3 Watt CREE LEDs to deliver an impressive 10200 lumens output, providing both spot and flood beam capabilities with a 30 degree and 60 degree angle respectively. Its robust black aluminum housing is designed to withstand impacts and vibrations, making it suitable for off-road use while maintaining a sleek appearance.

This light bar operates efficiently within a voltage range of 10 to 30 volts DC, making it compatible with both 12 volt and 24 volt vehicles. With a low amp draw of less than 10.0 amperes, it conserves battery power while ensuring optimal lighting performance. The polycarbonate lens is IP67 rated for waterproofing, allowing it to function in extreme weather conditions, with an operating temperature range from -40 degrees to 140 degrees Fahrenheit.

The Quake LED Ultra Color Series Light Bar is equipped with aluminum mounting brackets and includes a wiring harness and blue reflector for easy installation. With a color temperature of 6000 Kelvin and a lifespan exceeding 50,000 hours, this light bar is designed for long-term reliability and efficiency, making it a valuable addition to any vehicle's lighting system.

Features

• Black Aluminum Die-Cast Body
• 3 Watt High Intensity CREE LEDs
• Operating Voltage: 10 To 30 Volt DC
• Operating Temperature From -40 Degrees Fahrenheit To 140 Degrees Fahrenheit
• Optimized For Use With 12 Volt And 24 Volt Vehicles
• Less Than 10.0 Ampere Draw
• 6000 Kelvin Color Temperature; 50,000+ Hour Lifetime
• Polycarbonate Lens; IP67 Waterproof Rating
• Aluminum Mounting Brackets

Specifications

• Manufacturer: Quake LED
• Manufacturer Part Number: QUU618
• Bulb Type: LED
• Style: Straight
• Length: 23 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Beam Angle (Deg): 60 Degree Flood/ 30 Degree Spot
• Lumens: 10200 Lumens
• Wattage: 120 Watt
• Voltage Rating: 10 To 30 Volt
• Bulb Specifications: 3 Watt White CREE LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Includes: With Wiring Harness And Blue Reflector
• Estimated Install Time (Hours): 1.5
