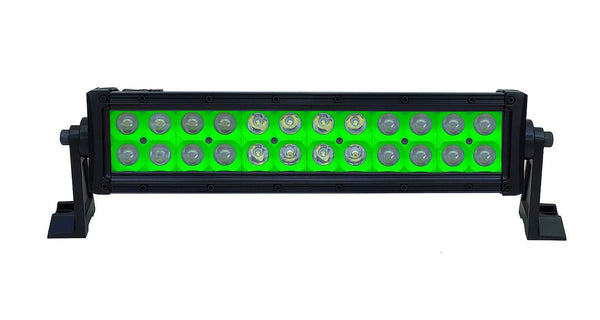

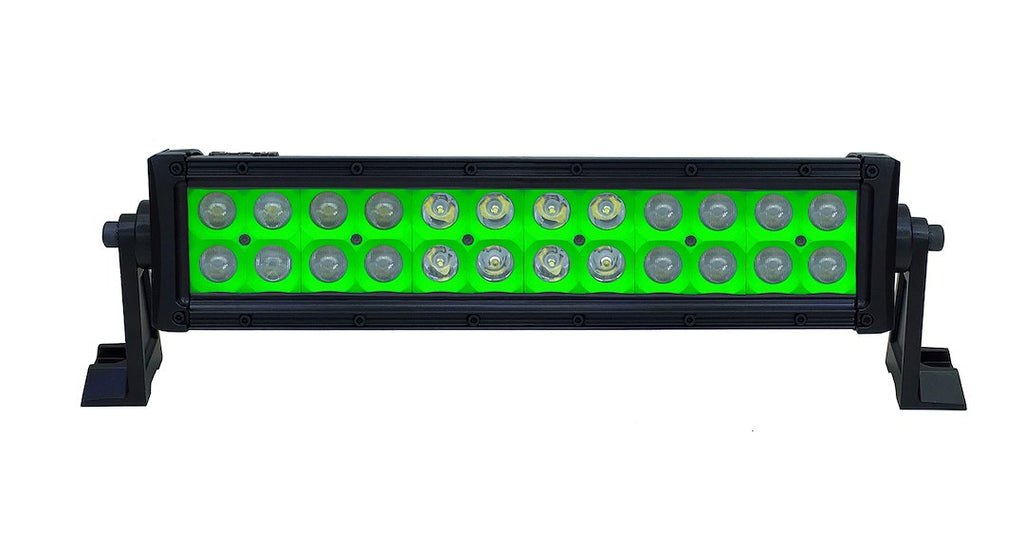

Quake LED Ultra Color Series Light Bar (MPN: QUU584)

Advanced LED technology for superior off-road visibility and durability.

The Quake LED Ultra Color Series Light Bar is engineered to deliver exceptional illumination with its powerful 3 Watt CREE LEDs, producing a total of 6120 lumens. This 13.5 inch light bar features a combination beam pattern, offering both a 30 degree spot and a 60 degree flood beam, making it versatile for various lighting needs. Constructed with a robust black aluminum housing, it is designed to withstand harsh conditions, ensuring longevity and reliability in off-road environments.

With an IP67 waterproof rating, the Quake Ultra Color Series Light Bar operates effectively in extreme temperatures ranging from -40 to 140 degrees Fahrenheit. The polycarbonate lens provides additional protection against impacts and vibrations, while the low-amp technology minimizes power consumption, drawing less than 6 amps. This light bar is optimized for both 12 volt and 24 volt vehicles, making it a suitable choice for a wide range of applications.

Installation is straightforward with the included wiring harness and aluminum mounting brackets, allowing for surface mounting. The sleek design and black powder coat finish not only enhance its aesthetic appeal but also contribute to its durability. The Quake LED Ultra Color Series Light Bar is a reliable lighting solution for those seeking high performance and resilience in their off-road adventures.

Features

• Black Aluminum Die-Cast Body
• 3 Watt High Intensity CREE LEDs
• Operating Voltage: 10 To 30 Volt DC
• Operating Temperature From -40 Degrees Fahrenheit To 140 Degrees Fahrenheit
• Optimized For Use With 12 Volt And 24 Volt Vehicles
• Less Than 6 Ampere Draw
• 6000 Kelvin Color Temperature; 50,000+ Hour Lifetime
• Polycarbonate Lens; IP67 Waterproof Rating
• Aluminum Mounting Brackets

Specifications

• Manufacturer: Quake LED
• Manufacturer Part Number: QUU584
• Bulb Type: LED
• Style: Straight
• Length: 13-1/2 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Beam Angle (Deg): 60 Degree Flood/ 30 Degree Spot
• Lumens: 6120 Lumens
• Wattage: 72 Watt
• Voltage Rating: 10 To 30 Volt
• Bulb Specifications: 24 White CREE 3 Watt LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Includes: With Wiring Harness And Green Reflector
• Estimated Install Time (Hours): 1.5
