Advanced LED technology with customizable color reflectors for optimal performance.

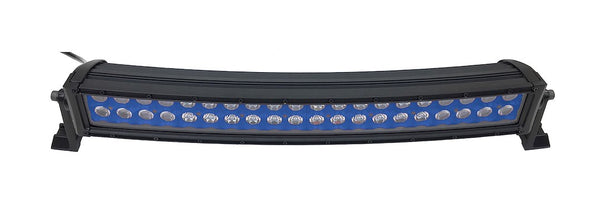

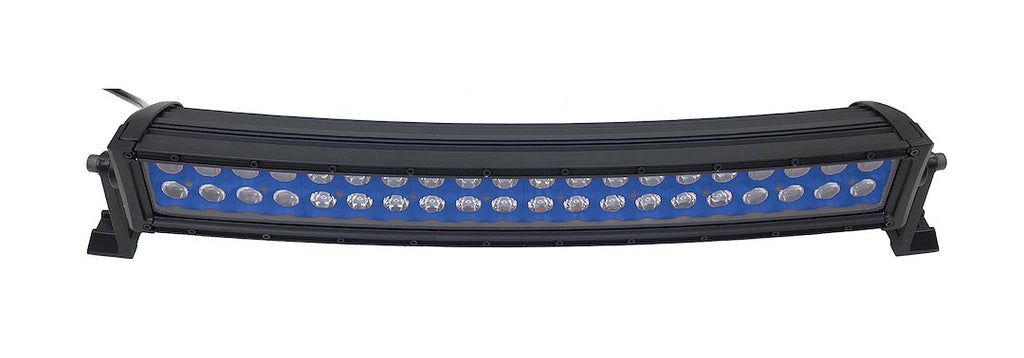

The Quake LED Ultra Arc Color Series Light Bar is engineered to deliver exceptional illumination with its powerful CREE LEDs. Measuring 22 inches in length, this light bar features a combination of spot and flood beam capabilities, producing an impressive 10200 lumens while drawing only 10 amps. The innovative design includes a black aluminum housing that is both durable and weatherproof, ensuring reliable performance in harsh conditions.
This light bar is optimized for use with 12 volt and 24 volt vehicles, making it versatile for various applications. With an operating temperature range of -40 to 140 degrees Fahrenheit and an IP67 waterproof rating, it is built to withstand extreme environments. The polycarbonate lens and aluminum mounting brackets further enhance its durability and ease of installation.
The Ultra Arc Color Series also offers a spectrum of color reflector options, allowing users to customize the appearance of their light bar while maintaining the same robust functionality. Each unit is designed to last over 50,000 hours, providing long-term value and reliability. The Quake LED Ultra Arc is a significant advancement in LED light technology, combining performance, durability, and aesthetic flexibility.
Features
- Black Aluminum Die-Cast Body
- 3 Watt High Intensity CREE LEDs
- Operating Voltage: 10 To 30 Volt DC
- Operating Temperature Of -40 Degrees Fahrenheit To 140 Degrees Fahrenheit
- Optimized For Use With 12 Volt And 24 Volt Vehicles
- Less Than 10.0 Ampere Draw
- Color Temperature Of 6000 Kelvin; 50,000+ Hour Lifetime
- Polycarbonate Lens; IP67 Waterproof Rating
- Aluminum Mounting Brackets
Specifications
- Manufacturer: Quake LED
- Manufacturer Part Number: QUCA743
- Bulb Type: LED
- Style: Curved
- Length: 22 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 2
- Light Color: White
- Housing Color: Black
- Beam Angle (Deg): 60 Degree Flood/ 30 Degree Spot
- Lumens: 10200 Lumens
- Wattage: 120 Watt
- Voltage Rating: 10 To 30 Volt
- Bulb Specifications: 40 White CREE LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Surface Mount
- Includes: With Wiring Harness And Blue Reflector
- Estimated Install Time (Hours): 1.5
