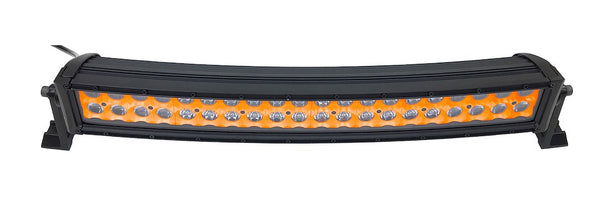

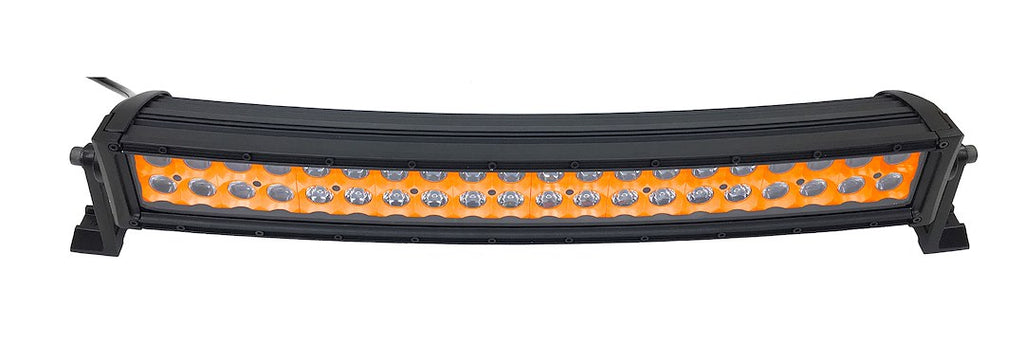

Quake LED Ultra Arc Color Series Light Bar (MPN: QUCA738)

Advanced LED technology with customizable color options for enhanced visibility.

The Quake LED Ultra Arc Color Series Light Bar is engineered to deliver exceptional illumination with its powerful CREE LEDs. Measuring 22 inches in length, this light bar features a combination of 30-degree spot and 60-degree flood beam angles, producing an impressive 10200 lumens. Designed for versatility, it operates efficiently within a voltage range of 10 to 30 volts, making it suitable for both 12-volt and 24-volt vehicles. The robust black aluminum housing ensures durability and weather resistance, while the polycarbonate lens provides protection against impacts and harsh conditions.

This light bar is built to withstand extreme temperatures, functioning effectively from -40 degrees to 140 degrees Fahrenheit. The IP67 waterproof rating guarantees reliable performance in wet environments, making it ideal for off-road applications. With a low amp draw of less than 10 amps, the Quake Ultra Arc Color Series Light Bar conserves battery power while delivering high-intensity lighting. The included wiring harness and orange reflector enhance installation convenience and safety.

Incorporating the latest in LED technology, the Quake Ultra Arc offers a full spectrum of color reflector options, allowing users to customize their lighting setup. Its dual-row design and advanced Hybrid Optic System maximize light output and distribution, ensuring optimal visibility in various driving conditions. The Quake LED Ultra Arc Color Series Light Bar is a robust solution for those seeking reliable and powerful lighting for their vehicles.

Features

• Black Aluminum Die-Cast Body
• 3 Watt High Intensity CREE LEDs
• Operating Voltage: 10 To 30 Volt DC
• Operating Temperature Of -40 Degrees Fahrenheit To 140 Degrees Fahrenheit
• Optimized For Use With 12 Volt And 24 Volt Vehicles
• Less Than 10.0 Ampere Draw
• Color Temperature Of 6000 Kelvin; 50,000+ Hour Lifetime
• Polycarbonate Lens; IP67 Waterproof Rating
• Aluminum Mounting Brackets

Specifications

• Manufacturer: Quake LED
• Manufacturer Part Number: QUCA738
• Bulb Type: LED
• Style: Curved
• Length: 22 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Beam Angle (Deg): 60 Degree Flood/ 30 Degree Spot
• Lumens: 10200 Lumens
• Wattage: 120 Watt
• Voltage Rating: 10 To 30 Volt
• Bulb Specifications: 40 White CREE LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Includes: With Wiring Harness And Orange Reflector
• Estimated Install Time (Hours): 1.5
