Advanced LED technology with customizable color reflectors for optimal performance.

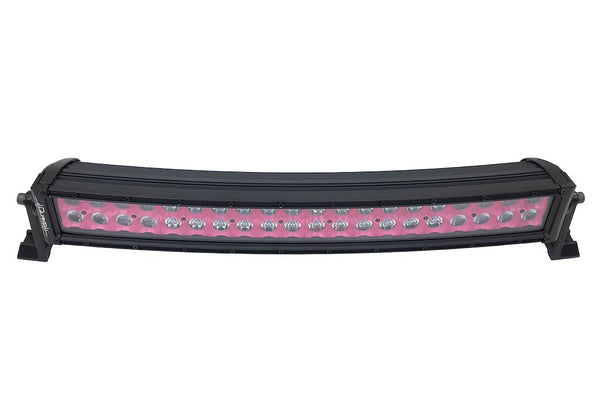

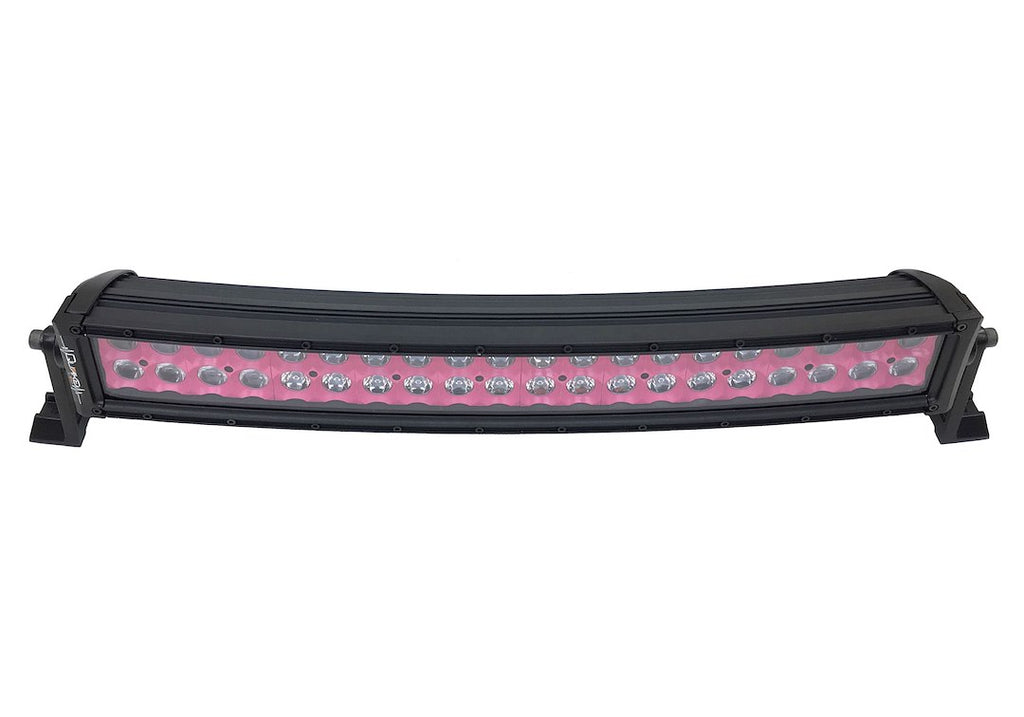

The Quake LED Ultra Arc Color Series Light Bar is engineered to deliver exceptional illumination with its powerful CREE LEDs. Measuring 22 inches in length, this light bar features a combination of spot and flood beam capabilities, producing an impressive 10200 lumens while drawing only 10 amps. Its robust construction includes a black aluminum housing that is both durable and weatherproof, ensuring reliable performance in challenging off-road conditions.
Designed for versatility, the Ultra Arc allows users to select from a spectrum of color reflector options, enhancing the aesthetic appeal of any vehicle. The light bar operates efficiently within a voltage range of 10 to 30 volts, making it suitable for both 12-volt and 24-volt systems. With an operating temperature range of -40 to 140 degrees Fahrenheit, it is built to withstand extreme environments.
The Quake Ultra Arc is equipped with a polycarbonate lens and is rated IP67 for waterproofing, providing peace of mind during inclement weather. Its dual-row design maximizes light output while minimizing power consumption, making it an excellent choice for those seeking high-performance lighting solutions. Installation is straightforward, with included mounting brackets and wiring harness for quick setup.
Features
- Black Aluminum Die-Cast Body
- 3 Watt High Intensity CREE LEDs
- Operating Voltage: 10 To 30 Volt DC
- Operating Temperature Of -40 Degrees Fahrenheit To 140 Degrees Fahrenheit
- Optimized For Use With 12 Volt And 24 Volt Vehicles
- Less Than 10.0 Ampere Draw
- Color Temperature Of 6000 Kelvin; 50,000+ Hour Lifetime
- Polycarbonate Lens; IP67 Waterproof Rating
- Aluminum Mounting Brackets
Specifications
- Manufacturer: Quake LED
- Manufacturer Part Number: QUCA640
- Bulb Type: LED
- Style: Curved
- Length: 22 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 2
- Light Color: White
- Housing Color: Black
- Beam Angle (Deg): 60 Degree Flood/ 30 Degree Spot
- Lumens: 10200 Lumens
- Wattage: 120 Watt
- Voltage Rating: 10 To 30 Volt
- Bulb Specifications: 40 White CREE LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Surface Mount
- Includes: With Wiring Harness And Pink Reflector
- Estimated Install Time (Hours): 1.5
