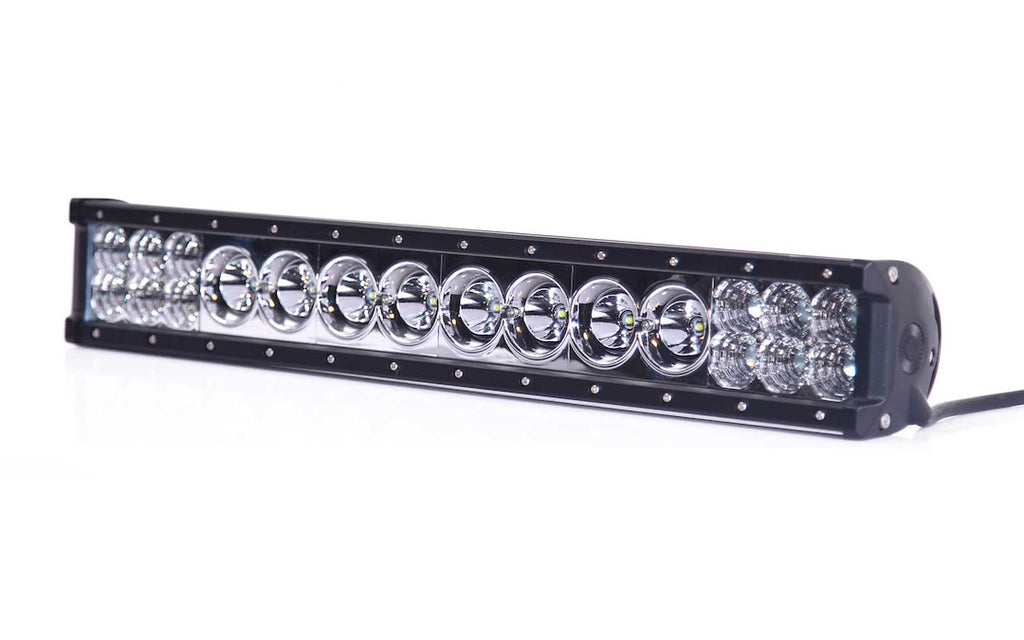

Quake LED Hybrid Series Light Bar (MPN: QUH118)

Advanced LED technology for versatile lighting solutions in any environment.

The Quake LED Hybrid Series Light Bar is engineered to provide exceptional illumination with its innovative combination of 3 Watt and 10 Watt CREE LEDs. This 20 inch light bar features a selectable combo beam pattern, allowing users to switch between flood and spot beams independently, ensuring optimal visibility for various applications. With a total output of 9280 lumens, it delivers powerful lighting performance suitable for off-road and on-road use.

Constructed with a robust black aluminum die-cast body, the Quake Hybrid Series is designed to withstand harsh conditions. It boasts an IP67 waterproof rating, making it resistant to water and dust, while the durable polycarbonate lens protects against impacts. This light bar operates efficiently within a voltage range of 10 to 30 volts and draws less than 9.7 amps, making it compatible with both 12 volt and 24 volt vehicles.

The Quake Hybrid Series Light Bar is built to last, with a lifespan exceeding 50,000 hours and a wide operating temperature range from -40 to 140 degrees Fahrenheit. Its surface mount design and included wiring harness facilitate straightforward installation, making it a practical choice for enhancing visibility in challenging environments.

Features

• Black Aluminum Die-Cast Body
• Selectable Combo Beam Pattern
• Operating Voltage: 10 To 30 Volt DC
• Optimized For Use With 12 Volt And 24 Volt Vehicles
• Less Than 9.7 Ampere Draw
• Both 3 Watt And 10 Watt High Intensity CREE LEDs; Polycarbonate Lens
• Color Temperature: 6000 Kelvin; IP67 Waterproof Rating
• Operating Temperature: -40 Degrees Fahrenheit To 140 Degrees Fahrenheit; 50,000+ Hour Lifetime
• Aluminum Mounting Brackets

Specifications

• Manufacturer: Quake LED
• Manufacturer Part Number: QUH118
• Bulb Type: LED
• Style: Straight
• Length: 20 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Beam Angle (Deg): 60 Degree Flood/ 30 Degree Spot
• Lumens: 9280 Lumens
• Wattage: 116 Watt
• Voltage Rating: 10 To 30 Volt
• Bulb Specifications: 20 White CREE 3 Watt And 10 Watt LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Includes: With Wiring Harness
• Estimated Install Time (Hours): 1.5
