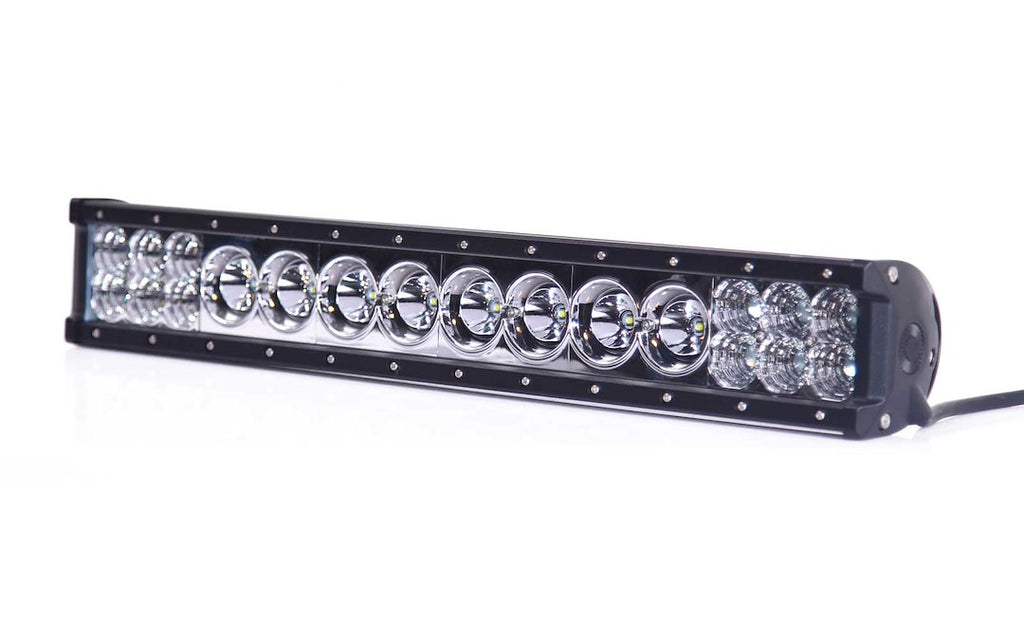

Quake LED Hybrid Series Light Bar (MPN: QUH029)

Advanced LED technology for versatile lighting solutions in any environment.

The Quake LED Hybrid Series Light Bar is engineered to provide exceptional illumination with its innovative combination of 3 Watt and 10 Watt CREE LEDs. This 11 inch light bar features a selectable combo beam pattern, allowing users to switch between flood and spot beams independently, ensuring optimal visibility for various applications. With a total output of 4480 lumens, it delivers powerful lighting performance while maintaining a low power draw of less than 4.7 amps.

Constructed with a robust black aluminum die-cast body, the Quake Hybrid Series is designed to withstand the rigors of off-road use. Its IP67 waterproof rating ensures reliable operation in harsh weather conditions, while the polycarbonate lens provides additional protection against impacts. The light bar operates efficiently within a voltage range of 10 to 30 volts, making it compatible with both 12 volt and 24 volt vehicles.

The Quake Hybrid Series Light Bar is built to last, boasting a lifespan of over 50,000 hours and a wide operating temperature range from -40 degrees to 140 degrees Fahrenheit. This makes it suitable for use in diverse climates and environments. The included aluminum mounting brackets facilitate easy surface mounting, ensuring a secure installation for any vehicle.

Features

• Black Aluminum Die-Cast Body
• Selectable Combo Beam Pattern
• Operating Voltage: 10 To 30 Volt DC
• Optimized For Use With 12 Volt And 24 Volt Vehicles
• Less Than 4.7 Ampere Draw
• Both 3 Watt And 10 Watt High Intensity CREE LEDs; Polycarbonate Lens
• Color Temperature: 6000 Kelvin; IP67 Waterproof Rating
• Operating Temperature: -40 Degrees Fahrenheit To 140 Degrees Fahrenheit; 50,000+ Hour Lifetime
• Aluminum Mounting Brackets

Specifications

• Manufacturer: Quake LED
• Manufacturer Part Number: QUH029
• Bulb Type: LED
• Style: Straight
• Length: 11 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Beam Angle (Deg): 60 Degree Flood/ 30 Degree Spot
• Lumens: 4480 Lumens
• Wattage: 56 Watt
• Voltage Rating: 10 To 30 Volt
• Bulb Specifications: 14 White/ 3 Watt And 10 Watt White CREE LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Includes: With Wiring Harness
• Estimated Install Time (Hours): 1.5
