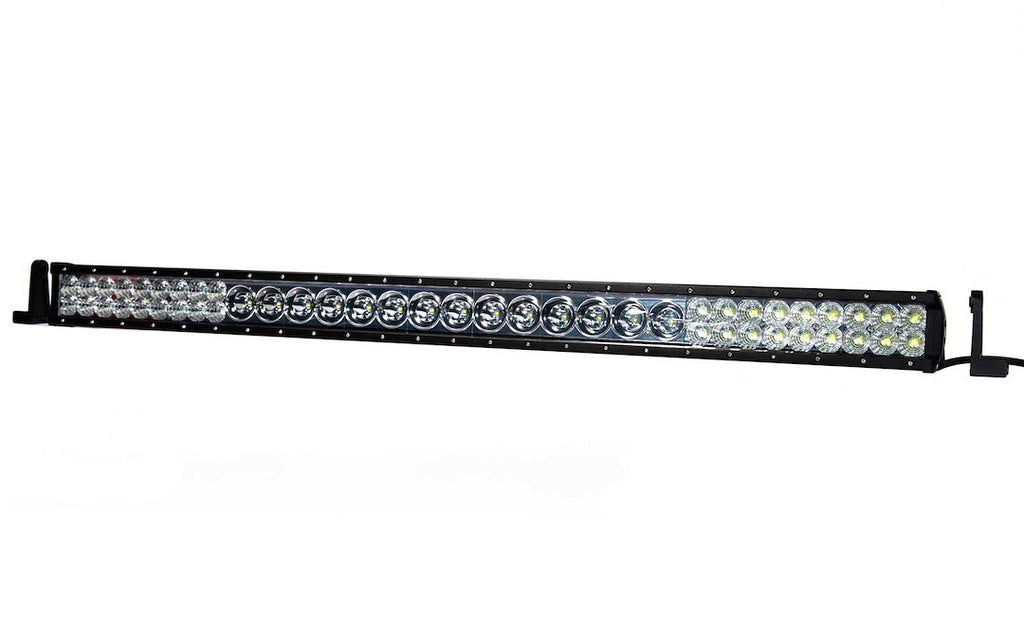

Quake LED Hybrid Series Light Bar (MPN: QUH013)

Powerful LED light bar with selectable beam patterns for versatile use.

The Quake LED Hybrid Series Light Bar is engineered for high-performance lighting in demanding environments. With a length of 41 inches, this light bar features a combination of 3 Watt and 10 Watt CREE LEDs, delivering a total output of 19840 lumens. The selectable beam patterns allow users to switch between flood and spot modes, providing tailored illumination for various tasks. Constructed with a robust black aluminum die-cast body, this light bar is designed to withstand harsh conditions while maintaining optimal functionality.

Built to meet the needs of off-road enthusiasts, the Quake Hybrid Series Light Bar is rated IP67 for waterproof and weatherproof performance. It operates efficiently within a voltage range of 10 to 30 volts, making it compatible with both 12 volt and 24 volt vehicles. The light bar is equipped with a polycarbonate lens that enhances durability and clarity, ensuring reliable performance in all weather conditions. With an operating temperature range of -40 to 140 degrees Fahrenheit, it is suitable for use in extreme climates.

The Quake Hybrid Series Light Bar is not only powerful but also energy-efficient, drawing less than 20.7 amperes. Its long lifespan of over 50,000 hours minimizes the need for frequent replacements, making it a cost-effective lighting solution. The included aluminum mounting brackets facilitate easy installation, allowing users to set up the light bar quickly and efficiently.

Features

• Black Aluminum Die-Cast Body
• Selectable Combo Beam Pattern
• Operating Voltage: 10 To 30 Volt DC
• Optimized For Use With 12 Volt And 24 Volt Vehicles
• Less Than 20.7 Ampere Draw
• Both 3 Watt And 10 Watt High Intensity CREE LEDs; Polycarbonate Lens
• Color Temperature: 6000 Kelvin; IP67 Waterproof Rating
• Operating Temperature: -40 Degrees Fahrenheit To 140 Degrees Fahrenheit; 50,000+ Hour Lifetime
• Aluminum Mounting Brackets

Specifications

• Manufacturer: Quake LED
• Manufacturer Part Number: QUH013
• Bulb Type: LED
• Style: Straight
• Length: 41 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Beam Angle (Deg): 60 Degree Flood/ 30 Degree Spot
• Lumens: 19840 Lumens
• Wattage: 248 Watt
• Voltage Rating: 10 To 30 Volt
• Bulb Specifications: 50 White CREE 3 Watt And 10 Watt LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Surface Mount
• Includes: With Wiring Harness
• Estimated Install Time (Hours): 1.5
