QA1 Stocker Star Hydraulic Shock Absorber (MPN: TS507)

Lightweight aluminum construction with adjustable valving for enhanced performance.

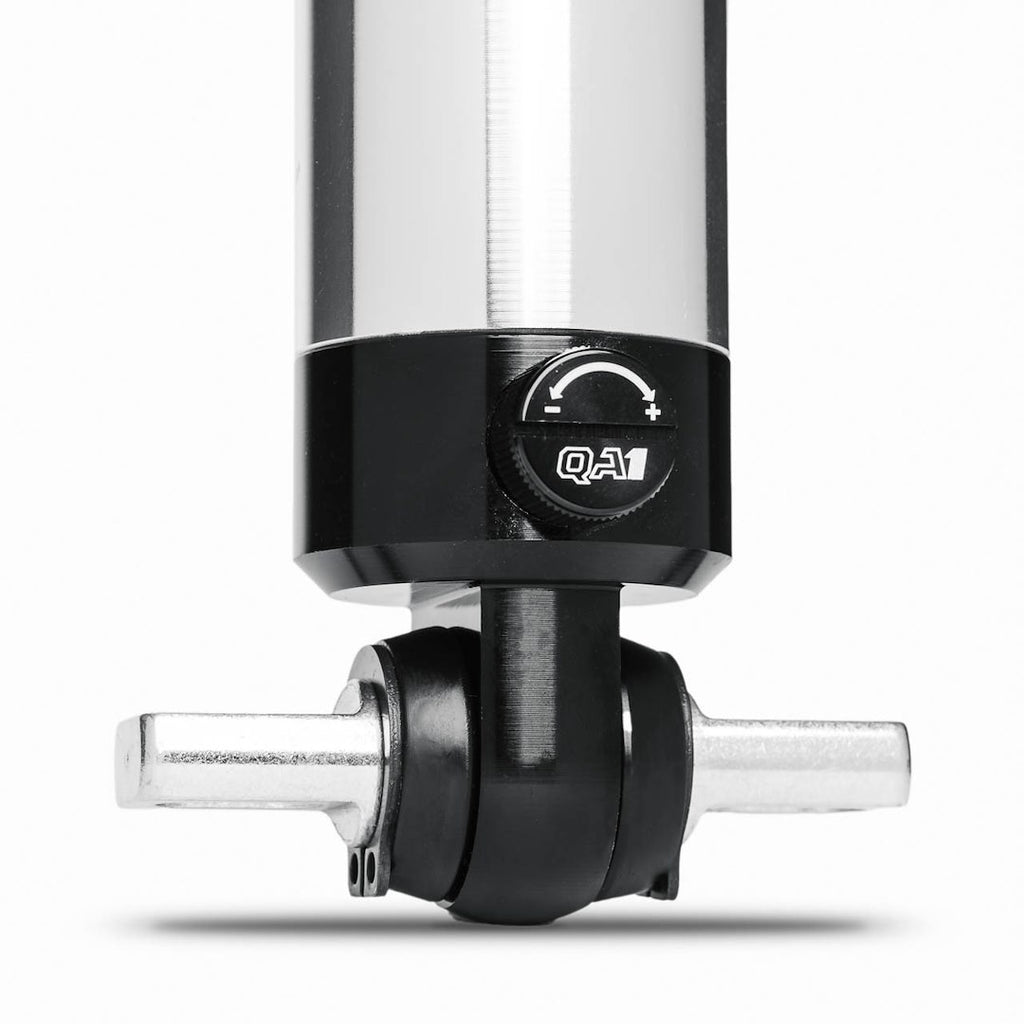

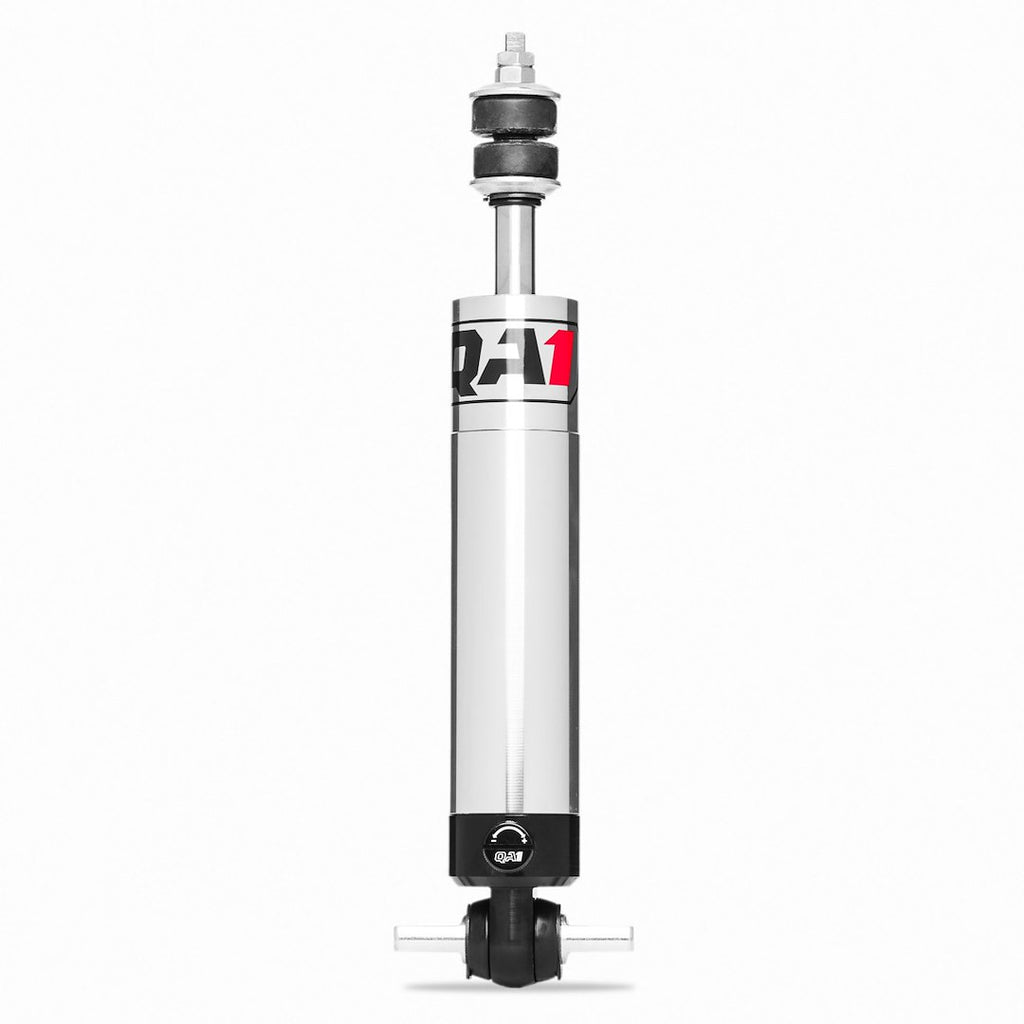

The QA1 Stocker Star Hydraulic Shock Absorber is designed for a range of GM A, B, and F-Body vehicles, including popular models like the Corvette, Camaro, and Chevelle. This shock absorber features a twin tube internal design and offers simultaneous compression and rebound valve adjustment, allowing for precise tuning of ride quality and handling characteristics. With an extended height of 14 inches and a compressed height of 9.38 inches, it is engineered for optimal performance in various driving conditions.

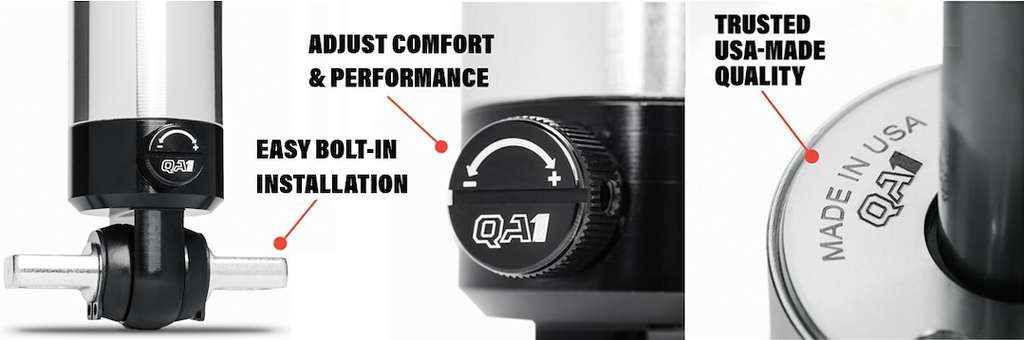

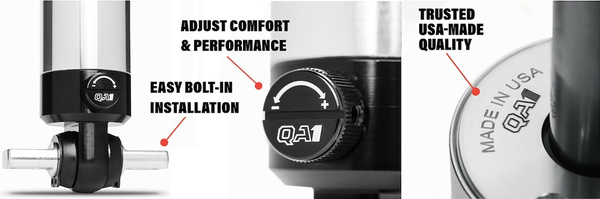

Constructed from lightweight billet aluminum, the QA1 shock absorber is not only durable but also facilitates easy installation with its bolt-in design. It is 100 percent dyno tested and serialized, ensuring consistent quality and performance. The shock is serviceable and rebuildable at authorized QA1 service centers, providing longevity and reliability for your vehicle's suspension system.

This single shock absorber is designed without a shock boot and is available in a sleek silver finish. Its adjustable valving allows for customization based on driving preferences, making it a versatile choice for automotive enthusiasts seeking enhanced handling and ride comfort.

Features

• Lightweight Billet Aluminum Construction
• 100 Percent Dyno Tested
• Certified System Is ISO 9001 Quality
• Easy To Install

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: TS507
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 14 Inch
• Compressed Length (IN): 9.38 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin

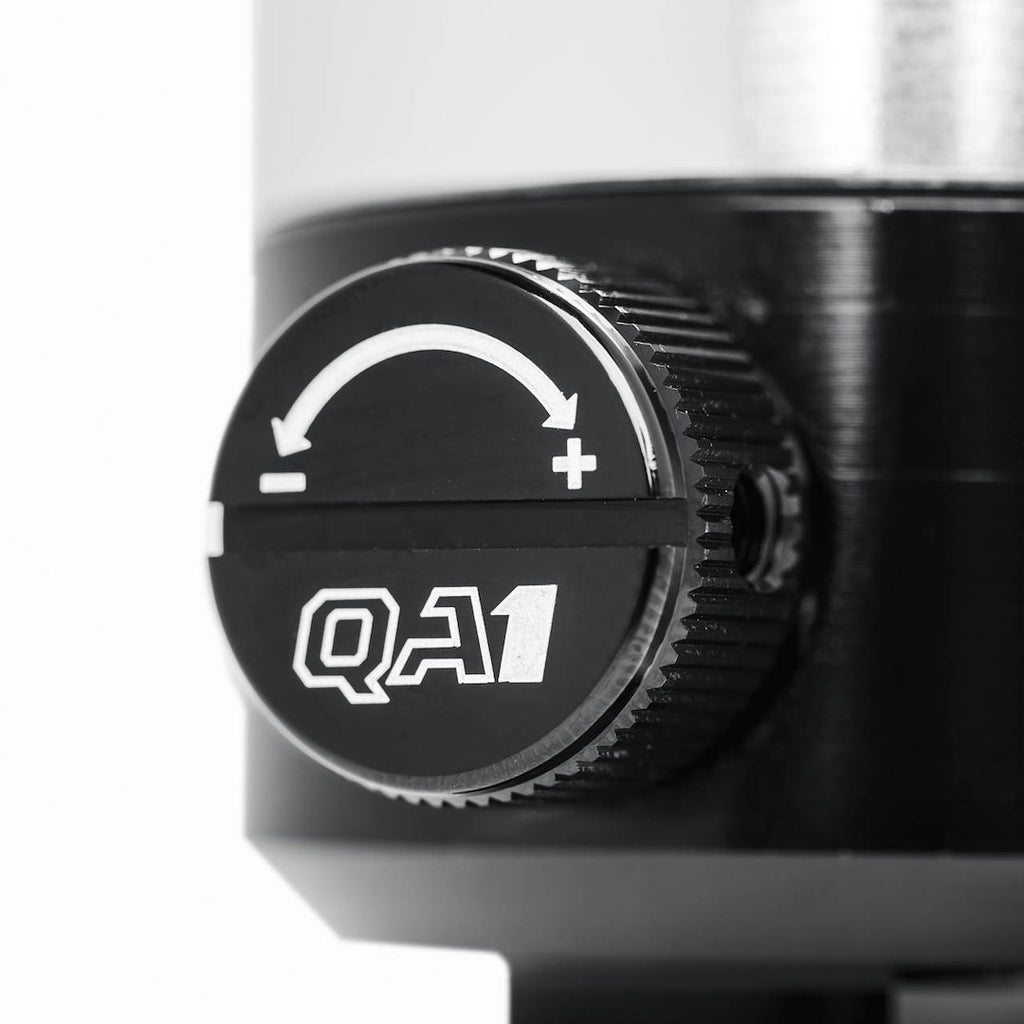

• Adjustable Valving: Yes
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Twin Tube
• Body Color: Silver
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Simultaneous Compression And Rebound Valving
• Rod Material: Steel
• Body Material: Aluminum
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1971-1973 Buick Centurion
• 1954-1958 Buick Century
• 1936-1942 Buick Century Series 60
• 1970-1983 Buick Estate Wagon
• 1965-1967 Buick Gran Sport
• 1970-1972 Buick GS
• 1968-1969 Buick GS 350
• 1968-1969 Buick GS 400
• 1970-1972 Buick GS 455
• 1959-1963 Buick Invicta
• 1959-1985 Buick LeSabre
• 1973-1981 Buick Regal
• 1988-1988 Buick Regal
• 1977-1978 Buick Riviera
• 1991-1996 Buick Roadmaster
• 1964-1967 Buick Skylark
• 1950-1958 Buick Special
• 1964-1969 Buick Special
• 1964-1972 Buick Sportwagon
• 1963-1970 Buick Wildcat
• 1936-1938 Cadillac Series 60
• 1939-1939 Cadillac Series 61
• 1941-1942 Cadillac Series 61
• 1946-1947 Cadillac Series 61
• 1950-1951 Cadillac Series 61
• 1941-1942 Cadillac Series 63
• 1959-1975 Chevrolet Bel Air
• 1958-1972 Chevrolet Biscayne
• 1969-1970 Chevrolet Brookwood
• 1970-1981 Chevrolet Camaro
• 1966-1996 Chevrolet Caprice
• 1964-1973 Chevrolet Chevelle
• 1963-1982 Chevrolet Corvette
• 1964-1987 Chevrolet El Camino
• 1959-1985 Chevrolet Impala
• 1994-1996 Chevrolet Impala
• 1969-1970 Chevrolet Kingswood
• 1973-1976 Chevrolet Laguna
• 1964-1964 Chevrolet Malibu
• 1967-1967 Chevrolet Malibu
• 1973-1983 Chevrolet Malibu
• 1970-1988 Chevrolet Monte Carlo
• 1969-1970 Chevrolet Townsman
• 1978-1987 GMC Caballero
• 1971-1977 GMC Sprint
• 1936-1940 LaSalle Series 50
• 1964-1971 Oldsmobile 442
• 1950-1950 Oldsmobile 88
• 1954-1956 Oldsmobile 88
• 1964-1981 Oldsmobile Cutlass
• 1978-1984 Oldsmobile Cutlass Calais
• 1980-1983 Oldsmobile Cutlass Cruiser
• 1987-1988 Oldsmobile Cutlass Cruiser
• 1975-1980 Oldsmobile Cutlass Salon
• 1985-1987 Oldsmobile Cutlass Salon
• 1967-1987 Oldsmobile Cutlass Supreme
• 1976-1976 Oldsmobile Cutlass Tiara
• 1967-1968 Oldsmobile Delmont 88
• 1965-1985 Oldsmobile Delta 88
• 1958-1966 Oldsmobile Dynamic 88
• 1957-1964 Oldsmobile Fiesta
• 1939-1939 Oldsmobile G-39
• 1957-1957 Oldsmobile Golden Rocket 88
• 1964-1966 Oldsmobile Jetstar 88
• 1964-1965 Oldsmobile Jetstar I
• 1936-1936 Oldsmobile L-36
• 1937-1937 Oldsmobile L-37
• 1938-1938 Oldsmobile L-38
• 1939-1939 Oldsmobile L-39
• 1940-1940 Oldsmobile Series 70
• 1941-1942 Oldsmobile Series 76
• 1946-1950 Oldsmobile Series 76
• 1941-1942 Oldsmobile Series 78
• 1946-1949 Oldsmobile Series 78
• 1949-1949 Oldsmobile Series 88
• 1961-1966 Oldsmobile Starfire
• 1951-1964 Oldsmobile Super 88
• 1964-1972 Oldsmobile Vista Cruiser
• 1961-1970 Pontiac Bonneville
• 1978-1981 Pontiac Bonneville
• 1958-1958 Pontiac Catalina
• 1961-1970 Pontiac Catalina
• 1978-1981 Pontiac Catalina
• 1940-1940 Pontiac Deluxe Series 26
• 1940-1940 Pontiac Deluxe Series 28
• 1967-1970 Pontiac Executive
• 1970-1981 Pontiac Firebird
• 1973-1975 Pontiac Grand Am
• 1978-1981 Pontiac Grand LeMans
• 1962-1987 Pontiac Grand Prix
• 1971-1975 Pontiac Grandville
• 1964-1973 Pontiac GTO
• 1964-1972 Pontiac LeMans
• 1978-1981 Pontiac LeMans
• 1983-1986 Pontiac Parisienne
• 1987-1989 Pontiac Safari
• 1959-1966 Pontiac Star Chief
• 1941-1942 Pontiac Streamliner
• 1946-1951 Pontiac Streamliner
• 1964-1970 Pontiac Tempest
• 1941-1941 Pontiac Torpedo
• 1960-1961 Pontiac Ventura

Technical Documents

• DS_SHOCK_INSTALL_REV_03-29-18.pdf
