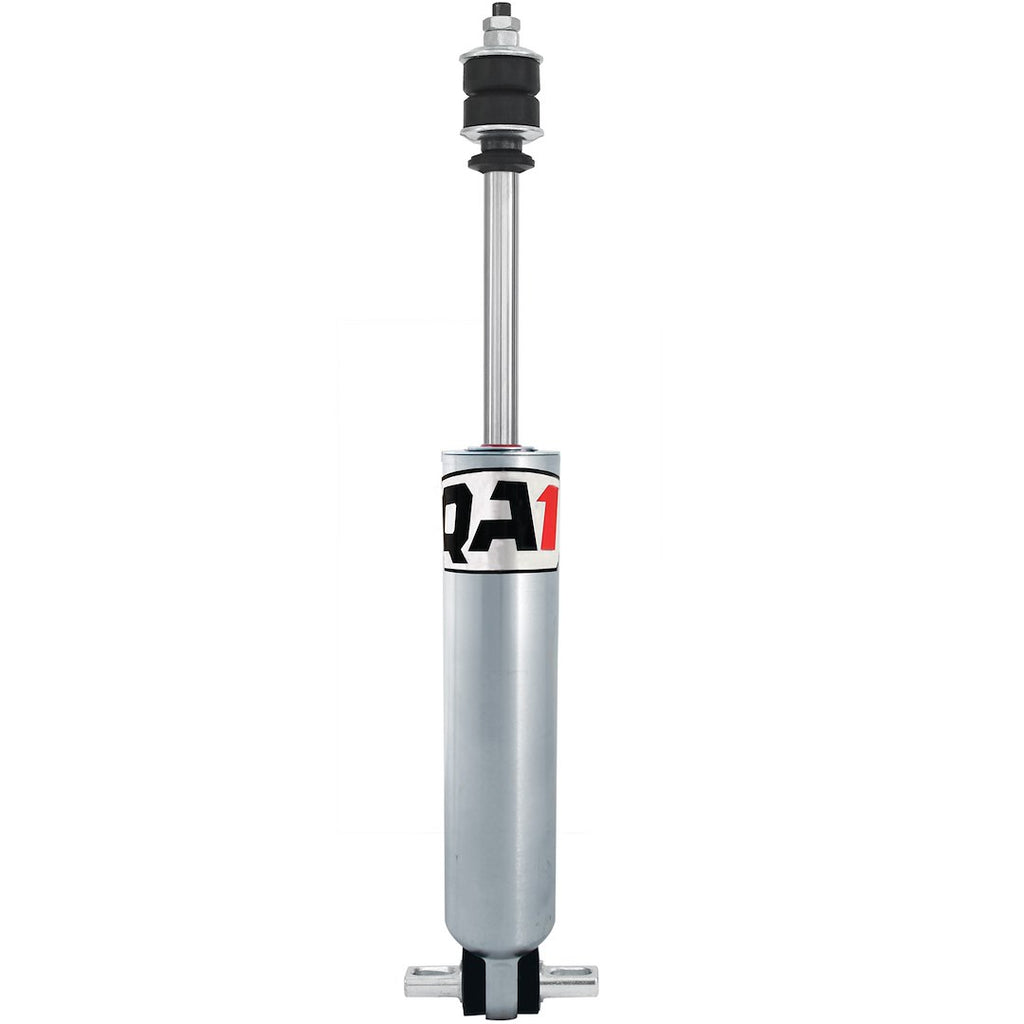

QA1 Shock Absorber 27 Series (MPN: 27A949-1B)

High-performance hydraulic mono tube shock for racing applications.

The QA1 Shock Absorber 27 Series is engineered for high-performance racing, featuring a sealed hyperscrew hydraulic mono tube design. With an extended height of 14 inches and a compressed height of 9.17 inches, this shock is tailored for specific vehicle applications, ensuring optimal fit and function. The electroless nickel plated body provides exceptional corrosion resistance and durability, making it suitable for various racing conditions.

This shock absorber incorporates advanced deflective disc technology, allowing for precise control of suspension dynamics at low shaft speeds while minimizing extreme forces at high velocities. The non-fading performance is achieved through a proprietary blend of specially engineered oil, ensuring consistent damping throughout the race. Additionally, the shock is racer rebuildable and revalveable, offering the flexibility to adjust settings according to individual driving preferences.

Designed with a stud upper mount and a T-bar lower mount, the QA1 27 Series shock is easy to install and compatible with popular stock mount options. Its linear valving enhances vehicle stability, allowing drivers to maintain better control and feel during races. The robust steel construction and silver finish further enhance its reliability and aesthetic appeal.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27A949-1B
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 14 Inch
• Compressed Length (IN): 9.17 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 9 Compression And Number 1 Rebound Axle Damper Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
