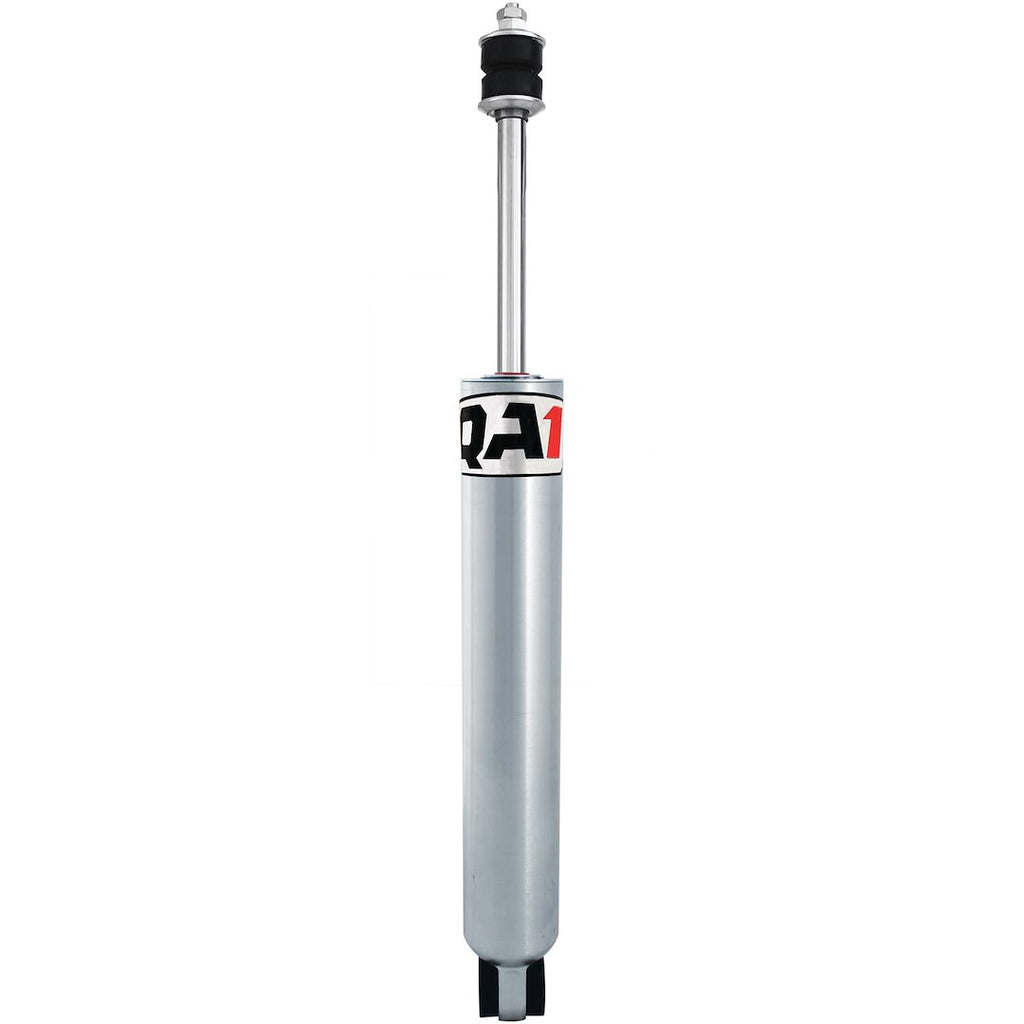

QA1 Shock Absorber 27 Series (MPN: 27A883-5M)

High-performance sealed hydraulic mono tube shock for racing applications.

The QA1 Shock Absorber 27 Series is engineered for high-performance racing, featuring a sealed hyperscrew hydraulic mono tube design. With an extended height of 21.38 inches and a compressed height of 12.8 inches, this shock is designed for specific vehicle applications, ensuring a precise fit and optimal performance. The shock incorporates advanced deflective disc technology, allowing for customizable valve settings to enhance driving dynamics and handling characteristics.

Constructed with an electroless nickel plated body, the 27 Series offers superior corrosion resistance and durability, making it suitable for various racing environments. The non-adjustable shock features number 3 compression and number 5 rebound linear valving, providing a stable ride and improved driver feedback. Additionally, the shock is racer rebuildable and revalveable, promoting longevity and repeatability in performance.

This single shock unit is designed without shock boots and includes a stud upper mount and loop lower mount for straightforward installation. The robust steel construction and premium oil blend used in the shock prevent fading, ensuring consistent performance throughout its use. The QA1 Shock Absorber 27 Series is a reliable choice for racers seeking to enhance their vehicle's suspension system.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27A883-5M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21.38 Inch
• Compressed Length (IN): 12.8 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 3 Compression And Number 5 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1979-1983 Ford Mustang
