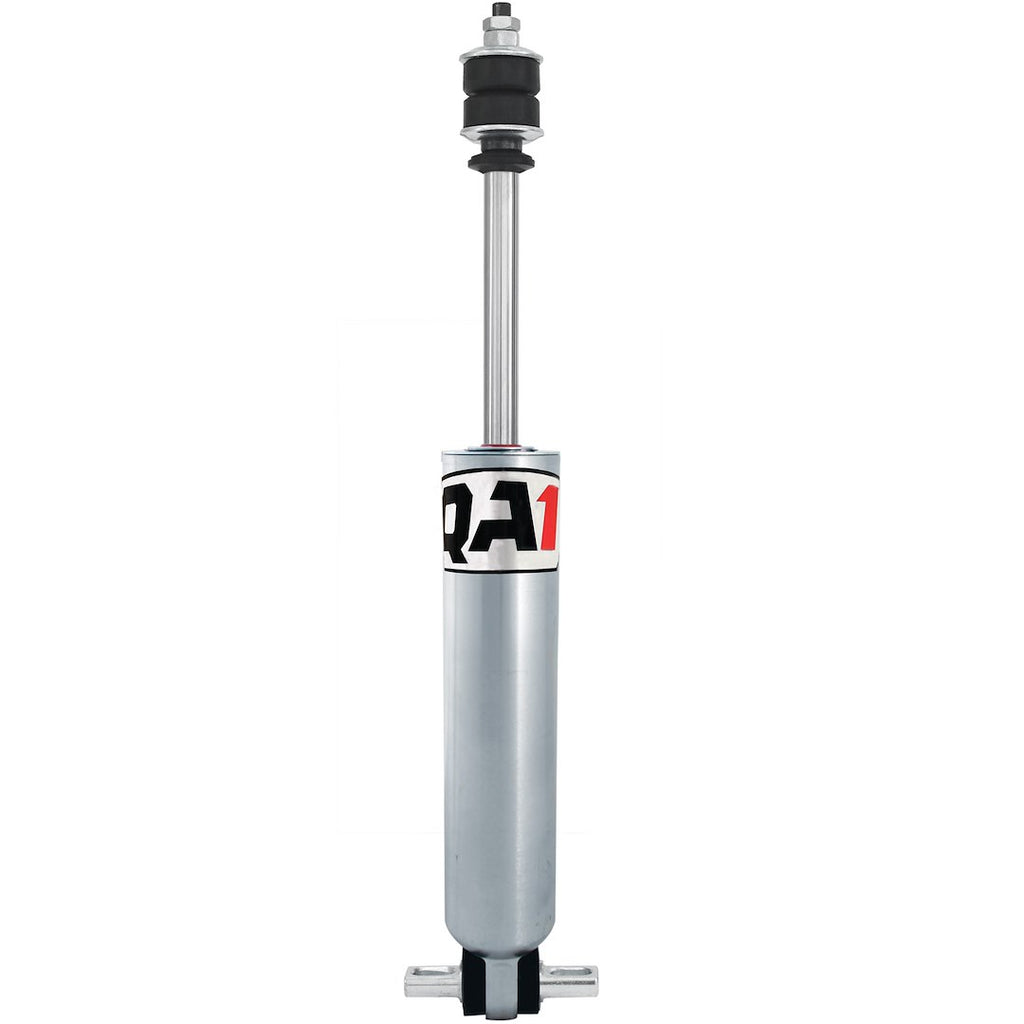

QA1 Shock Absorber 27 Series (MPN: 27945-3)

High-performance hydraulic mono tube shock for racing applications.

The QA1 Shock Absorber 27 Series is engineered for high-performance racing, featuring a hydraulic mono tube design that ensures optimal handling and stability. With an extended height of 14 inches and a compressed height of 9.17 inches, this shock is designed for specific vehicle applications, providing a precise fit and easy installation. The electroless nickel plated body offers superior corrosion resistance and durability, making it suitable for various racing conditions.

This shock absorber incorporates advanced deflective disc technology, allowing for customizable valve settings to meet specific driving preferences. The non-fading performance is achieved through a proprietary blend of oil, ensuring consistent damping without loss of performance over time. Additionally, the shock is racer rebuildable and revalveable, promoting longevity and repeatability in performance.

The QA1 27 Series features a stud upper mount and a T-bar lower mount, designed for secure attachment and stability during operation. With its linear valving, drivers can experience enhanced feedback from the vehicle, contributing to improved control and handling dynamics. This shock absorber is a reliable choice for racers seeking to enhance their vehicle's suspension system.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27945-3
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 14 Inch
• Compressed Length (IN): 9.17 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 5 Compression And Number 3 Rebound Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
