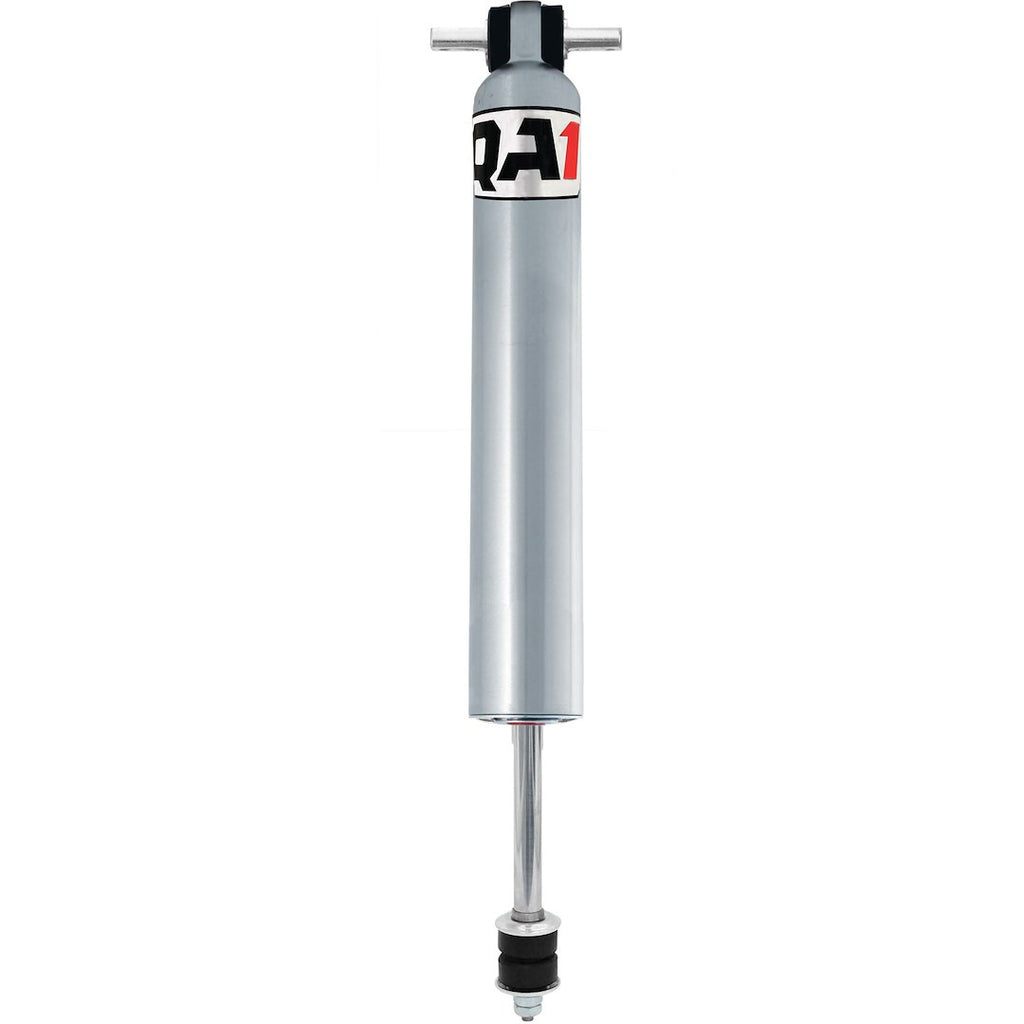

QA1 Shock Absorber 27 Series (MPN: 27585M)

High-performance hydraulic mono tube shock for racing applications.

The QA1 Shock Absorber 27 Series is engineered for high-performance racing, featuring a hydraulic mono tube design that ensures optimal handling and stability. With an extended height of 21.38 inches and a compressed height of 12.8 inches, this shock is designed for specific vehicle applications, providing a precise fit and easy installation. The electroless nickel plated body offers superior corrosion resistance and durability, making it suitable for various racing conditions.

This shock absorber utilizes advanced deflective disc technology, allowing for customizable valve settings to meet specific driving preferences. The linear valving system enhances vehicle stability and driver feedback, ensuring a responsive driving experience. Additionally, the non-fading proprietary oil blend maintains performance consistency, preventing fade during intense racing scenarios.

Designed for racer rebuildability and revalveability, the QA1 27 Series shock absorber allows for maintenance and adjustments, extending its lifespan and performance capabilities. The shock features a T-bar upper mount and stud lower mount configuration, ensuring secure attachment and reliability on the track.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27585M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21.38 Inch
• Compressed Length (IN): 12.8 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Stud
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 5 Compression And Number 5 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
