Upgrade your Chevy C10 with advanced coil-over technology for enhanced stability.

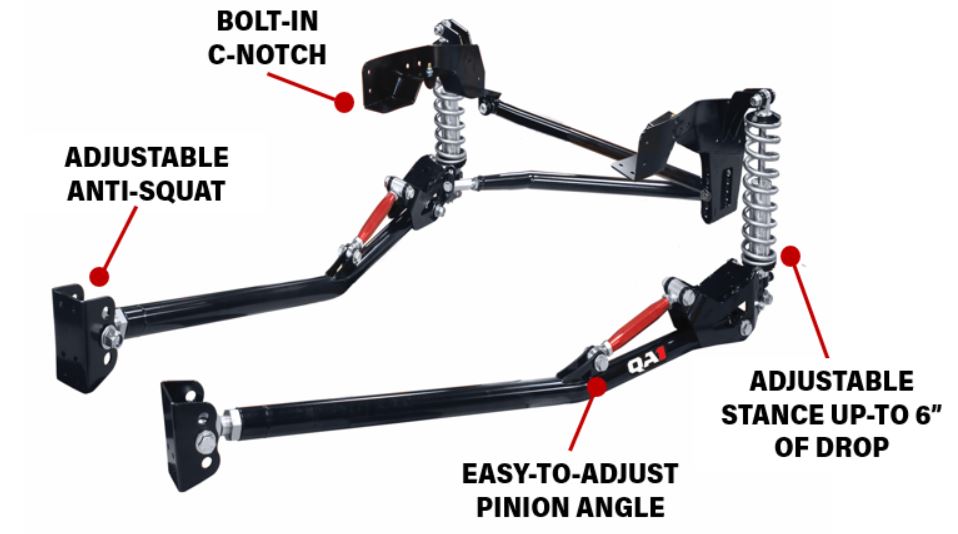

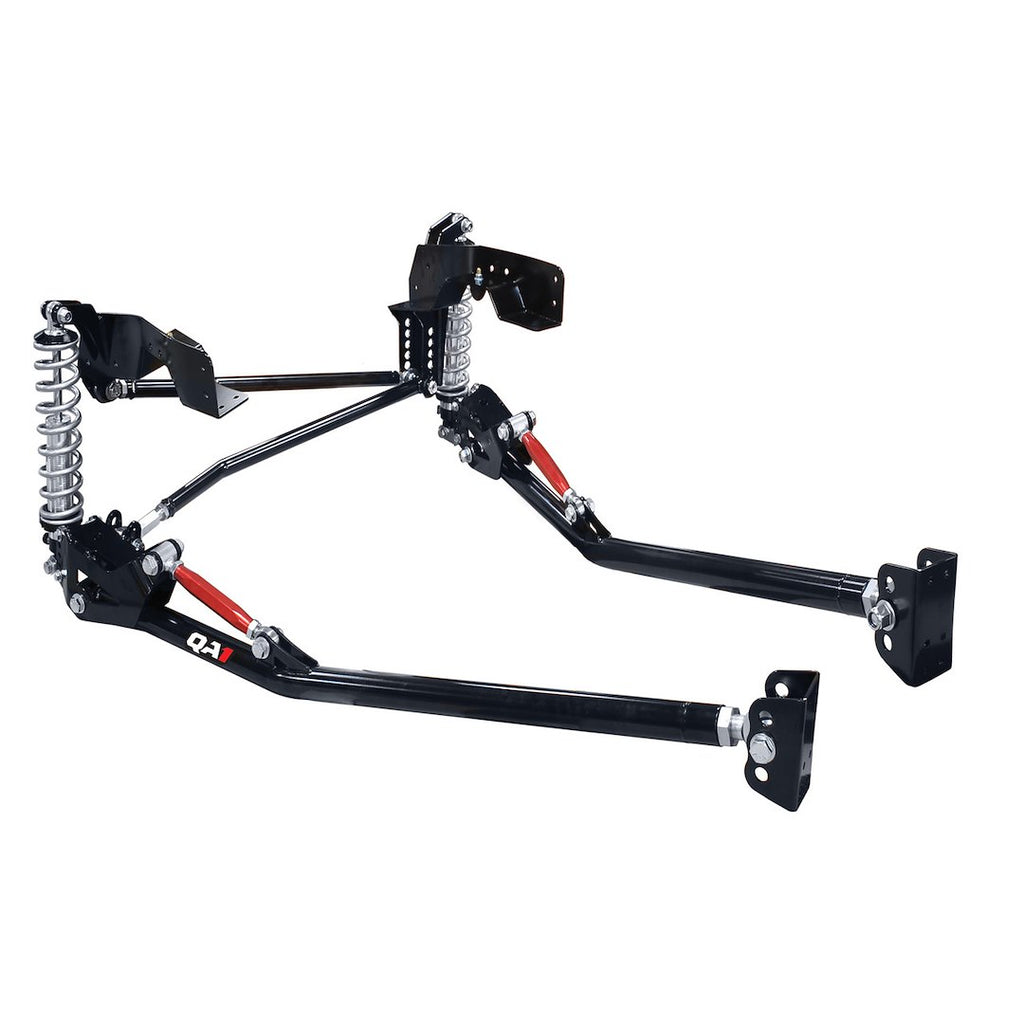

The QA1 Performance Suspension Kit is engineered to transform the rear suspension of Chevy C10 trucks originally equipped with coil springs into a more advanced coil-over system. This innovative design relocates the coil-overs closer to the wheel, enhancing cornering stability and accommodating aftermarket rear fuel tanks. The kit replaces factory truck arms with robust 7 gauge DOM steel tubular arms that feature integrated pinion angle adjustment, eliminating the need for angled shims and ensuring precise alignment.
With adjustable length truck arms, users can customize the wheelbase to their specifications, while the full-length adjustable panhard bar corrects roll center geometry to achieve the desired drop. This system is compatible with QA1 Pro Coil Systems and includes options for single or double adjustable Pro Coil shocks, allowing for tailored valving to meet specific driving needs. The shocks are available with three high travel spring rates and provide ride height adjustability, ensuring optimal performance on various terrains.
The QA1 Performance Suspension Kit is available in two configurations: one allows for a drop of up to 4 inches without frame notching, while the other includes a bolt-in frame c-notch for a total drop of up to 6 inches. This comprehensive kit is designed for durability and performance, making it a valuable upgrade for any Chevy C10 enthusiast.
Features
- Features X Series Self-Lubricating Rod Ends
- Tubular Truck Arms Made With 7 Gauge DOM Steel Provide Integrated Pinion Angle Adjustment, Eliminating The Need For Angled Shims
- Set Wheelbase With Adjustable Length Truck Arms
- Full-Length, Adjustable Panhard Bar With Multiple Mounting Locations Corrects Roll Center Geometry To Accommodate The Amount Of Drop
- Adjustable Mounts Allow For Optimum Anti-Squat
Specifications
- Manufacturer: QA1
- Manufacturer Part Number: R210-200
- Coil Spring Quantity: Rear
- Includes Leaf Springs: No
- Includes Leaf Spring Bushings: No
- Includes Tie Rod Ends: Yes
- Includes Trailing Arms: Yes
- Includes Torque Arm: No
- Includes Panhard Bar: Yes
- Includes Chassis Stiffener: No
- Includes Calipers: No
- Includes Rotors: No
- Includes Brake Pads: No
- Includes Brake Lines: No
- Includes Mounting Hardware: Yes
Compatibility / Fit
- 1963-1967 Chevrolet C10 Panel
- 1963-1972 Chevrolet C10 Pickup
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
