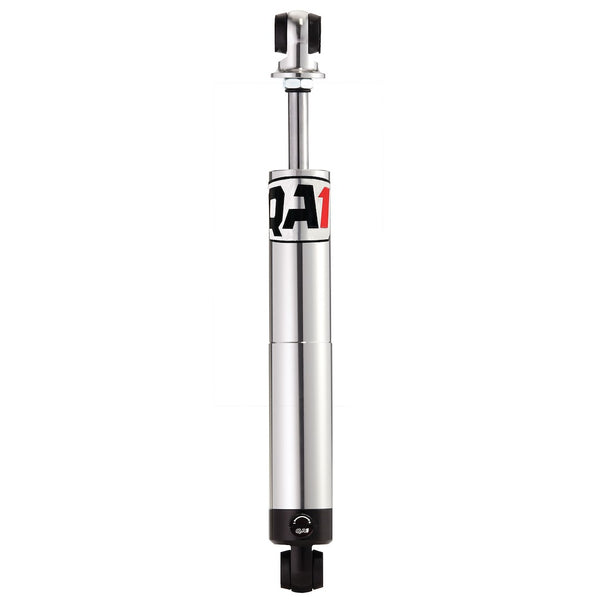

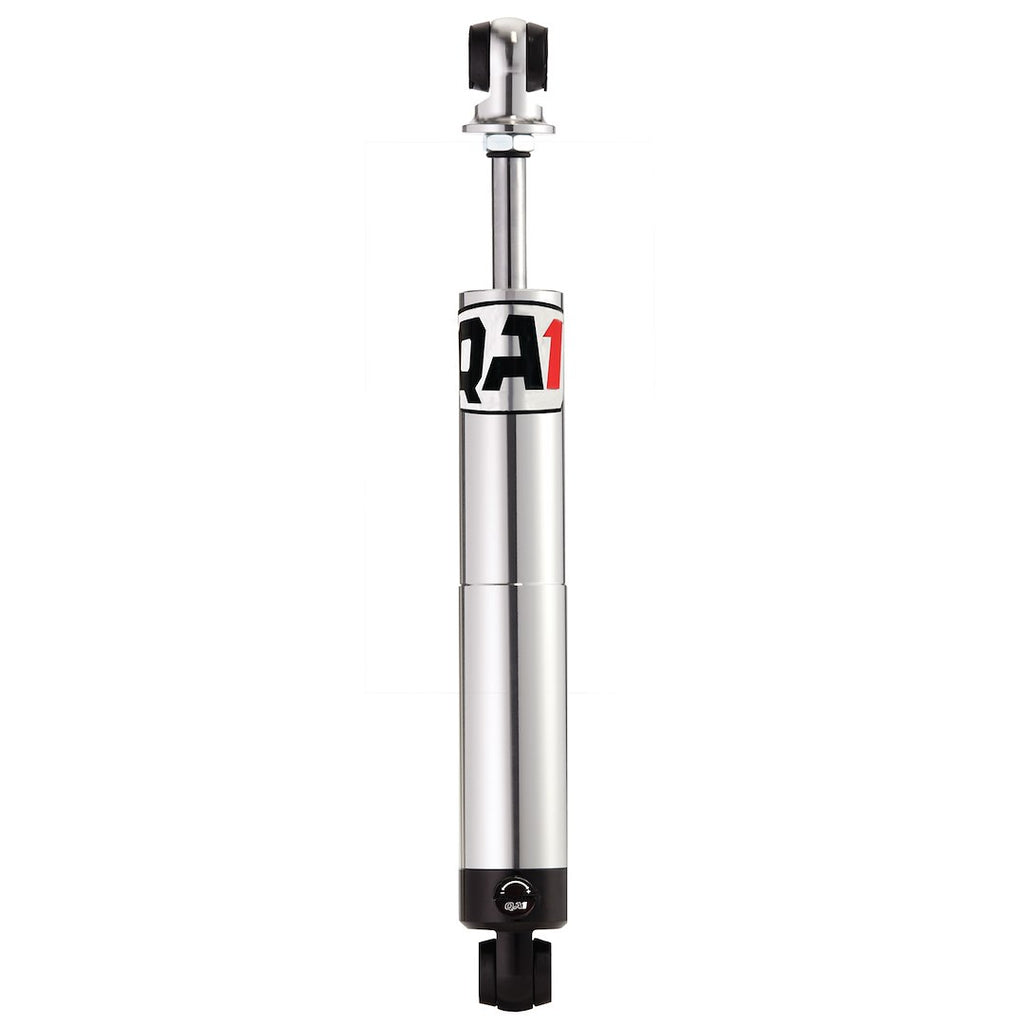

QA1 Hydraulic Shock Absorber (MPN: TS302)

Advanced twin tube design with adjustable valving for enhanced performance.

The QA1 Hydraulic Shock Absorber features a twin tube design that allows for simultaneous compression and rebound valve adjustment, providing improved handling and ride quality. With an extended length of 11.13 inches and a compressed length of 8.75 inches, this shock absorber is engineered for optimal performance in various applications. Precision machining ensures optimal piston operation throughout the travel range, while each unit is 100 percent dyno tested and serialized for quality assurance.

Constructed from durable aluminum and steel materials, the shock absorber is designed to withstand rigorous conditions. The eyelet mounting style at both the upper and lower ends facilitates easy installation and compatibility with a range of vehicles. The adjustable valving allows for fine-tuning of the shock's response, making it suitable for semi-universal applications. This product is an essential component for those seeking to enhance their vehicle's suspension system.

Features

• Precision Machined For Optimal Piston Operation Throughout Travel
• 100 Percent Dyno Tested And Serialized
• Piston Rides Inside A Compression Tube Which Is Spaced Slightly In From The Wall Of The Shock Body

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: TS302
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 11.13 Inch
• Compressed Length (IN): 8-3/4 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Twin Tube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Simultaneous Compression And Rebound Valving
• Rod Material: Steel
• Body Material: Aluminum
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• DS_SHOCK_INSTALL_REV_03-29-18.pdf
