Advanced shock technology for high performance racing and handling applications.

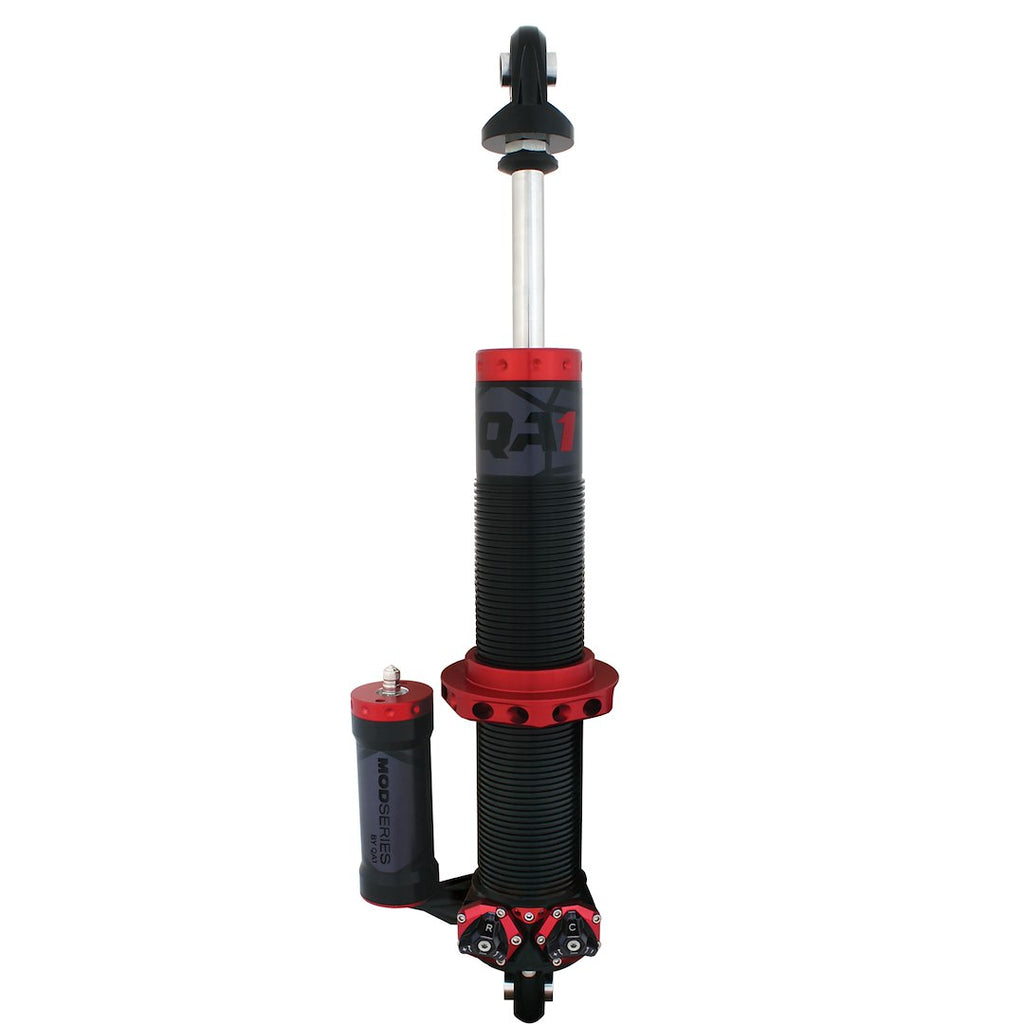

The QA1 Coil Over Shock Absorber is engineered to meet the rigorous demands of high performance drag racing and pro-touring vehicles. This shock absorber features independent compression and rebound valve adjustment, allowing for precise tuning to adapt to varying track conditions. With a ride height adjustable design, it offers flexibility in setup, ensuring optimal performance in diverse racing scenarios.
Equipped with QuickTune Technology, the MOD Series shocks can be revalved in minutes without removal from the vehicle, significantly reducing downtime. The 24 click independent adjustment system enhances driver control and feel, accommodating up to 1,600 pounds of force. The large solid piston design improves responsiveness, while the high-speed and low-speed valving adjustments provide tailored performance during impact events and cornering maneuvers.
The shock's indexable base eyelet allows for multiple mounting positions, optimizing knob access and enhancing installation flexibility. With a robust gas charged design and included mounting hardware, the QA1 Coil Over Shock Absorber is a reliable choice for racers seeking to enhance their vehicle's handling and performance.
Features
- Features QuickTune Technology, Modular Valve Packs That Allow For Completely Revalving The Shock Without Having To Remove It From The Car
- 24 Click Independent Compression And Rebound Adjustment With Low-Speed Bleed
- Large Solid Piston For Improved Driver Feel And Control With Up To 1,600 Pounds Force
- High-Speed Valving Adjustment Relates To Shock Operation During Impact Events, Like Hitting A Pothole Or Curb
- Low-Speed Valving: Adjusts Ride Quality And Weight Transfer On Corner Entry Or Exit
- Indexable Base Eyelet: Multiple Mounting Position To Optimize Knob Access And Provide More Mounting Flexibility
Specifications
- Manufacturer: QA1
- Manufacturer Part Number: M511PL
- Adjustable: Yes
- Upper Mounting Type: Eyelet
- Lower Mounting type: Stud
- Extended Height (IN): 16-7/8 Inch
- Compressed Height (IN): 11-1/2 Inch
- Valving Type: Independent Compression And Rebound Valve Adjustment
- Shock Type: Gas Charged
- Shock Body Color: Black/ Red
- Spring Height (IN): 12 Inch
- Spring Color: Black
- Includes Mounting Hardware: Yes
