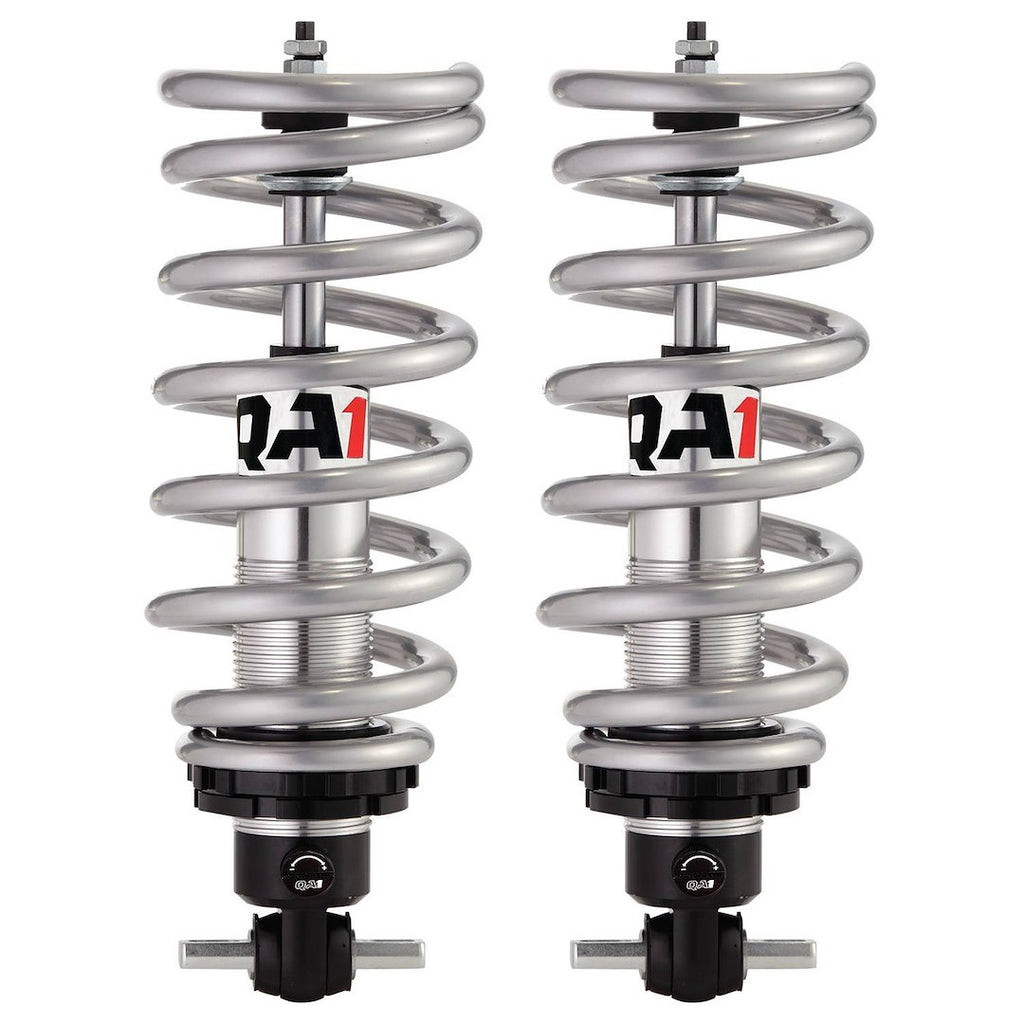

QA1 Coil Over Shock Absorber (MPN: GS502-15275)

Engineered for 4th Gen GM F-Body Vehicles with Adjustable Features

The QA1 Coil Over Shock Absorber is specifically designed for 4th generation GM F-body vehicles, providing a tailored suspension solution. This system features simultaneous compression and rebound valve adjustment, allowing for precise tuning of ride characteristics to match various driving styles. With an extended height of 19.63 inches and a compressed height of 14.5 inches, the adjustable ride height enables users to achieve the desired stance and optimize weight balance for enhanced handling performance.

Constructed from lightweight billet aluminum, these coil-over shocks reduce unsprung weight and improve responsiveness, making them suitable for a range of applications including drag racing, street performance, and autocross. The American-made high travel springs are designed with fewer coils and a smaller wire diameter, resulting in increased travel and optimized suspension dynamics. Each shock absorber is 100 percent dyno tested and serialized, ensuring reliability and performance.

The QA1 system includes two shock absorbers, specially designed springs, and all necessary mounting hardware. With a spring rate of 275 pounds per inch and a fully threaded body, users can easily adjust the ride height to achieve superior handling and performance. This coil-over system is a versatile choice for enthusiasts looking to enhance their vehicle's suspension capabilities.

Features

• Lightweight Billet Aluminum Coil-Over Shocks
• Ride Height Adjustable
• 100 Percent Dyno Tested And Serialized
• Used In Drag Racing, Street Performance, Autocross, Road Racing And Street Rod Applications

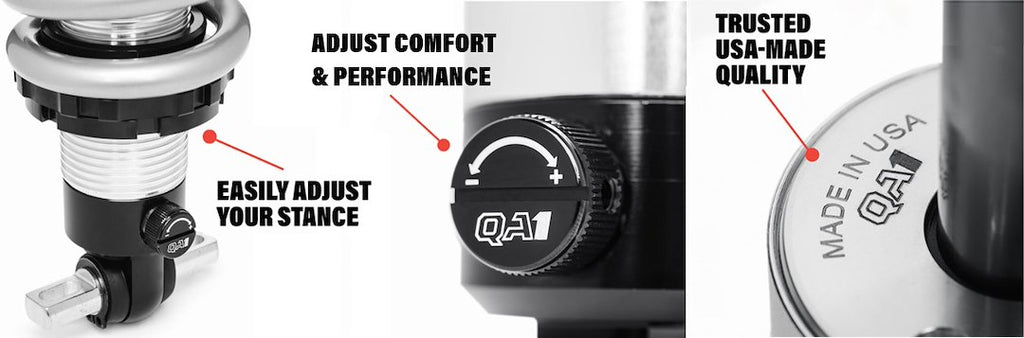

• Utilizes A Fully Threaded Body That Allows You To Adjust Your Ride Height For The Perfect Stance Or To Finely Tune The Weight Balance For Superior Handling
• Reduces Unsprung Weight And React Faster, Optimizing Suspension Performance

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: GS502-15275
• Adjustable: Yes
• Upper Mounting Type: Stud
• Lower Mounting type: Cross Pin
• Extended Height (IN): 19.63 Inch
• Compressed Height (IN): 14-1/2 Inch
• Quantity: Set Of 2

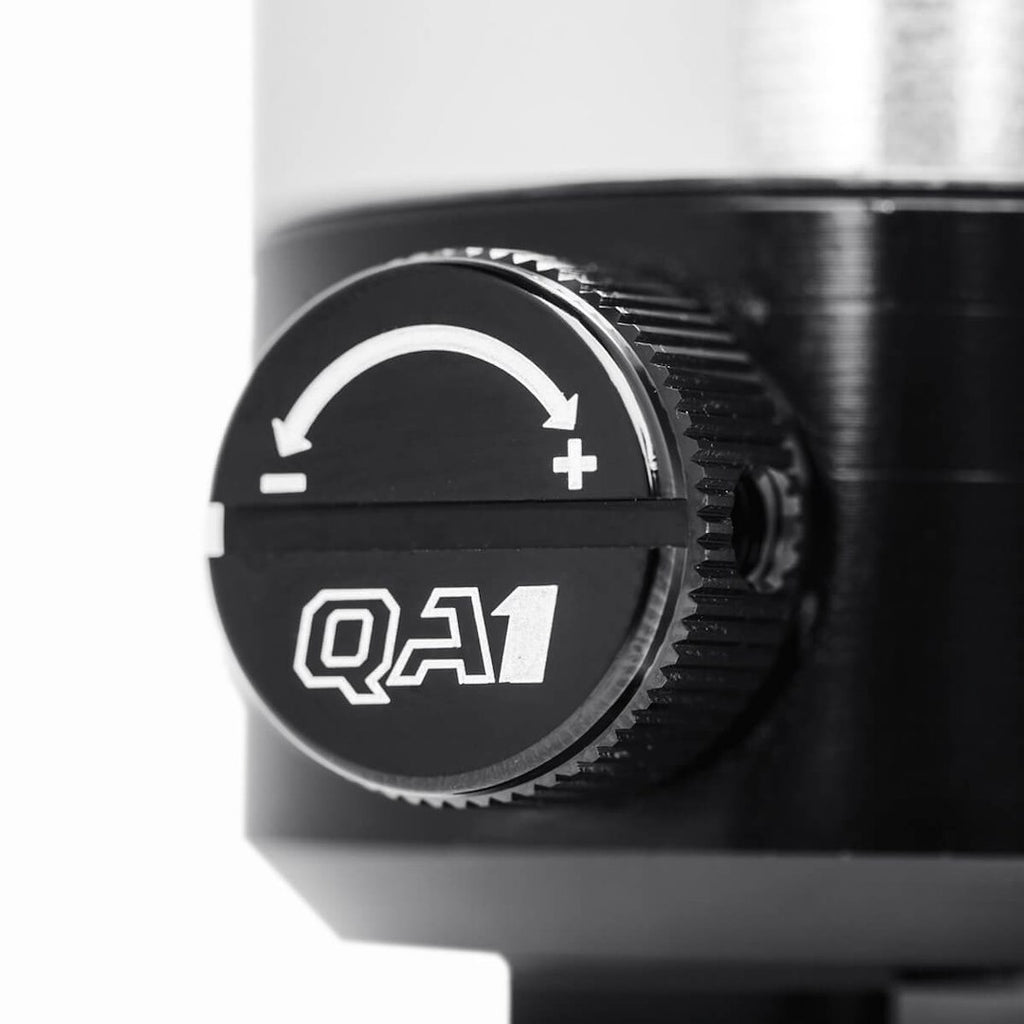

• Valving Type: Simultaneous Compression And Rebound Valve Adjustment
• Shock Type: Twin-Tube
• Shock Body Color: Silver
• Shock Body Material: Aluminum
• Spring Height (IN): 15 Inch
• Spring Rate: 275 Pounds Per Inch
• Spring Style: Single Flat End
• Spring Finish: Powder Coated
• Spring Color: Silver
• Spring Material: Silicon Steel
• Includes Mounting Hardware: Yes

Compatibility / Fit

• 1993-2002 Chevrolet Camaro
• 1993-2002 Pontiac Firebird

Technical Documents

• 9919-173_REV_Pro_Coil.pdf
