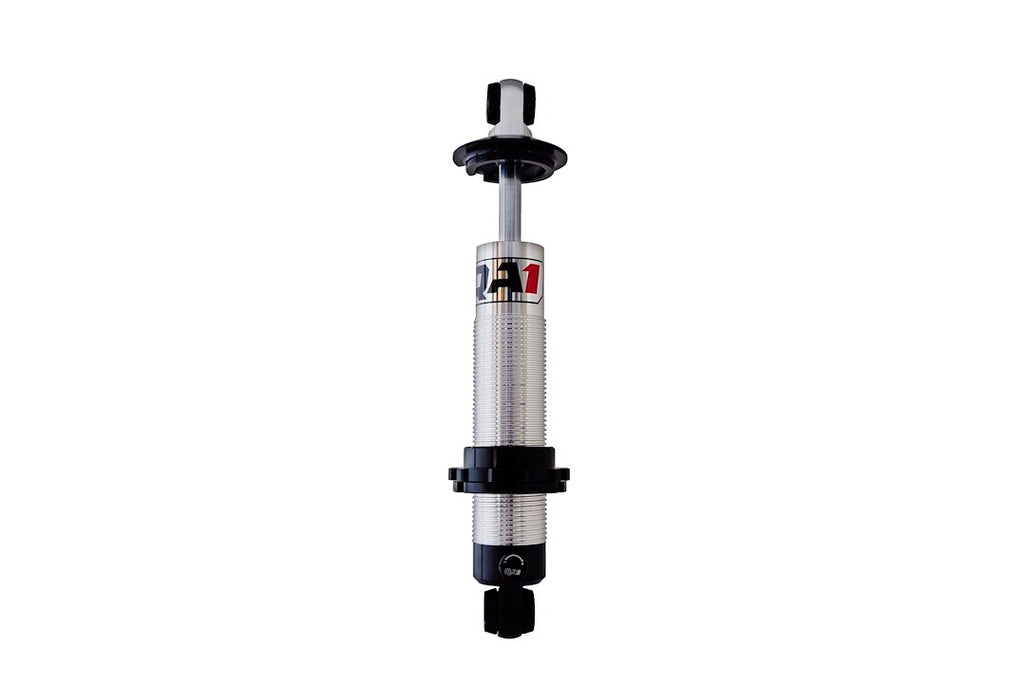

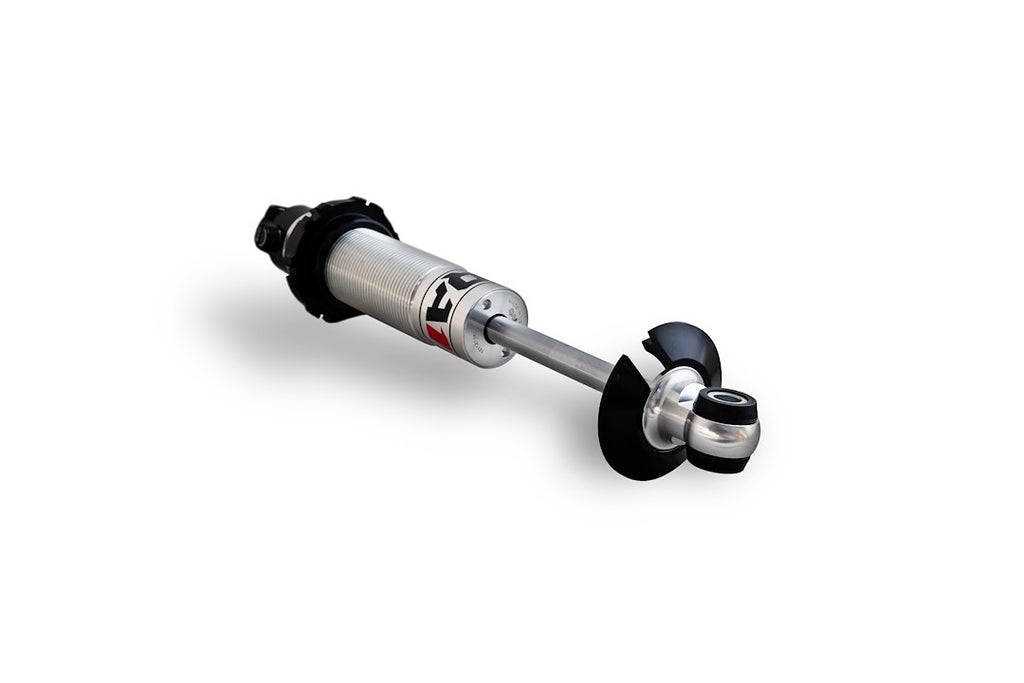

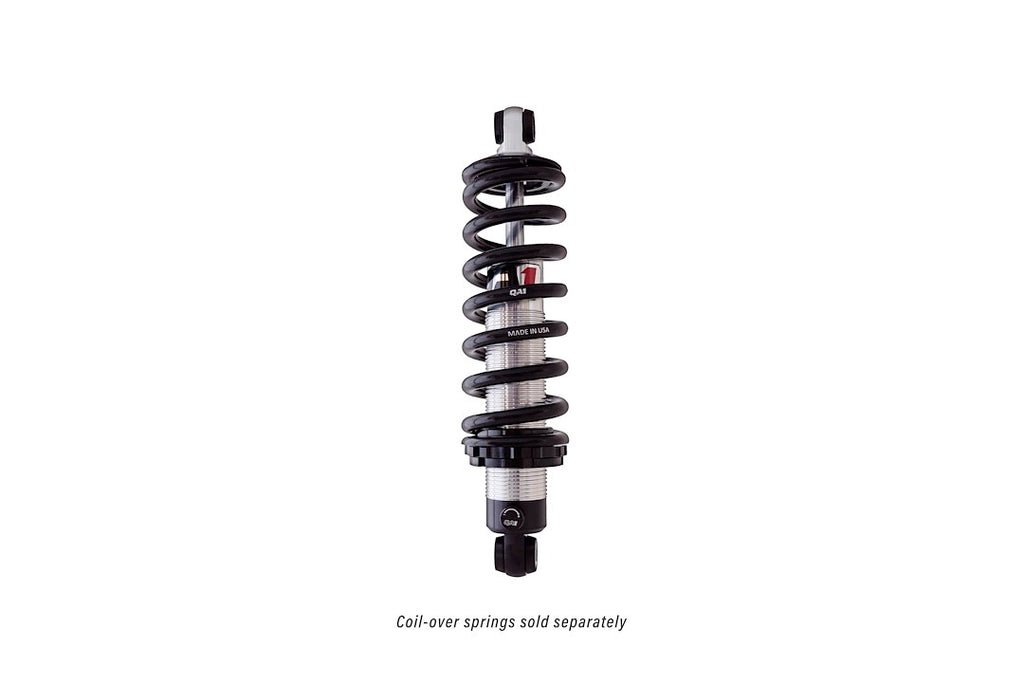

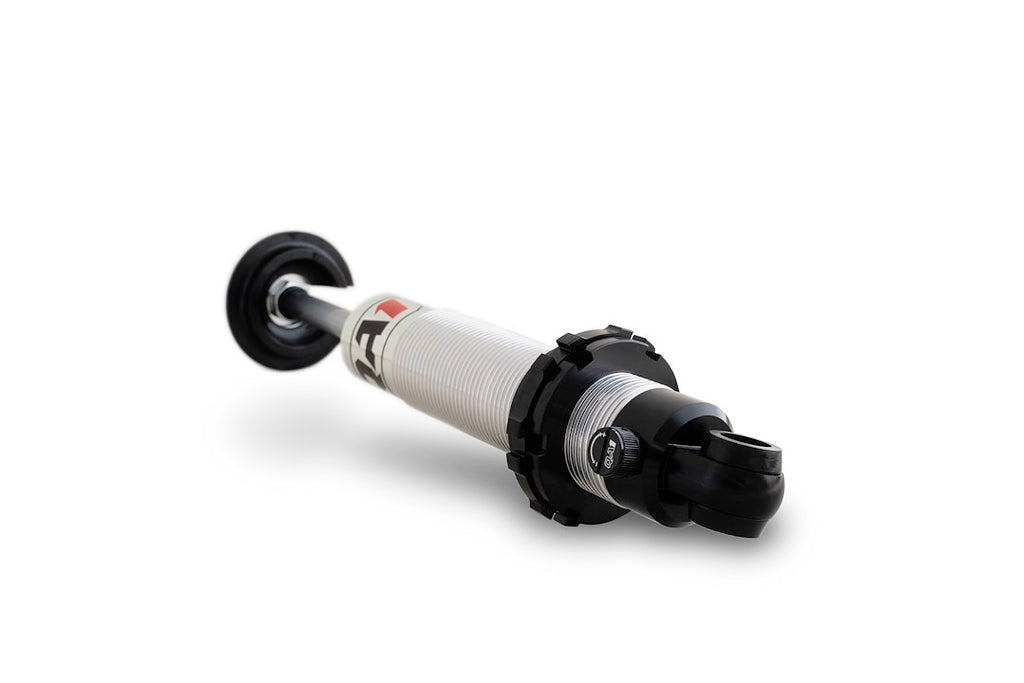

QA1 Coil Over Shock Absorber (MPN: DS902)

Advanced shock absorber with adjustable ride height and valving features.

The QA1 Coil Over Shock Absorber is engineered for performance and versatility, featuring simultaneous compression and rebound valve adjustment. With an extended height of 23-3/4 inches and a compressed height of 15 inches, this shock absorber allows for precise ride height adjustments to suit various applications. The aluminum body is bright anodized for enhanced durability and aesthetic appeal, while the deflective disc valving ensures consistent performance under varying conditions.

This shock absorber is designed with a precision machined piston that incorporates a P.T.F.E piston band, improving the seal between the piston and cylinder wall. This design enhances valving consistency and increases the overall durability of the shock. The 5/8 inch centerless ground, hard chrome plated piston rod further eliminates flex, contributing to improved performance.

QA1's commitment to quality is evident in the 100 percent dyno testing and serialization of each unit. The shock includes exclusive Teflon or Kevlar race bearings for smooth operation, and it comes with all necessary mounting hardware. This single adjustable shock is a reliable choice for those seeking high-performance suspension solutions.

Features

• Deflective Disc Valving
• Precision Machined Piston With P.T.F.E Piston Band Creates Accurate Piston To Cylinder Wall Seal, Improves Valving Consistency And Increases Durability
• 5/8 Inch Centerless Ground, Hard Chrome Plated, Solid Piston Rod Precision Surface Eliminates Piston Rod Flex, Increasing Valving Consistency
• Machined Aluminum Body Bright Anodized For Unmatched Durability And Great Appearance. These Shocks Are Revalveable And Rebuildable
• Three Step Sealing System
• 100 Percent Dyno Tested And Serialized
• Shock Mounting Hardware Exclusive Teflon Or Kevlar Race Bearings For Smooth, Bind-Free Operation. Spring Mounting Hardware Included

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: DS902
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 23-3/4 Inch
• Compressed Height (IN): 15 Inch
• Quantity: Single
• Valving Type: Compression And Rebound Valving
• Shock Body Color: Silver
• Shock Body Material: Aluminum
• Spring Height (IN): 14 Inch
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: Yes

Technical Documents

• DS_SHOCK_INSTALL_REV_03-29-18.pdf
