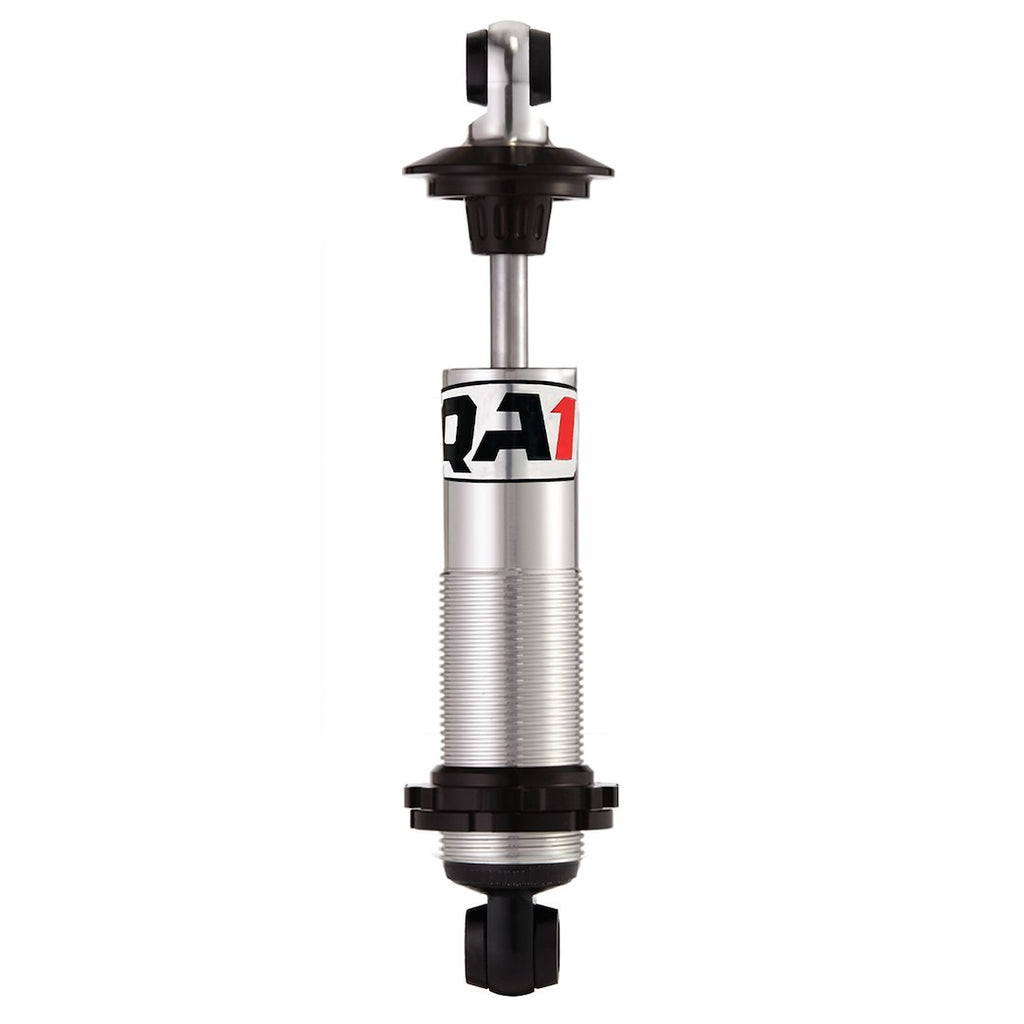

QA1 Coil Over Shock Absorber (MPN: ALN4855P)

Advanced shock absorber with non adjustable valving for enhanced performance.

The QA1 Coil Over Shock Absorber features a robust aluminum body designed for high performance and durability. With a non adjustable valving system, this shock absorber provides consistent handling and stability across various driving conditions. The extended height of 14-1/4 inches and compressed height of 10-1/8 inches make it suitable for a range of applications, ensuring optimal fitment and functionality.

This shock absorber is equipped with a deflective disc valving system that enhances responsiveness and control. The polished or bright anodized finish not only adds aesthetic appeal but also facilitates easy maintenance. The advanced sealing system, utilizing aerospace materials, prevents leaks and protects against road grime, ensuring longevity and reliability.

Included with the shock absorber are all necessary mounting hardware components, such as anodized aluminum spring caps and locking rings, which contribute to a show-quality finish. QA1's commitment to quality is evident as each unit is 100 percent dyno tested and serialized, providing assurance of performance and reliability.

Features

• Deflective Disc Valving
• Aluminum Body High Tech But Refined Appearance, The Machined Body Offers Both Beauty And Brawn
• Polished Or Bright Anodized Body These Shocks Are Available Polished To Provide A Show Stopping Appearance Or Bright Anodized For Easy Maintenance
• 15 Millimeter Centerless Ground, Hard Chrome Plated, Solid Piston Rod Increased Strength Over Hollow And Smaller Diameter Piston Rods, Eliminates Piston Rod Flex While Increasing Valving Consistency
• Advanced Sealing System Utilizes Aerospace Material. Double Lip Seal Design Eliminates The Possibility Of Leaking And Stops Road Grime From Getting To The Seals
• 100 Percent Dyno Tested And Serialized. Shock Mounting Hardware Included
• Spring Mounting Hardware Included Anodized Aluminum Spring Cap, Seat And Locking Ring For Show Quality Finish And Ease Of Maintenance

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: ALN4855P
• Adjustable: No
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 14-1/4 Inch
• Compressed Height (IN): 10-1/8 Inch
• Quantity: Single
• Valving Type: Non Adjustable Valving
• Shock Type: Twin Tube
• Shock Body Color: Silver
• Shock Body Material: Aluminum
• Spring Height (IN): 10 Inch
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: Yes

Technical Documents

• DS_SHOCK_INSTALL_REV_03-29-18.pdf
