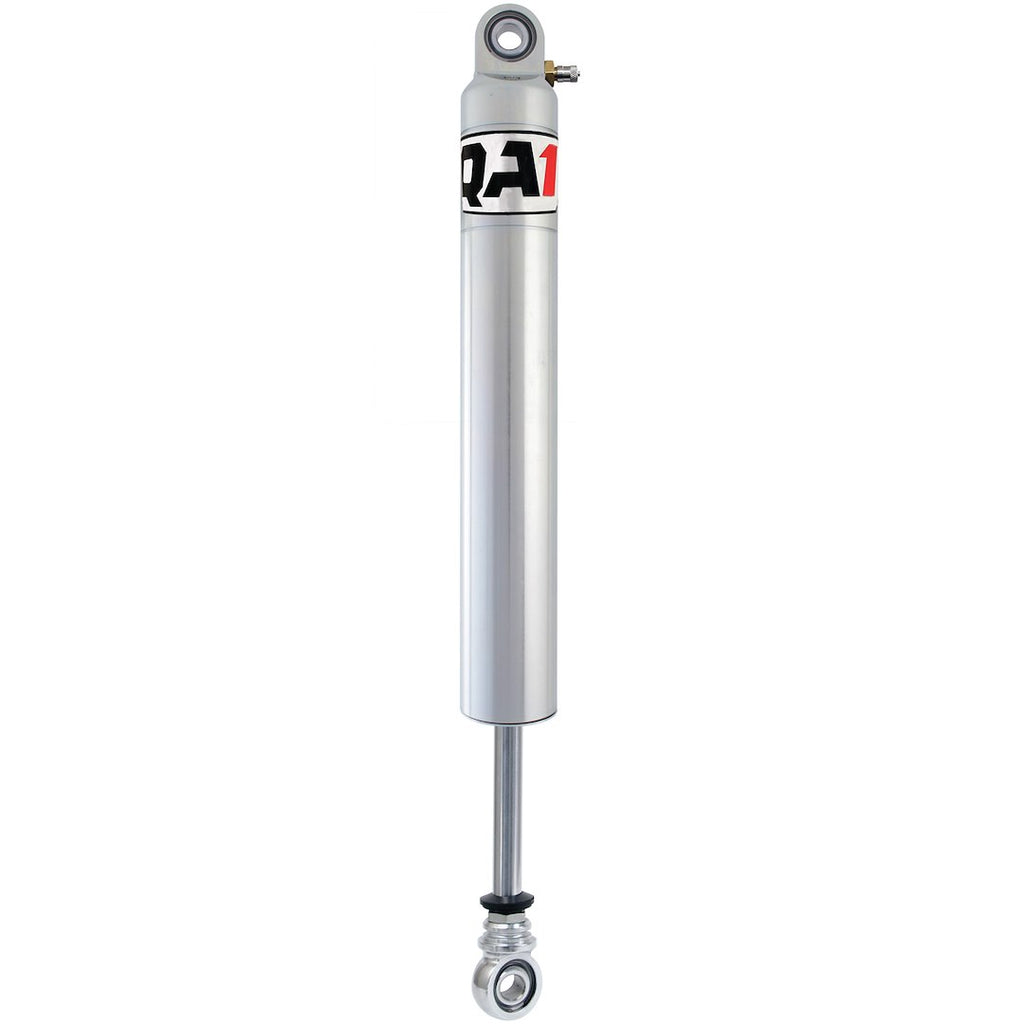

QA1 Coil Over Shock Absorber (MPN: 26V96-4M)

Adjustable shock absorber with advanced valving for optimal performance.

The QA1 Coil Over Shock Absorber from the 26V Series is engineered for high-performance racing applications. It features a Schrader valve that allows for on-the-fly gas pressure adjustments, enabling racers to adapt to changing track conditions effectively. With a robust design, this shock absorber includes electroless nickel plating for enhanced corrosion resistance and durability, ensuring long-lasting performance under demanding conditions.

This shock absorber is designed with a unique deflective disc valving system that provides complete control of suspension dynamics at low shaft speeds while minimizing extreme forces at high velocities. The linear, digressive, and low-speed super digressive valving options allow for precise tuning to meet specific racing needs. Additionally, the one-piece body design and the ability to mount the shock upside down contribute to reduced unsprung weight, enhancing overall vehicle handling.

With an extended height of 24.7 inches and a compressed height of 15.7 inches, this single shock absorber is suitable for various applications. It is racer revalveable and rebuildable, ensuring unparalleled repeatability and performance consistency. The QA1 Coil Over Shock Absorber is a critical component for those seeking to optimize their vehicle's suspension system.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V96-4M
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.7 Inch
• Compressed Height (IN): 15.7 Inch
• Quantity: Single
• Valving Type: Number 6 Compression And Number 4 Rebound Linear Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
