QA1 Coil Over Shock Absorber (MPN: 26V96-3M)

Adjustable shock absorber with advanced valving for optimal performance.

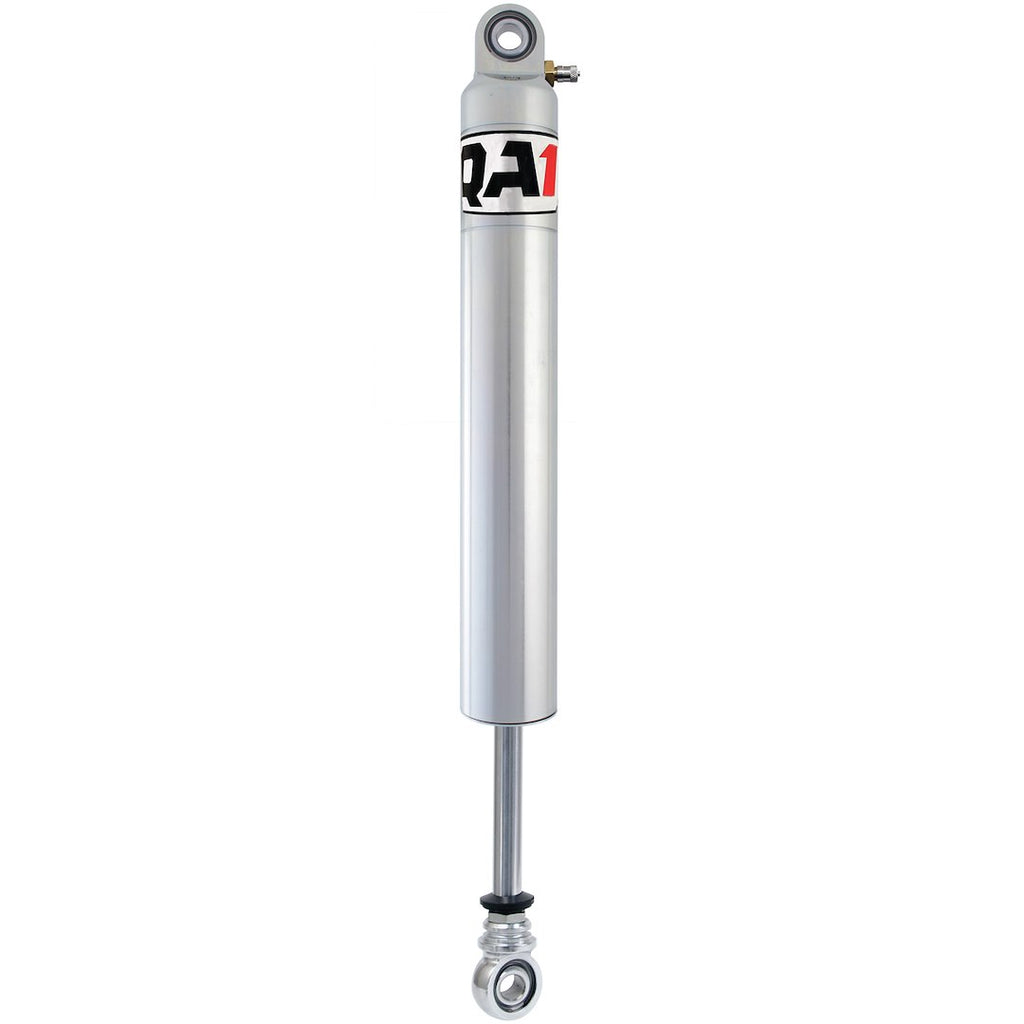

The QA1 Coil Over Shock Absorber from the 26V Series is engineered for high-performance racing applications. It features a Schrader valve that allows for on-the-fly gas pressure adjustments, enabling racers to adapt to changing track conditions effectively. With a robust design, this shock absorber offers a 24.7 inch extended height and a 15.7 inch compressed height, making it suitable for various vehicle setups.

Constructed with an electroless nickel plated body, the shock absorber provides excellent corrosion resistance and durability. The racer revalveable and rebuildable design ensures consistent performance and repeatability, while the non-fading proprietary oil blend maintains damping performance under extreme conditions. The deflective disc valving allows for precise control of suspension dynamics, enhancing vehicle handling and stability.

This monotube shock absorber is designed to be mounted upside down without affecting its performance, which helps reduce unsprung weight. The linear valving system, combined with a hard chrome plated piston rod, ensures smooth operation and responsiveness. The QA1 Coil Over Shock Absorber is a single unit that requires the use of part number CK5007 for complete functionality.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V96-3M
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.7 Inch
• Compressed Height (IN): 15.7 Inch
• Quantity: Single
• Valving Type: Number 6 Compression And Number 3 Rebound Linear Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
