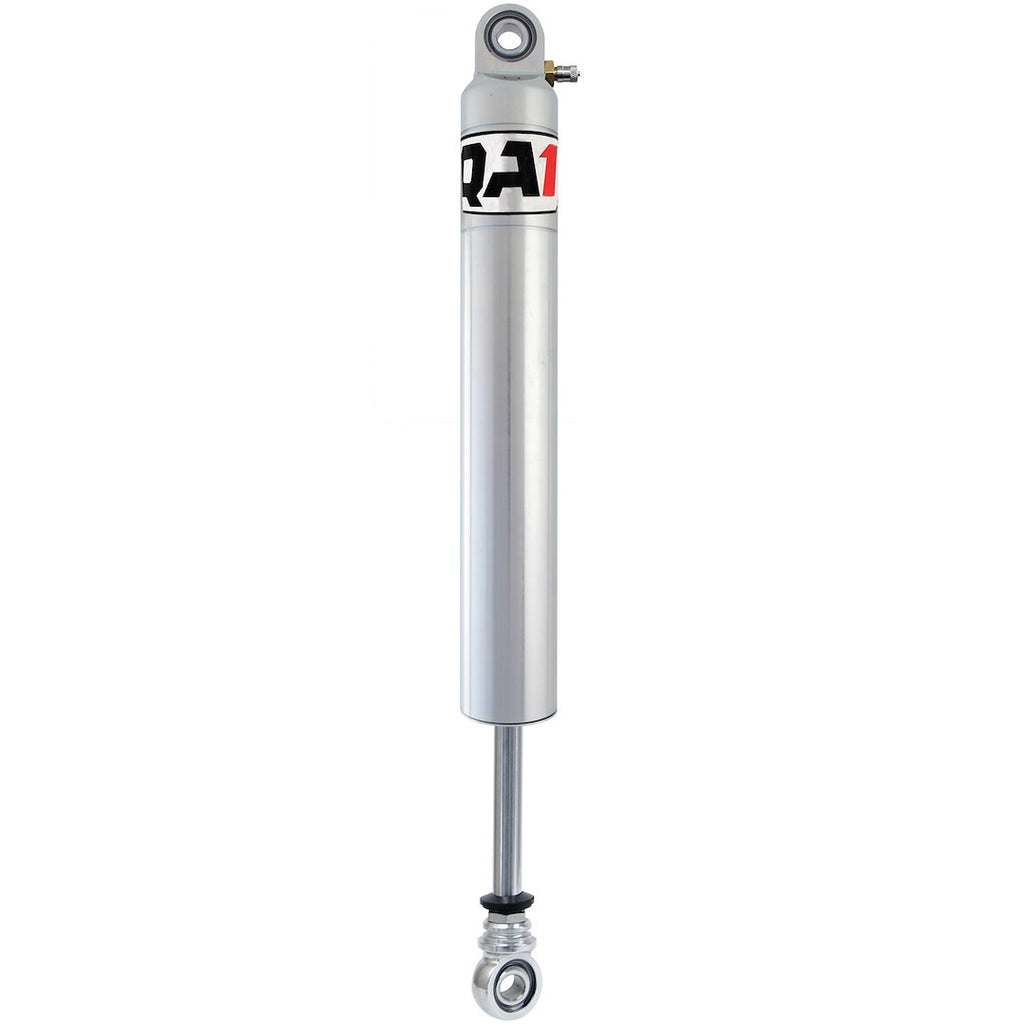

QA1 Coil Over Shock Absorber (MPN: 26V96-2)

Advanced shock absorber with adjustable gas pressure for optimal performance.

The QA1 Coil Over Shock Absorber from the 26V Series is engineered for high-performance racing applications. It features a Schrader valve that allows for on-the-fly gas pressure adjustments, enabling racers to adapt to changing track conditions effectively. With a robust design, this shock absorber includes an electroless nickel plated body that provides excellent corrosion resistance and durability, ensuring long-lasting performance under extreme conditions.

This shock absorber is designed with digressive valving, offering superior control of suspension dynamics at varying speeds. The non-fading proprietary oil blend used in the shock prevents performance degradation, maintaining consistent handling characteristics throughout races. Additionally, the shock can be mounted upside down, reducing unsprung weight without affecting the damping rate, which is crucial for maintaining vehicle stability.

The QA1 Coil Over Shock Absorber is also racer revalveable and rebuildable, allowing for customization and maintenance to meet specific racing needs. With its adjustable features and high-quality construction, this shock absorber is a reliable choice for serious racers looking to enhance their vehicle's performance.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disk Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V96-2
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.7 Inch
• Compressed Height (IN): 15.7 Inch
• Quantity: Single
• Valving Type: Number 6 Compression And Number 2 Rebound Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
