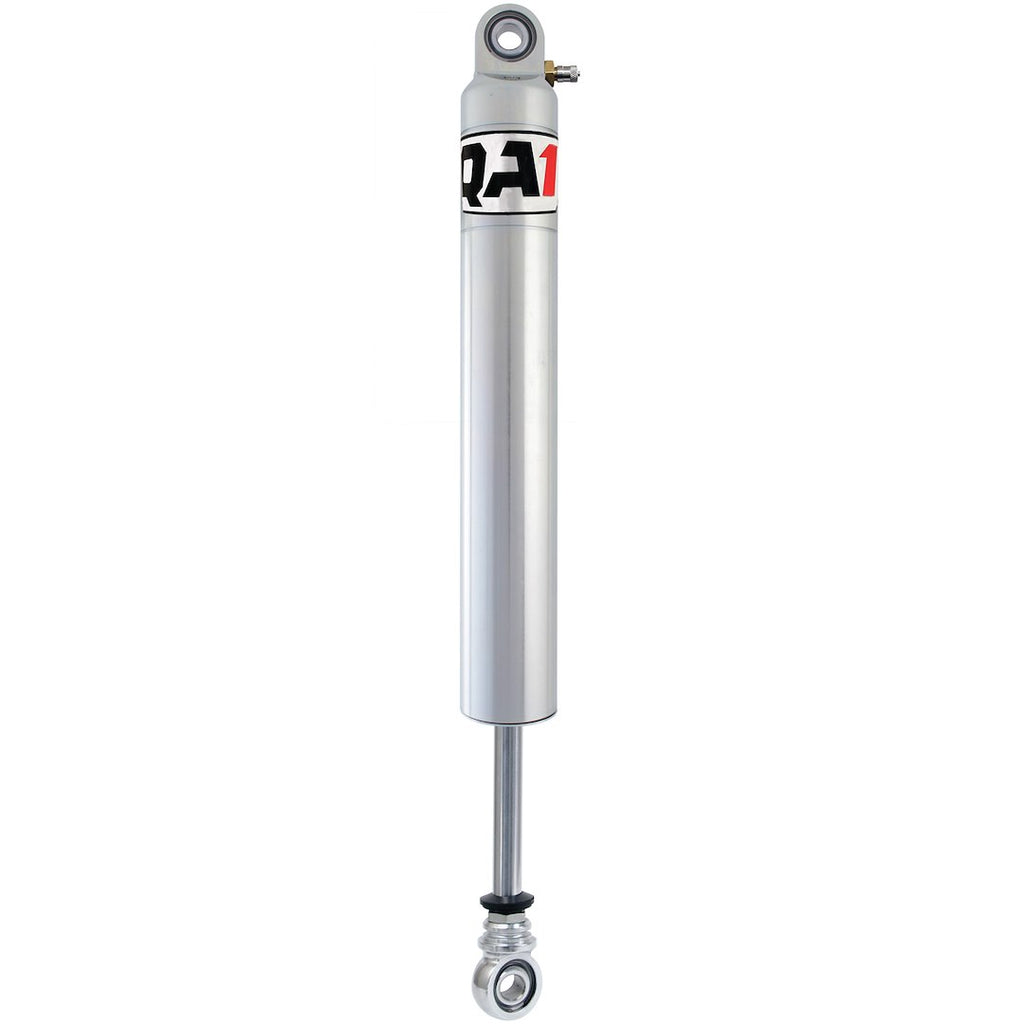

QA1 Coil Over Shock Absorber (MPN: 26V93-5)

Adjustable shock absorber with advanced valving for optimal performance.

The QA1 Coil Over Shock Absorber from the 26V Series is engineered for high-performance racing applications. It features a Schrader valve that allows for on-the-fly gas pressure adjustments, enabling racers to adapt to changing track conditions effectively. With a robust design, this shock absorber includes an electroless nickel plated body that provides excellent corrosion resistance and durability, ensuring long-lasting performance under extreme conditions.

This shock absorber is designed with number 3 compression and number 5 rebound digressive valving, offering precise control over suspension dynamics. The deflective disk valving allows for complete control at low shaft speeds while minimizing extreme forces at high velocities. Additionally, the monotube design and the ability to mount the shock upside down help reduce unsprung weight, enhancing overall vehicle handling.

The QA1 Coil Over Shock Absorber is racer revalveable and rebuildable, ensuring unparalleled repeatability and performance consistency. With a 24.7-inch extended height and a 15.7-inch compressed height, it is suitable for various racing setups. This single shock unit is designed to be used with part number CK5007, making it a versatile choice for serious racers.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disk Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V93-5
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.7 Inch
• Compressed Height (IN): 15.7 Inch
• Quantity: Single
• Valving Type: Number 3 Compression And Number 5 Rebound Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
