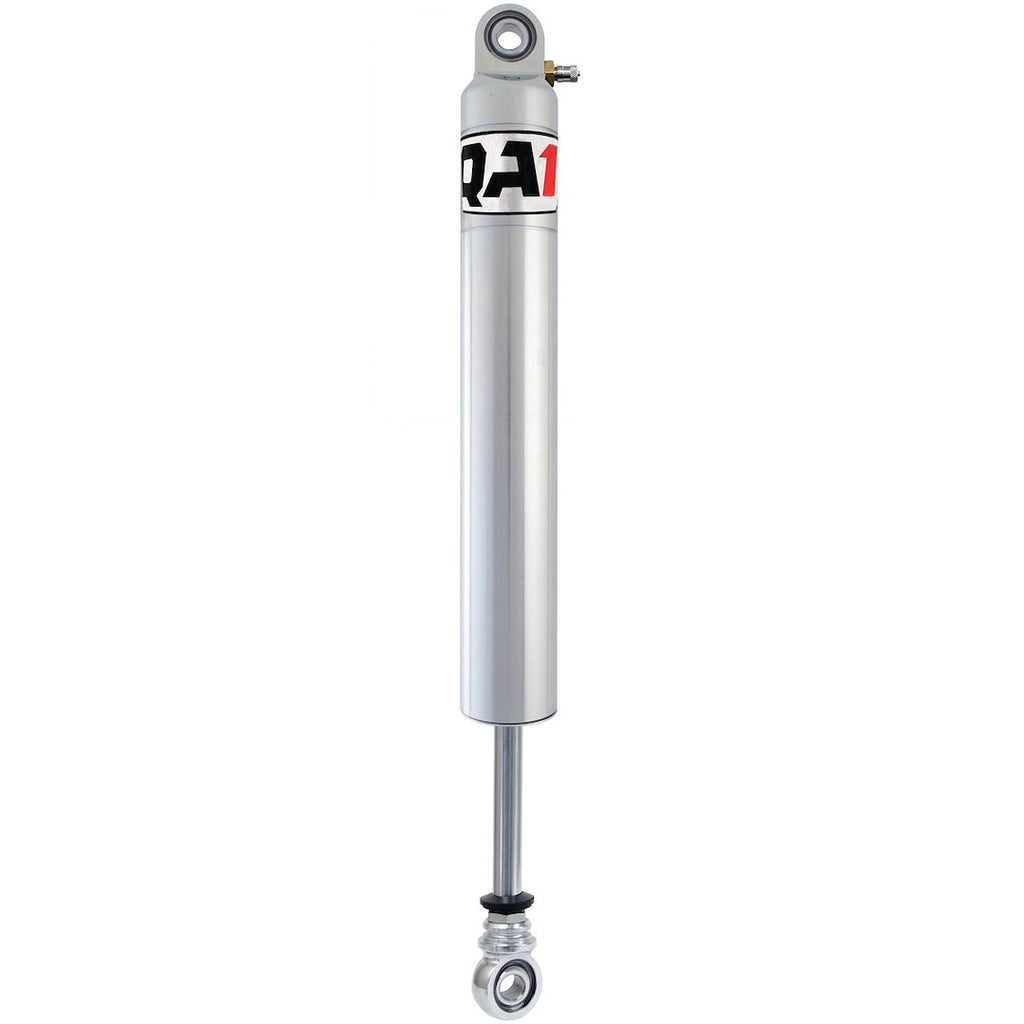

QA1 Coil Over Shock Absorber (MPN: 26V9-DRY)

Adjustable shock absorber with advanced valving for optimal performance.

The QA1 Coil Over Shock Absorber from the 26V Series is engineered for high-performance racing applications. It features a unique Schrader valve that allows for on-the-fly gas pressure adjustments, enabling racers to adapt to changing track conditions effectively. The shock absorber is designed with dry compression and rebound digressive valving, providing precise control over suspension dynamics at varying speeds.

Constructed with an electroless nickel plated body, this shock absorber offers excellent corrosion resistance and durability. The one-piece body design enhances structural integrity, while the ability to run the shock upside down helps reduce unsprung weight without affecting performance. The monotube design ensures consistent damping characteristics, making it suitable for a range of racing environments.

With a focus on repeatability and performance, the QA1 Coil Over Shock Absorber is racer revalveable and rebuildable, allowing for customization to meet specific racing needs. The advanced valving options, including linear and digressive configurations, provide comprehensive control over suspension behavior, ensuring optimal handling and stability.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V9-DRY
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.7 Inch
• Compressed Height (IN): 15.7 Inch
• Quantity: Single
• Valving Type: Dry Compression And Rebound Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
