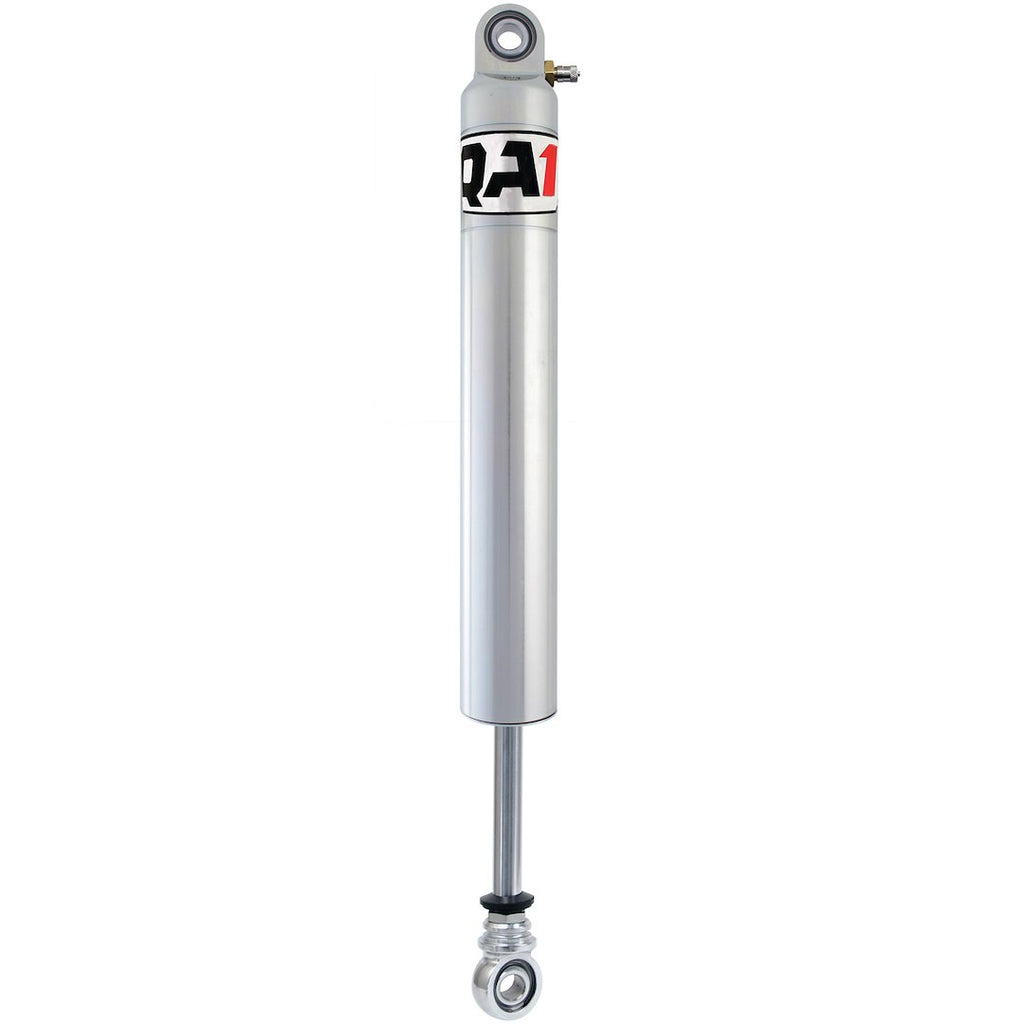

QA1 Coil Over Shock Absorber (MPN: 26V79-1B)

Adjustable shock absorber with digressive valving for enhanced performance.

The QA1 Coil Over Shock Absorber from the 26V Series is engineered for precision and adaptability in racing applications. Featuring a Schrader valve, this shock absorber allows for on-the-fly gas pressure adjustments, enabling racers to optimize performance based on track conditions. With a robust design that includes an electroless nickel plated body, it offers excellent corrosion resistance and durability, ensuring longevity in demanding environments.

This shock absorber is designed to be racer revalveable and rebuildable, providing unparalleled repeatability for consistent performance. The non-fading proprietary oil blend used in the shock prevents performance degradation, while the deflective disk valving allows for complete control of suspension dynamics at varying speeds. The ability to mount the shock upside down without altering the rate further enhances its versatility, reducing unsprung weight for improved handling.

With an extended height of 20.7 inches and a compressed height of 13.7 inches, this single shock is suitable for various applications. The loop upper and lower mounts facilitate easy installation, while the absence of a spring allows for customization based on specific racing needs. The QA1 Coil Over Shock Absorber is a critical component for those seeking to enhance their vehicle's suspension performance.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disk Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V79-1B
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 20.7 Inch
• Compressed Height (IN): 13.7 Inch
• Quantity: Single
• Valving Type: Number 9 Compression And Number 1 Rebound Axle Damper Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
