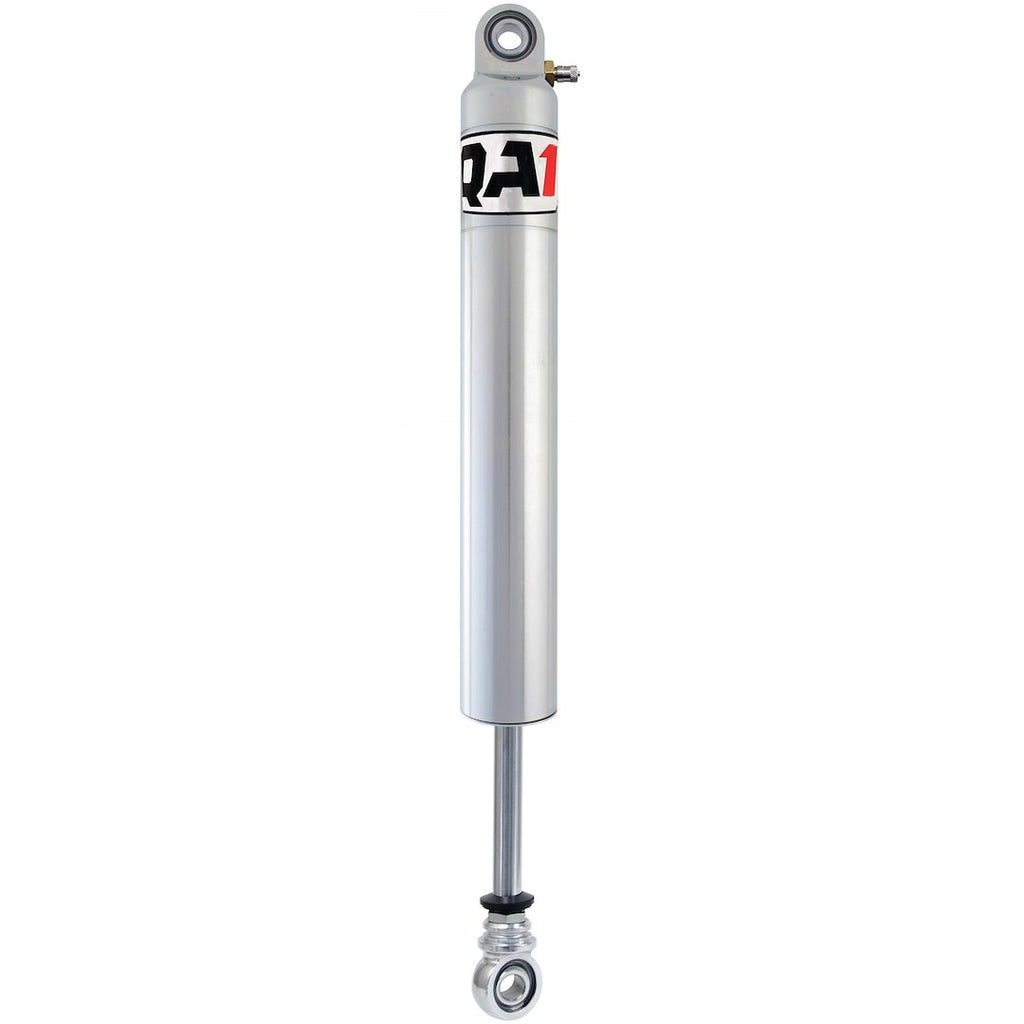

QA1 Coil Over Shock Absorber (MPN: 26V75-2)

Adjustable shock absorber with advanced valving for optimal performance.

The QA1 Coil Over Shock Absorber from the 26V Series is engineered for high-performance racing applications. It features a Schrader valve that allows for on-the-fly gas pressure adjustments, enabling racers to adapt to changing track conditions effectively. With a robust design, this shock absorber includes an electroless nickel plated body that provides excellent corrosion resistance and durability, ensuring long-lasting performance under extreme conditions.

This shock absorber is designed to be racer revalveable and rebuildable, offering unparalleled repeatability for consistent handling. The non-fading proprietary oil blend used in the shock prevents performance degradation during intense racing scenarios. Additionally, the deflective disc valving allows for precise control of suspension dynamics, enhancing vehicle stability and responsiveness at various speeds.

With an extended height of 20.7 inches and a compressed height of 13.7 inches, this monotube shock absorber is suitable for a variety of racing setups. Its unique ability to be mounted upside down without affecting the rate helps reduce unsprung weight, further improving handling characteristics. The QA1 Coil Over Shock Absorber is a single unit that requires coil over spring hardware for complete installation.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V75-2
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 20.7 Inch
• Compressed Height (IN): 13.7 Inch
• Quantity: Single
• Valving Type: Number 5 Compression And Number 2 Rebound Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
