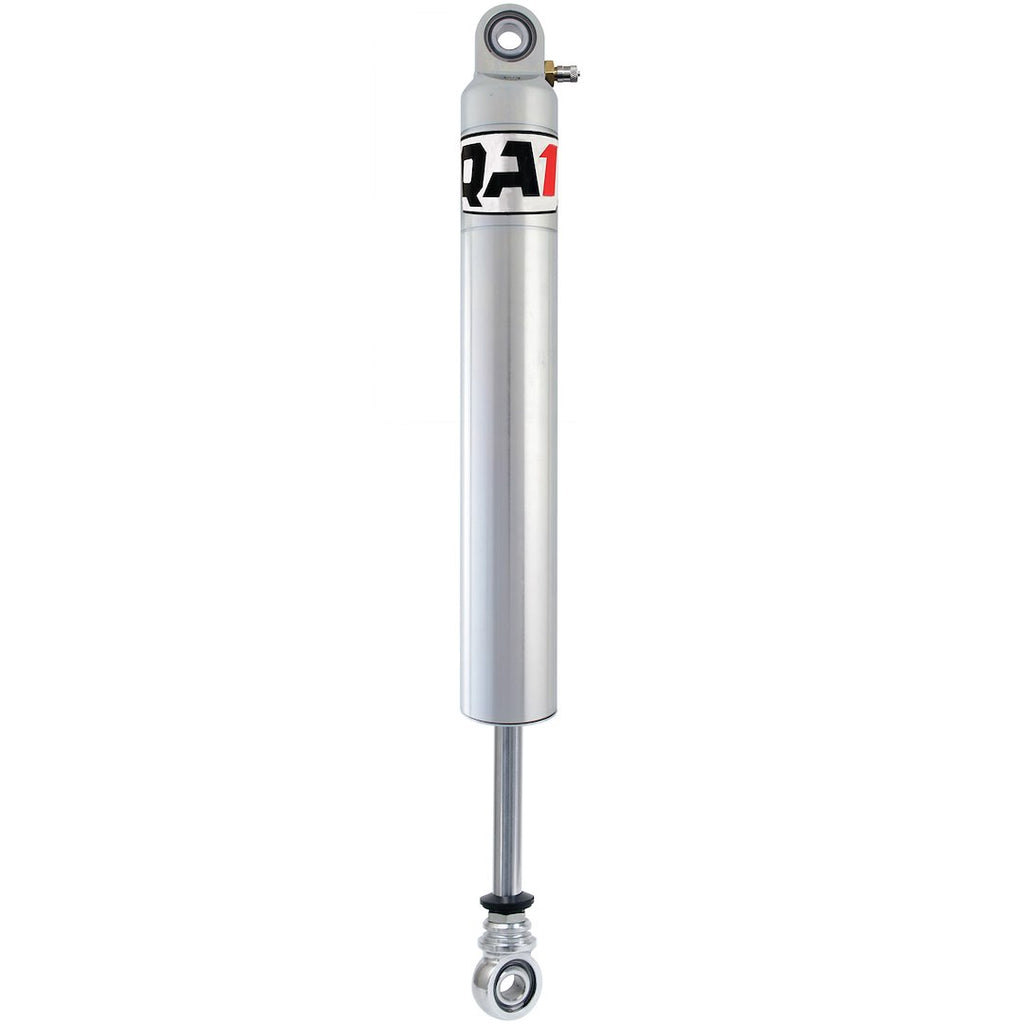

QA1 Coil Over Shock Absorber (MPN: 26V75-10C)

High-performance shock absorber for various racing applications.

The QA1 26V Series Coil Over Shock Absorber is engineered for versatility across different track conditions, making it suitable for modifieds, late models, superstocks, and more. This one-piece monotube shock features a zinc plated body that enhances corrosion resistance, ensuring durability in demanding environments. With an extended height of 20.63 inches and a compressed height of 13.4 inches, it offers adjustable ride height to accommodate various setups.

Designed with deflective disc valving, the shock provides optimal car control at all shaft velocities. The premium proprietary blend of specially engineered oil prevents fade, while the centerless ground, hard chrome plated piston rod minimizes flex, enhancing valving consistency. The damping curve is tailored to maintain suspension control at low shaft speeds without generating excessive forces at high speeds.

This gas pressurized monotube shock can be installed in any orientation without affecting its performance. It is racer rebuildable and revalveable, allowing for precise tuning and repeatability. The QA1 26V Series shock is 100 percent dyno tested, ensuring reliability and performance for competitive racing.

Features

• Deflective Disc Valving
• Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Piston Allows For Maximum Car Control At All Shaft Velocities
• Centerless Ground, Hard Chrome Plated Piston Rod Eliminates Piston Rod Flex, Increasing Valving Consistency
• Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Can Be Run In Any Orientation With No Change In Rate
• Racer Rebuildable And Revalveable For Unparalleled Repeatability
• 100 Percent Dyno Tested

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V75-10C
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 20.63 Inch
• Compressed Height (IN): 13.4 Inch
• Quantity: Single
• Valving Type: Number 5 Compression And Number 10 Rebound Linear/ Digressive Valving
• Shock Type: Gas Pressurized Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
