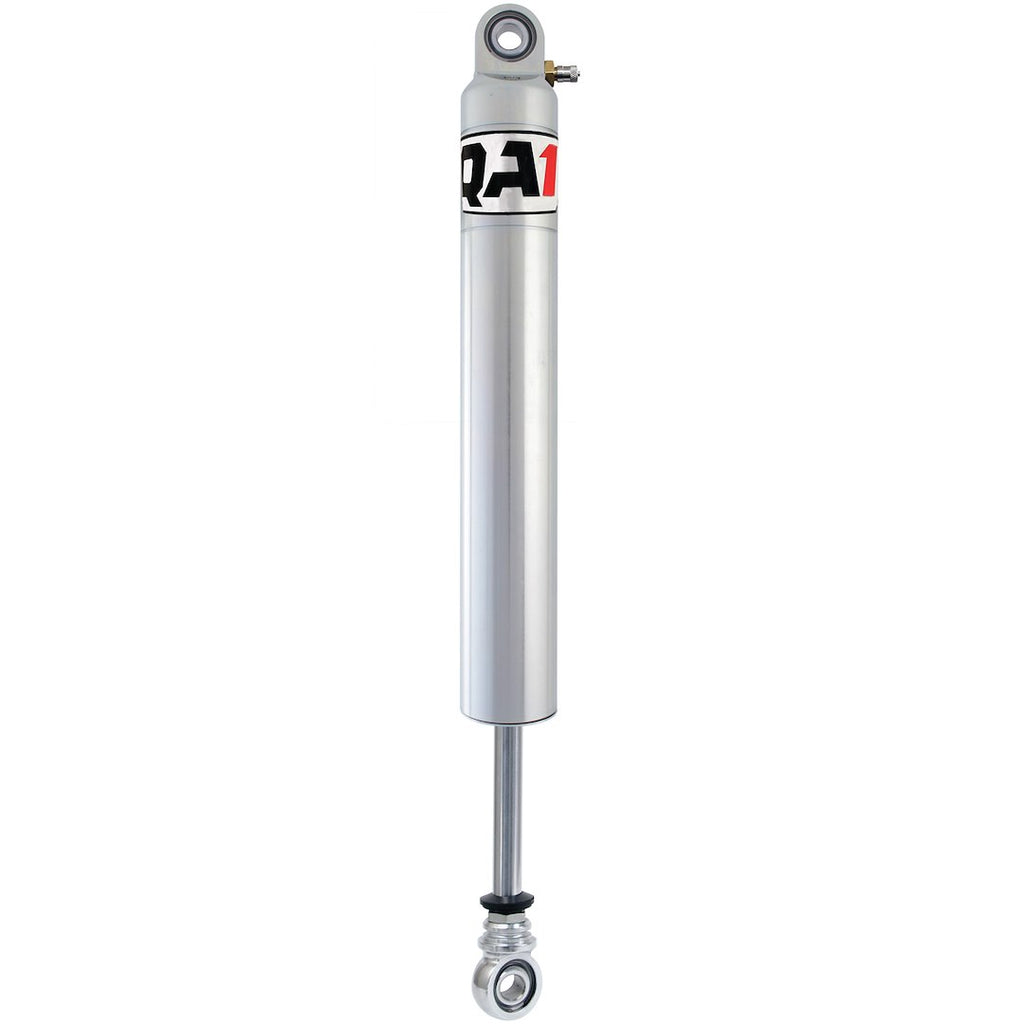

QA1 Coil Over Shock Absorber (MPN: 26V74)

Adjustable shock absorber with advanced valving for optimal performance.

The QA1 Coil Over Shock Absorber from the 26V Series is engineered for high-performance racing applications. It features a Schrader valve that allows for on-the-fly gas pressure adjustments, enabling racers to adapt to changing track conditions effectively. With a robust design, this shock absorber offers a 20.7 inch extended height and a 13.7 inch compressed height, making it suitable for various vehicle setups.

Constructed with an electroless nickel plated body, the QA1 shock absorber provides excellent corrosion resistance and durability. The monotube design incorporates number 4 compression and rebound digressive valving, ensuring precise control over suspension dynamics. Additionally, the shock can be mounted upside down without affecting its performance, which helps reduce unsprung weight for improved handling.

This shock absorber is racer revalveable and rebuildable, allowing for unparalleled repeatability in performance tuning. The use of a premium proprietary blend of oil prevents fade, ensuring consistent performance throughout races. The QA1 Coil Over Shock Absorber is a reliable choice for those seeking to enhance their vehicle's suspension system.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disk Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V74
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 20.7 Inch
• Compressed Height (IN): 13.7 Inch
• Quantity: Single
• Valving Type: Number 4 Compression And Number 4 Rebound Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
