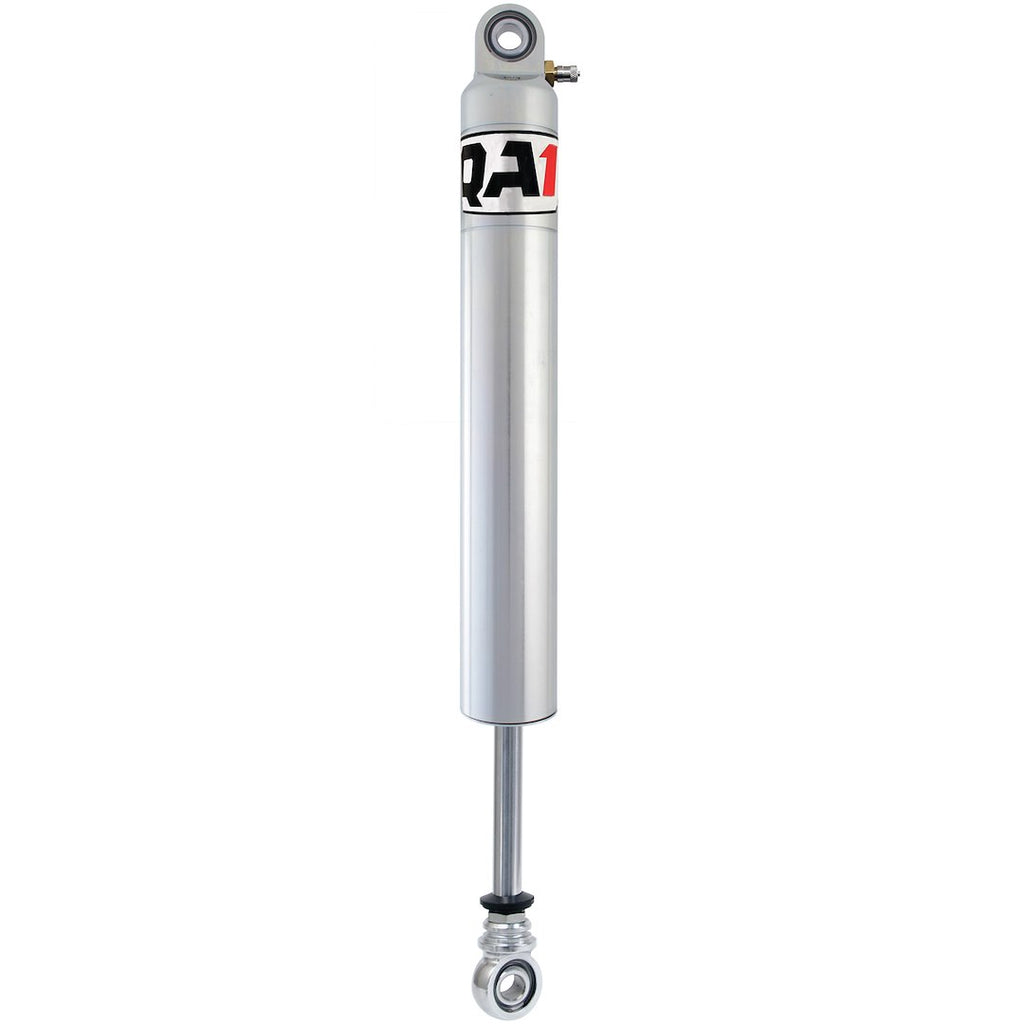

QA1 Coil Over Shock Absorber (MPN: 26V73-8M)

Adjustable ride height and gas pressure for optimal performance.

The QA1 Coil Over Shock Absorber from the 26V Series is engineered for precision and adaptability in racing applications. Featuring a Schrader valve, this shock absorber allows for on-the-fly gas pressure adjustments, enabling racers to fine-tune their setup according to varying track conditions. With a robust design that includes an electroless nickel plated body, it offers excellent corrosion resistance and durability, ensuring long-lasting performance under demanding conditions.

This shock absorber is designed with a number 3 compression and number 8 rebound linear valving, providing a balanced damping curve that enhances control at low shaft speeds while minimizing extreme forces at high velocities. The monotube design and the ability to run the shock upside down contribute to reduced unsprung weight, further improving handling and responsiveness. Additionally, the shock is racer revalveable and rebuildable, allowing for unparalleled repeatability and customization.

With an extended height of 20.7 inches and a compressed height of 13.7 inches, this single shock absorber is compatible with various racing setups. It is important to note that this product does not include a spring or coil over kit, and requires separate coil over spring hardware for complete installation. The QA1 Coil Over Shock Absorber is a reliable choice for those seeking to enhance their vehicle's suspension performance.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26V73-8M
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 20.7 Inch
• Compressed Height (IN): 13.7 Inch
• Quantity: Single
• Valving Type: Number 3 Compression And Number 8 Rebound Linear Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
