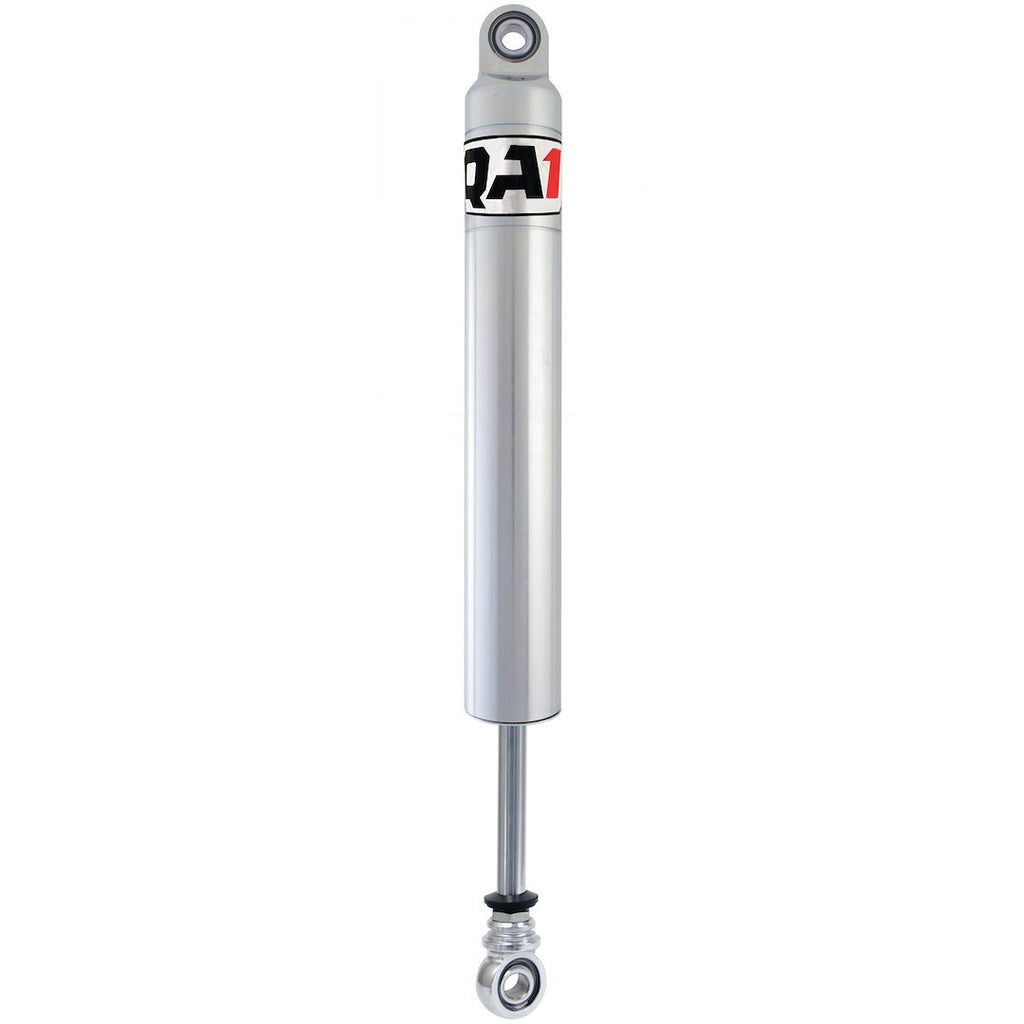

QA1 Coil Over Shock Absorber (MPN: 26A97-3)

High-performance monotube shock with advanced features for optimal control.

The QA1 26A Series Coil Over Shock Absorber is engineered for high performance and durability, featuring a one-piece steel body design that ensures consistent operation. This shock absorber is designed with an electroless nickel plating that provides excellent corrosion resistance and a smooth internal finish, enhancing the shock's reliability and performance. The digressive valving system, with Number 7 compression and Number 3 rebound settings, allows for precise control of suspension dynamics, making it suitable for various racing applications.

This shock absorber is adjustable, allowing users to fine-tune their suspension setup according to their specific needs. The non-fading design utilizes a proprietary blend of oil to maintain performance under varying conditions, while the deflective disk valving ensures optimal damping at both low and high shaft speeds. The QA1 26A Series is also racer revalveable and rebuildable, providing unparalleled repeatability and longevity.

With a compressed height of 15.7 inches and an extended height of 24.7 inches, this shock absorber is versatile for different vehicle setups. Its ability to be mounted upside down without affecting the rate helps reduce unsprung weight, further enhancing vehicle performance. The QA1 26A Series is a single shock unit that must be used with part number CK5007 for complete functionality.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disk Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26A97-3
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.7 Inch
• Compressed Height (IN): 15.7 Inch
• Quantity: Single
• Valving Type: Number 7 Compression And Number 3 Rebound Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
