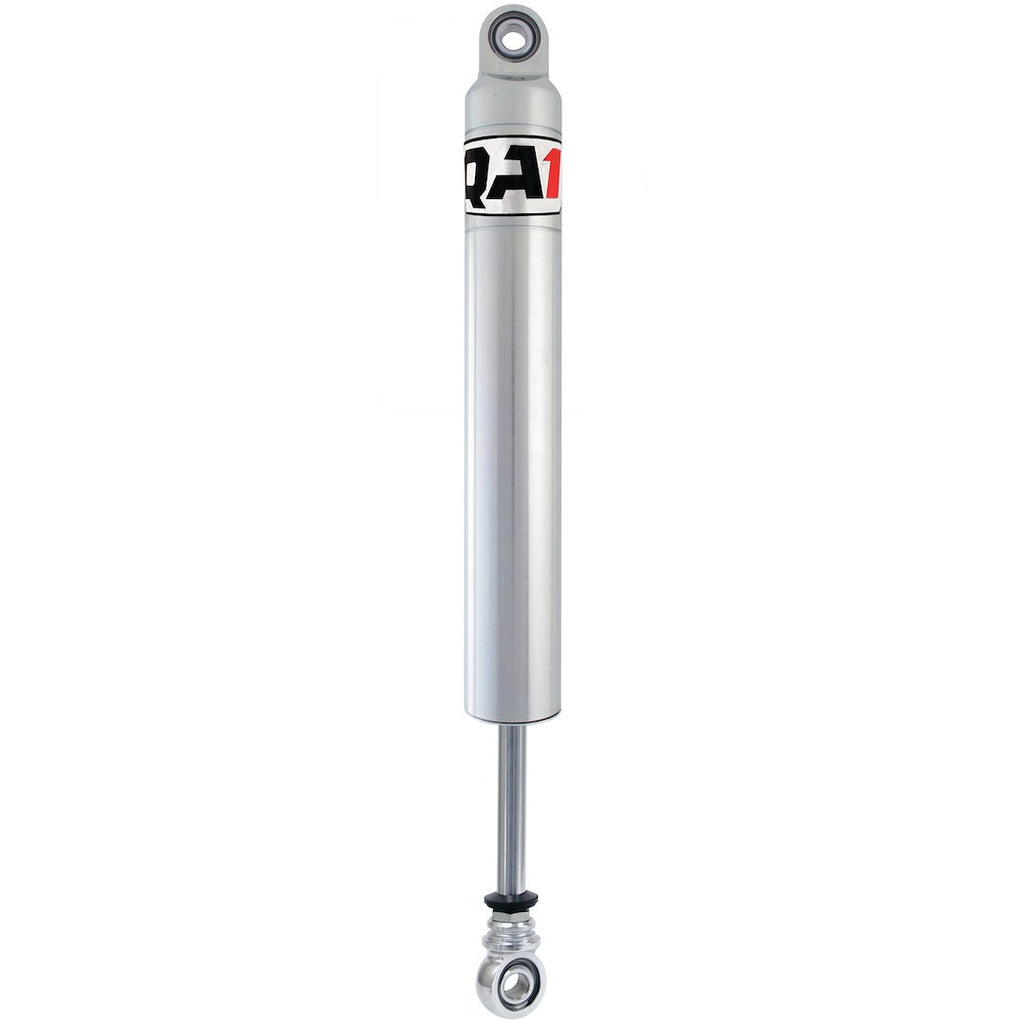

QA1 Coil Over Shock Absorber (MPN: 26A96-3)

High-performance monotube shock with advanced features for optimal control.

The QA1 26A Series Coil Over Shock Absorber is engineered for high performance and durability, featuring a one-piece steel body design. This shock absorber is designed to meet IMCA regulations with its gas pressure tunability feature disabled, ensuring compliance while maintaining performance. The electroless nickel plating provides excellent corrosion resistance and a smooth internal finish, which is crucial for consistent shock performance over time.

With a compression valving of Number 6 and rebound valving of Number 3, this shock absorber offers precise control of suspension dynamics. The deflective disk valving allows for effective damping at low shaft speeds, preventing extreme forces at high velocities. This design ensures that the shock performs reliably under various conditions, making it suitable for competitive racing environments.

The QA1 26A Series shock is also racer revalveable and rebuildable, allowing for customization and maintenance to suit specific performance needs. Its ability to be mounted upside down without affecting the rate helps reduce unsprung weight, enhancing overall vehicle handling. This shock absorber is a single unit and does not include a spring or coil over kit, making it a versatile choice for various applications.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disk Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 26A96-3
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.7 Inch
• Compressed Height (IN): 15.7 Inch
• Quantity: Single
• Valving Type: Number 6 Compression And Number 3 Rebound Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
