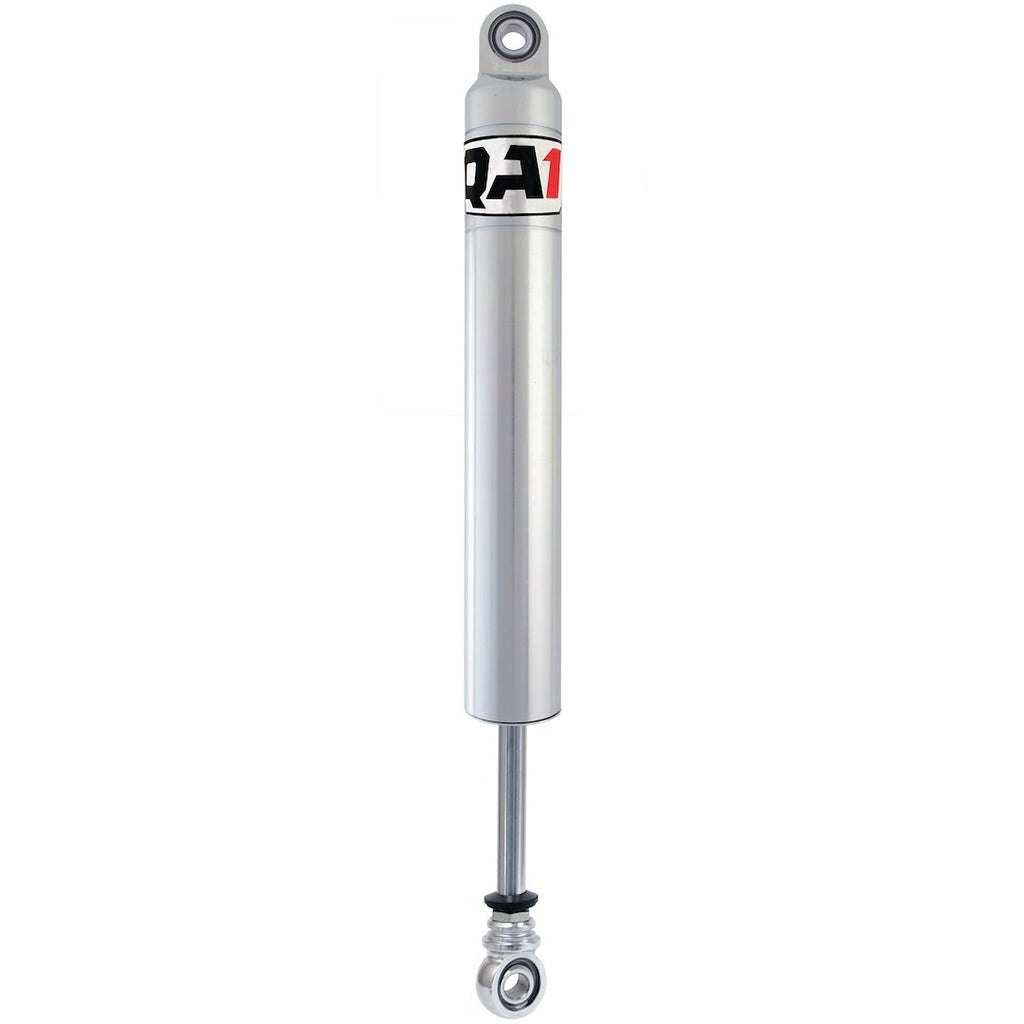

QA1 Coil Over Shock Absorber (MPN: 269LD-DRY)

Versatile shock absorber designed for various track conditions and applications.

The QA1 26 Series Coil Over Shock Absorber is engineered as a one-piece monotube shock, providing reliable performance across a range of track conditions. Its zinc plated steel body ensures corrosion resistance, making it suitable for modifieds, late models, superstocks, and other racing classes. This shock excels on rough tracks and serves effectively as an easy-up shock for dirt cars and bumpy asphalt tracks, accommodating various banking types.

Featuring a 2 inch outer diameter and a 46 millimeter piston, this shock allows for maximum car control at all shaft velocities. The deflective disc valving system, available in linear, digressive, and linear/digressive options, enhances adaptability to different racing environments. The 15 millimeter centerless ground, hard chrome plated piston rod minimizes flex, ensuring consistent valving performance.

The QA1 26 Series shock is designed for racer rebuildability and revalveability, offering unparalleled repeatability for optimal tuning. It can be installed in any orientation without affecting the rate, making it a versatile choice for racers seeking to fine-tune their suspension setup.

Features

• 2 Inch O.D. Zinc Plated Steel Monotube Body
• Available With Hyperscrew, Sealed Hyperscrew (IMCA Legal) Or Schrader Valve
• Deflective Disc Valving
• Linear, Digressive And Linear/Digressive Valving Available
• 46 Millimeter Piston Allows For Maximum Car Control At All Shaft Velocities
• 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod Eliminates Piston Rod Flex, Increasing Valving Consistency
• Can Be Run In Any Orientation With No Change In Rate
• Racer Rebuildable And Revalveable For Unparalleled Repeatability
• Custom Valving Available

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 269LD-DRY
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.63 Inch
• Compressed Height (IN): 15.4 Inch
• Quantity: Single
• Valving Type: Dry Compression And Rebound Linear/ Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Zinc Plated Steel
• Spring Height (IN): No Spring
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
