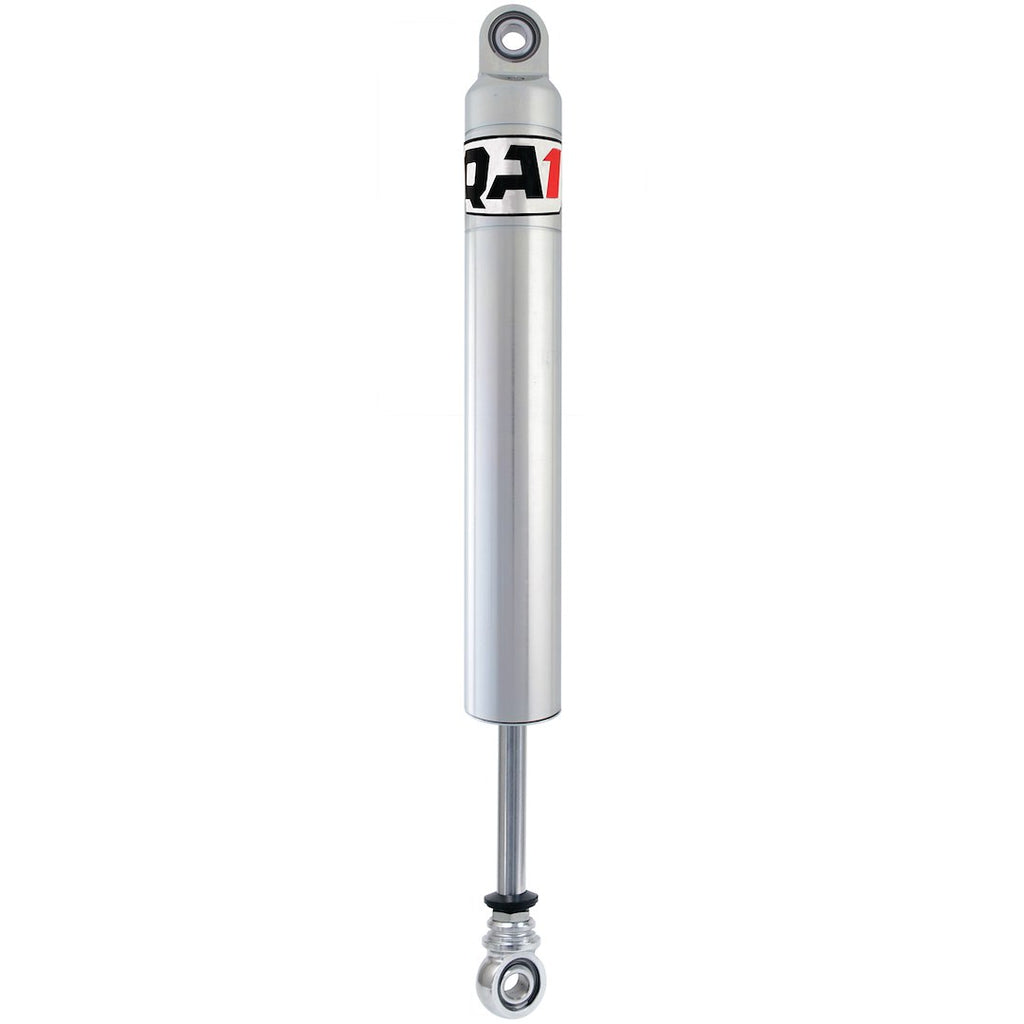

QA1 Coil Over Shock Absorber (MPN: 2694-6C)

Advanced shock absorber for improved traction and control on various tracks.

The QA1 Coil Over Shock Absorber, part of the 26 Series, is engineered for versatility across different racing conditions. This one-piece monotube design features a zinc plated body that enhances corrosion resistance, making it suitable for modifieds, late models, superstocks, and other racing classes. With an extended height of 24.63 inches and a compressed height of 15.4 inches, this shock absorber is adjustable to meet specific ride height requirements.

Equipped with number 4 compression and number 6 rebound digressive valving, the shock provides optimal damping performance. The deflective disc valving and premium proprietary oil blend prevent fade, ensuring consistent performance throughout races. The centerless ground, hard chrome plated piston rod minimizes flex, which contributes to improved valving consistency and maximum car control at varying shaft velocities.

This shock absorber can be installed in any orientation without affecting its rate, offering flexibility in setup. It is also racer rebuildable and revalveable, allowing for precise tuning and repeatability. Each unit is 100 percent dyno tested to guarantee reliability and performance under racing conditions.

Features

• Deflective Disc Valving
• Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Piston Allows For Maximum Car Control At All Shaft Velocities
• Centerless Ground, Hard Chrome Plated Piston Rod Eliminates Piston Rod Flex, Increasing Valving Consistency
• Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Can Be Run In Any Orientation With No Change In Rate
• Racer Rebuildable And Revalveable For Unparalleled Repeatability
• 100 Percent Dyno Tested

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 2694-6C
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.63 Inch
• Compressed Height (IN): 15.4 Inch
• Quantity: Single
• Valving Type: Number 4 Compression And Number 6 Rebound Digressive Valving
• Shock Type: Gas Pressurized Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: Yes
