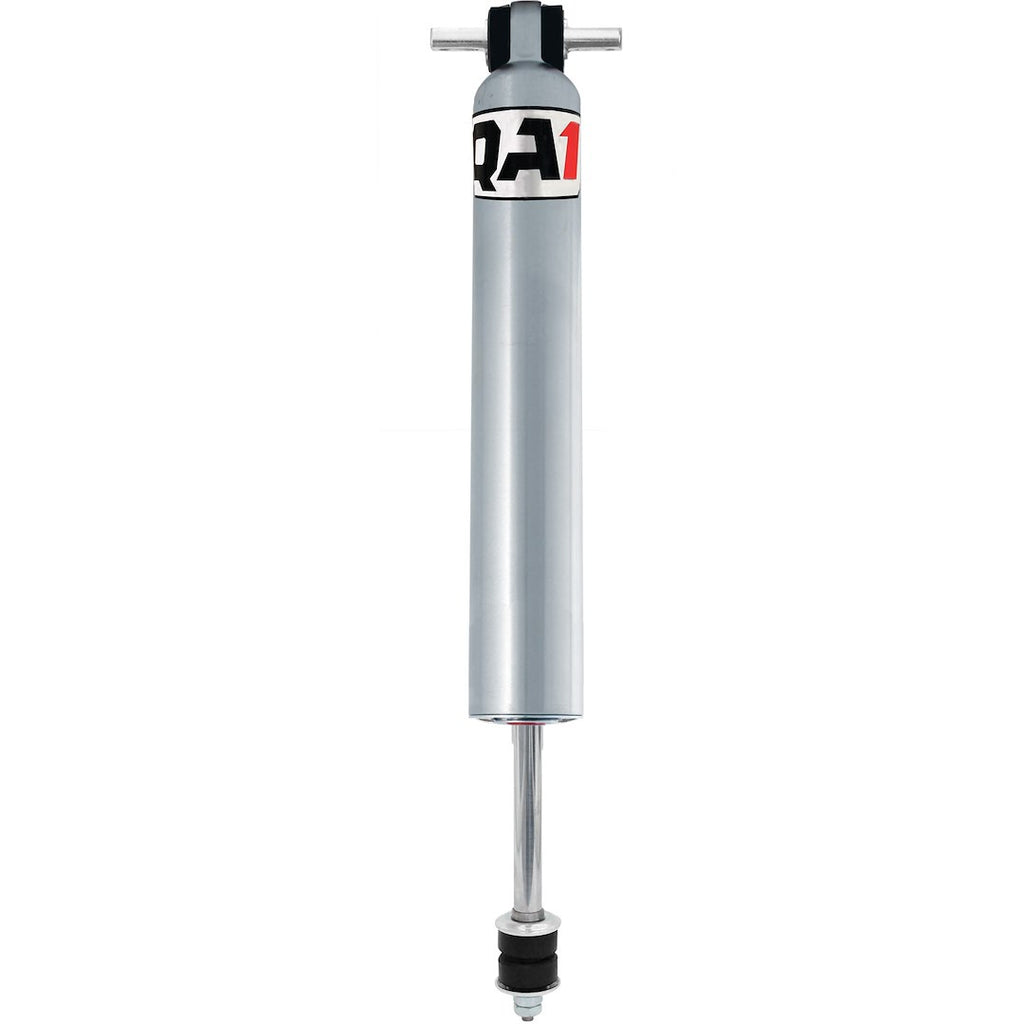

QA1 27 Series Sealed Hyperscrew Shock Absorber (MPN: 27A584-6M)

Advanced hydraulic shock absorber designed for precision racing performance.

The QA1 27 Series Sealed Hyperscrew Shock Absorber is engineered for high-performance racing applications, featuring a robust hydraulic design that ensures optimal handling and stability. With an extended height of 21.38 inches and a compressed height of 12.8 inches, this shock absorber is tailored for specific vehicle setups, providing a precise fit and function. The electroless nickel plated body offers superior corrosion resistance and durability, making it suitable for various racing environments.

Incorporating advanced deflective disc technology, the 27 Series allows for customizable valve settings, enabling racers to fine-tune their suspension for different driving conditions. The linear valving system enhances vehicle stability and driver feedback, ensuring a responsive driving experience. Additionally, the shock is designed to be racer rebuildable and revalveable, promoting longevity and consistent performance without the need for replacement.

This shock absorber features a non-adjustable design with number 4 compression and number 6 rebound linear valving, providing a balanced damping curve that maintains control at low shaft speeds while minimizing extreme forces at high velocities. The QA1 27 Series is a single unit, specifically designed for vehicle-specific applications, ensuring compatibility and performance in competitive racing scenarios.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27A584-6M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21.38 Inch
• Compressed Length (IN): 12.8 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Stud
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 4 Compression And Number 6 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
