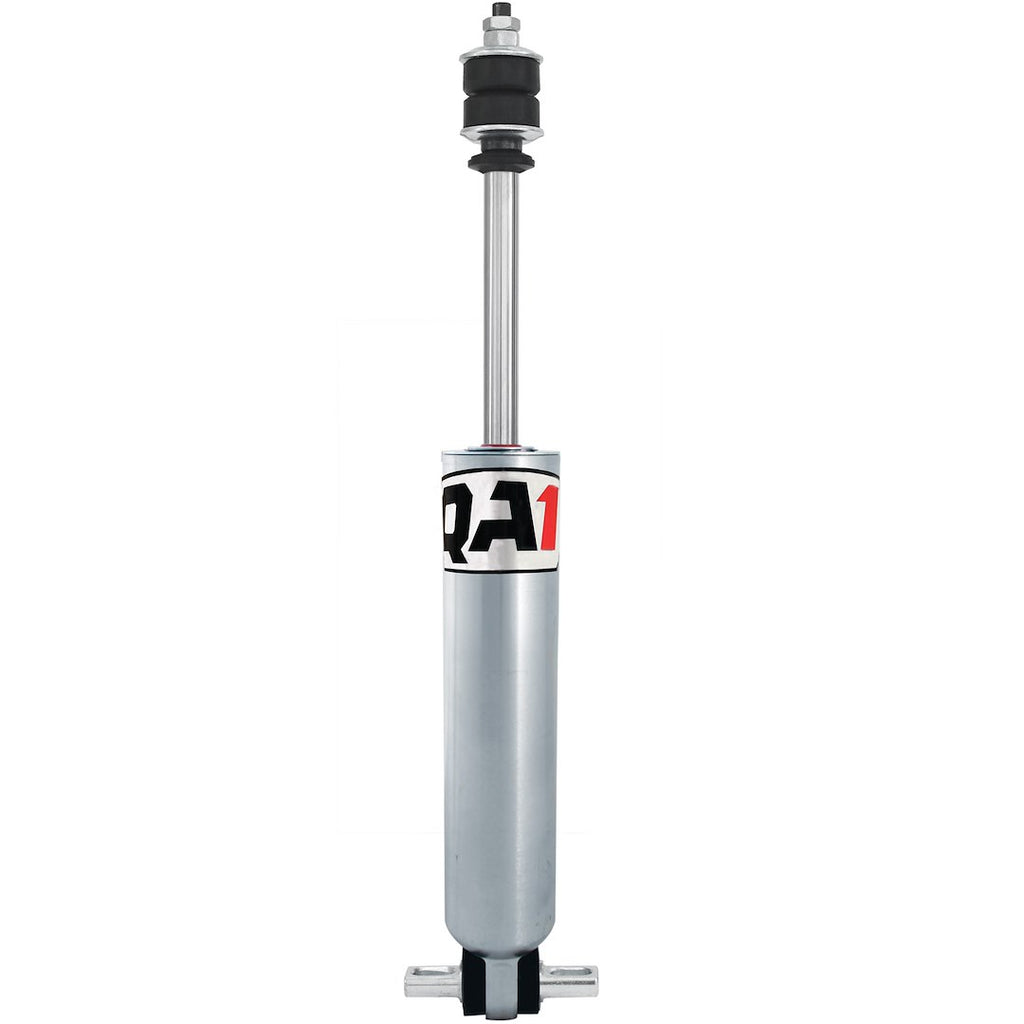

QA1 27 Series Sealed Hydraulic Mono Tube Shock (MPN: 27A945-3)

High-performance shock with advanced valving for precise handling and control.

The QA1 27 Series Sealed Hyperscrew Hydraulic Mono Tube Shock is engineered for high-performance racing applications. With an extended height of 14 inches and a compressed height of 9.17 inches, this shock features a robust design that includes a stud upper mount and a T-bar lower mount. The electroless nickel plated body ensures excellent corrosion resistance and durability, making it suitable for various racing conditions.

This shock utilizes advanced deflective disc technology, allowing for precise control of suspension dynamics at low shaft speeds while minimizing extreme forces at high velocities. The non-fading performance is achieved through a proprietary blend of specially engineered oil, ensuring consistent damping throughout the race. Additionally, the shock is racer rebuildable and revalveable, providing the flexibility to adjust settings according to specific driving needs.

The QA1 27 Series is designed without shock boots, which contributes to its streamlined profile and reduced weight. With a linear valving system, drivers can experience enhanced stability and better feedback from the vehicle, allowing for improved handling characteristics. This shock is a single unit, making it a practical choice for vehicle-specific applications.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27A945-3
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 14 Inch
• Compressed Length (IN): 9.17 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 5 Compression And Number 3 Rebound Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
