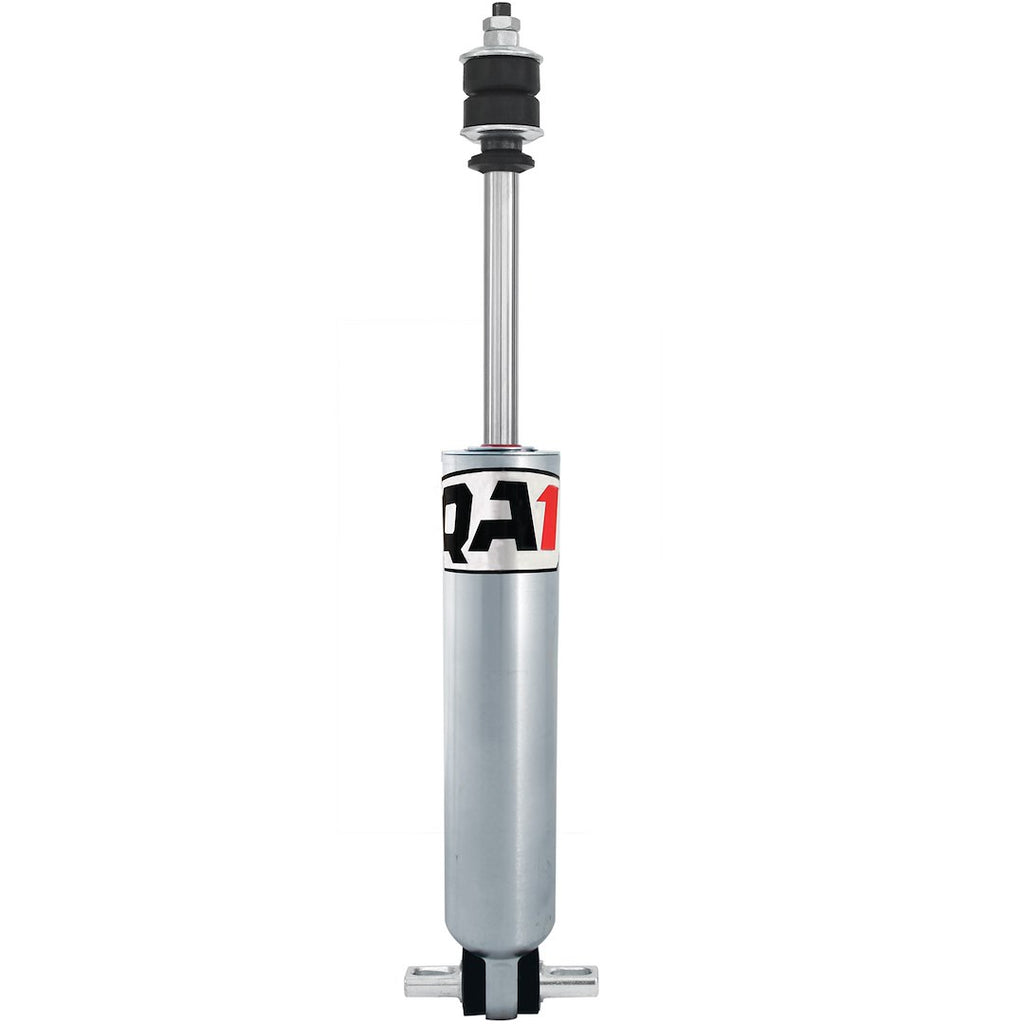

QA1 27 Series Sealed Hydraulic Mono Tube Shock (MPN: 27A945-10M)

Advanced shock technology for enhanced vehicle performance and handling.

The QA1 27 Series Sealed Hyperscrew Hydraulic Mono Tube Shock is engineered for high-performance racing applications. With a robust design featuring a 14-inch extended height and a 9.17-inch compressed height, this shock is built to withstand the rigors of competitive driving. The electroless nickel plated body ensures excellent corrosion resistance and durability, while the non-adjustable linear valving provides a stable ride and improved driver feedback.

This shock incorporates QA1's deflective disc technology, allowing for precise control of suspension dynamics at low shaft speeds without excessive forces at high velocities. The racer rebuildable and revalveable design means that the shock can be tailored to specific driving conditions, enhancing its utility on the track. The silver shock body and steel construction contribute to its strength and reliability, making it a valuable component for serious racers.

Designed for easy bolt-in installation, the QA1 27 Series shock is compatible with various stock mount options, ensuring versatility across multiple racing classes. The absence of shock boots and the inclusion of a stud upper and T-bar lower mount facilitate straightforward setup. This shock is a single unit, specifically designed for vehicle-specific applications, ensuring optimal performance and handling characteristics.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27A945-10M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 14 Inch
• Compressed Length (IN): 9.17 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 5 Compression And Number 10 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
