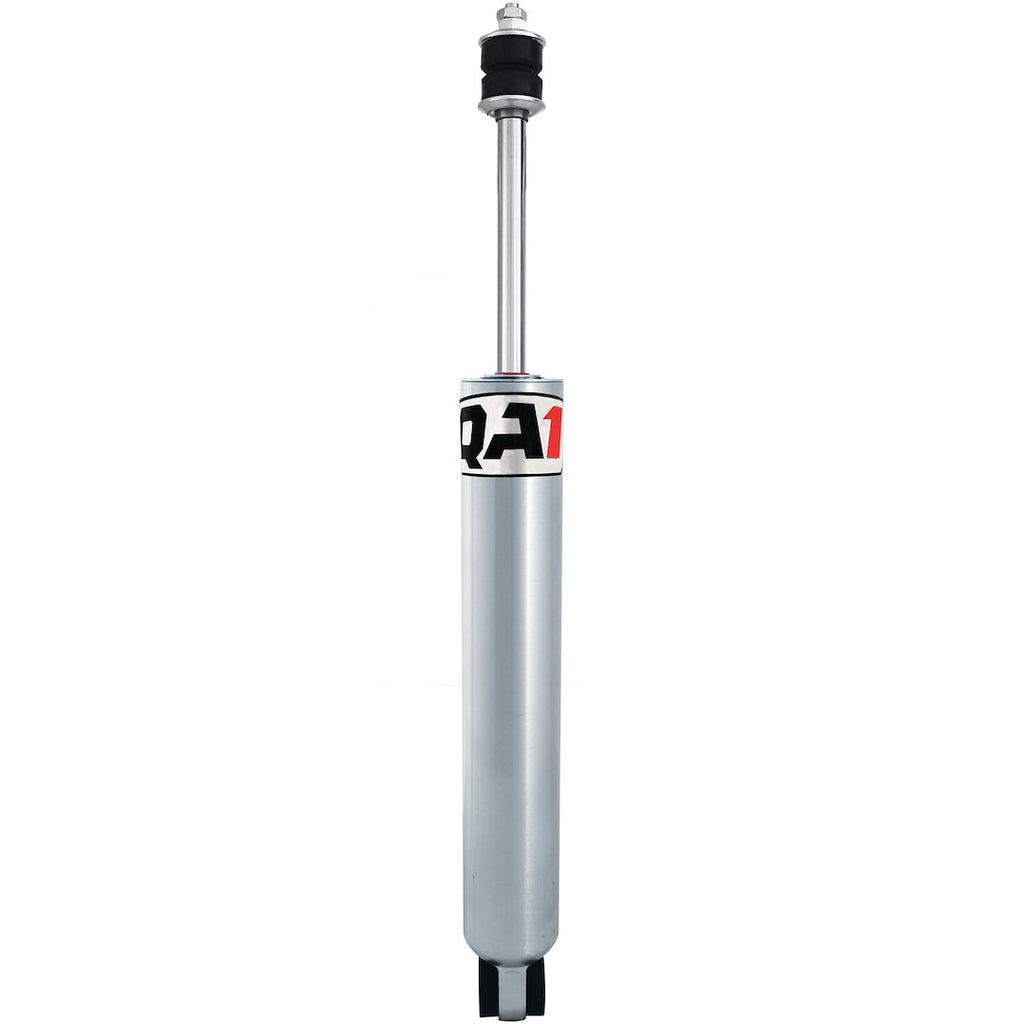

QA1 27 Series Sealed Hydraulic Mono Tube Shock (MPN: 27A884M)

High-performance shock with advanced valving for precise handling and durability.

The QA1 27 Series Sealed Hyperscrew Hydraulic Mono Tube Shock is engineered for high-performance racing applications. With an extended height of 21.38 inches and a compressed height of 12.8 inches, this shock features a robust design that includes a stud upper mount and loop lower mount. The electroless nickel plated body ensures excellent corrosion resistance and durability, making it suitable for various racing conditions.

This shock utilizes advanced deflective disc technology, allowing for precise control of suspension dynamics at low shaft speeds while minimizing extreme forces at high velocities. The linear valving system enhances vehicle stability and driver feedback, contributing to improved handling characteristics. Additionally, the shock is non-fading, thanks to a proprietary blend of specially engineered oil that maintains performance over time.

Designed for easy installation, the QA1 27 Series shocks are racer rebuildable and revalveable, providing the flexibility to adjust settings according to specific driving needs. This feature ensures that racers can maintain optimal performance without the need for replacement. The silver shock body and steel construction further enhance the shock's reliability and performance in demanding environments.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27A884M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21.38 Inch
• Compressed Length (IN): 12.8 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 4 Compression And Number 4 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1979-1983 Ford Mustang
