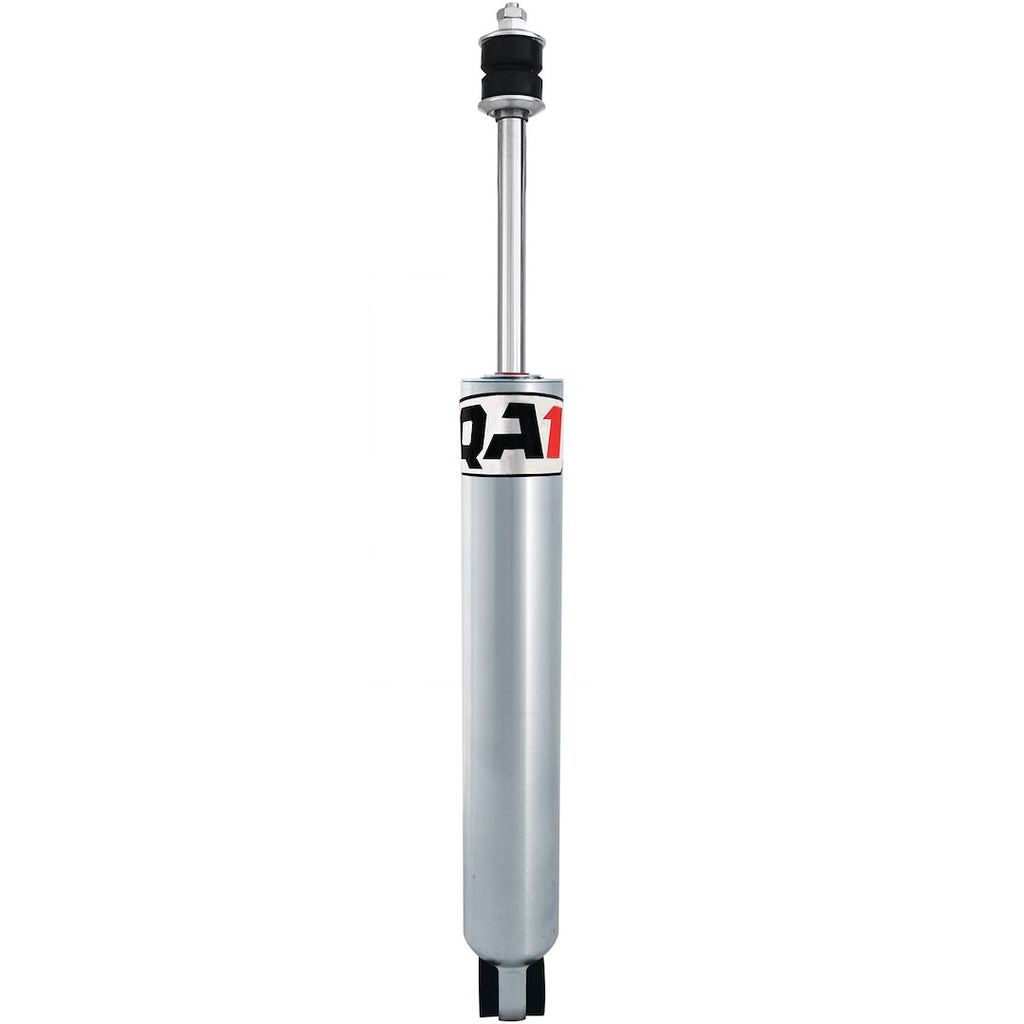

QA1 27 Series Sealed Hydraulic Mono Tube Shock (MPN: 27A883-6M)

High-performance shock absorber with advanced valving for racing applications.

The QA1 27 Series Sealed Hyperscrew Hydraulic Mono Tube Shock is engineered for high-performance racing, offering a robust design with a focus on durability and adjustability. With an extended height of 21.38 inches and a compressed height of 12.8 inches, this shock is tailored for specific vehicle applications, ensuring a precise fit and optimal performance. The electroless nickel plated body provides excellent corrosion resistance and superior hardness, enhancing the longevity of the shock in demanding environments.

This shock features advanced deflective disc technology, allowing for precise control of suspension dynamics at varying speeds. The linear valving system ensures a stable ride, enabling drivers to maintain better control and feel of the vehicle. Additionally, the non-fading proprietary oil blend used in the shock prevents performance degradation over time, making it a reliable choice for competitive racing.

Designed for easy installation, the QA1 27 Series shock is racer rebuildable and revalveable, allowing for customization to meet specific driving needs. The shock's construction includes a stud upper mount and loop lower mount, providing versatility in mounting options. With its technical features and robust design, the QA1 27 Series shock is a valuable component for serious racers looking to enhance their vehicle's performance.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27A883-6M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21.38 Inch
• Compressed Length (IN): 12.8 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 3 Compression And Number 6 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1979-1983 Ford Mustang
