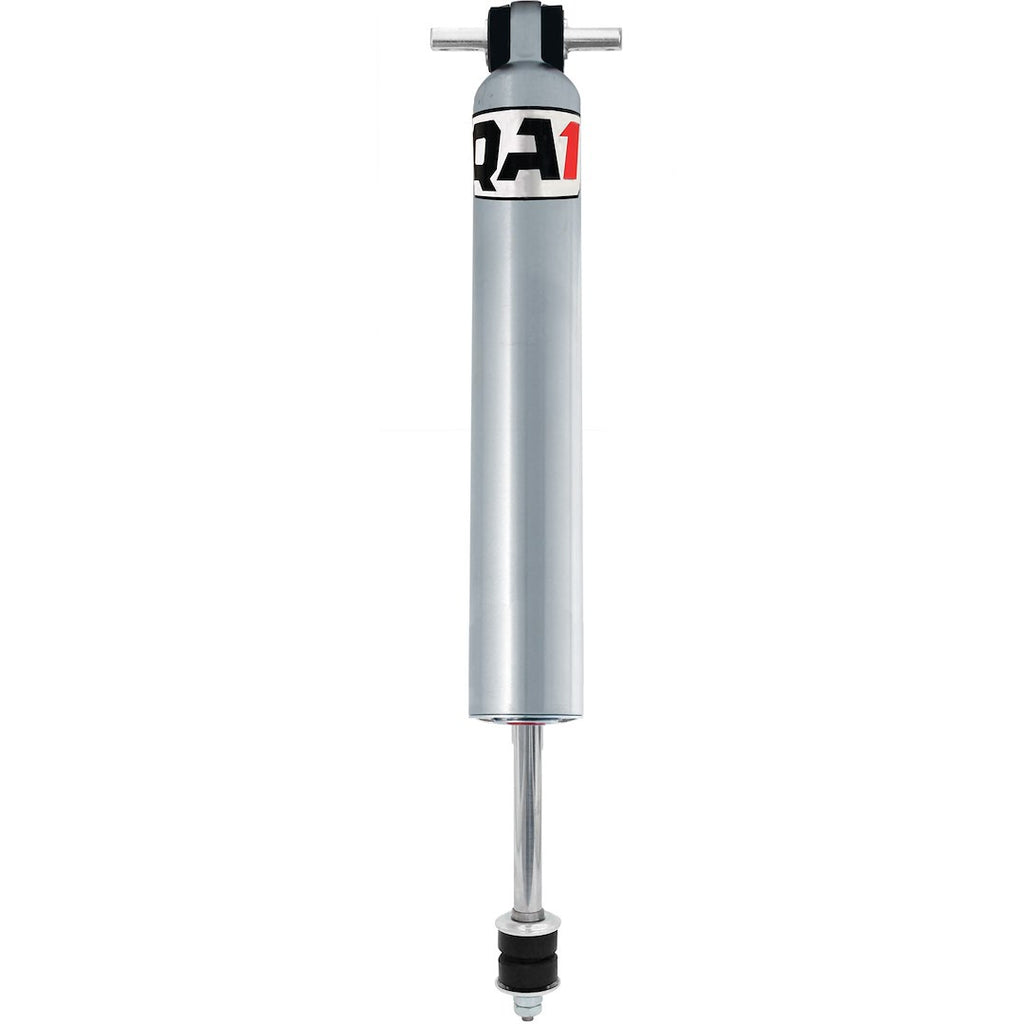

QA1 27 Series Sealed Hydraulic Mono Tube Shock (MPN: 27A583-5M)

High-performance shock absorber with advanced valving for racing applications.

The QA1 27 Series Sealed Hyperscrew Hydraulic Mono Tube Shock is engineered for high-performance racing, offering a robust design that ensures durability and reliability. With an extended height of 21.38 inches and a compressed height of 12.8 inches, this shock is tailored for specific vehicle applications, providing a precise fit and optimal performance. The electroless nickel plated body enhances corrosion resistance and durability, making it suitable for various racing conditions.

This shock features advanced deflective disc technology, allowing for customizable valve settings to meet specific driving and handling requirements. The linear valving system contributes to a more stable vehicle, enabling drivers to maintain better control and feel during races. Additionally, the non-fading proprietary oil blend ensures consistent performance without degradation over time.

Designed for easy installation, the QA1 27 Series shock is racer rebuildable and revalveable, promoting sustainability and repeatability in performance. The shock's construction includes a steel body and rod, ensuring strength and longevity. With no need for shock boots and a straightforward installation process, this shock is a practical choice for serious racers looking to enhance their vehicle's suspension system.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27A583-5M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21.38 Inch
• Compressed Length (IN): 12.8 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Stud
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 3 Compression And Number 5 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
