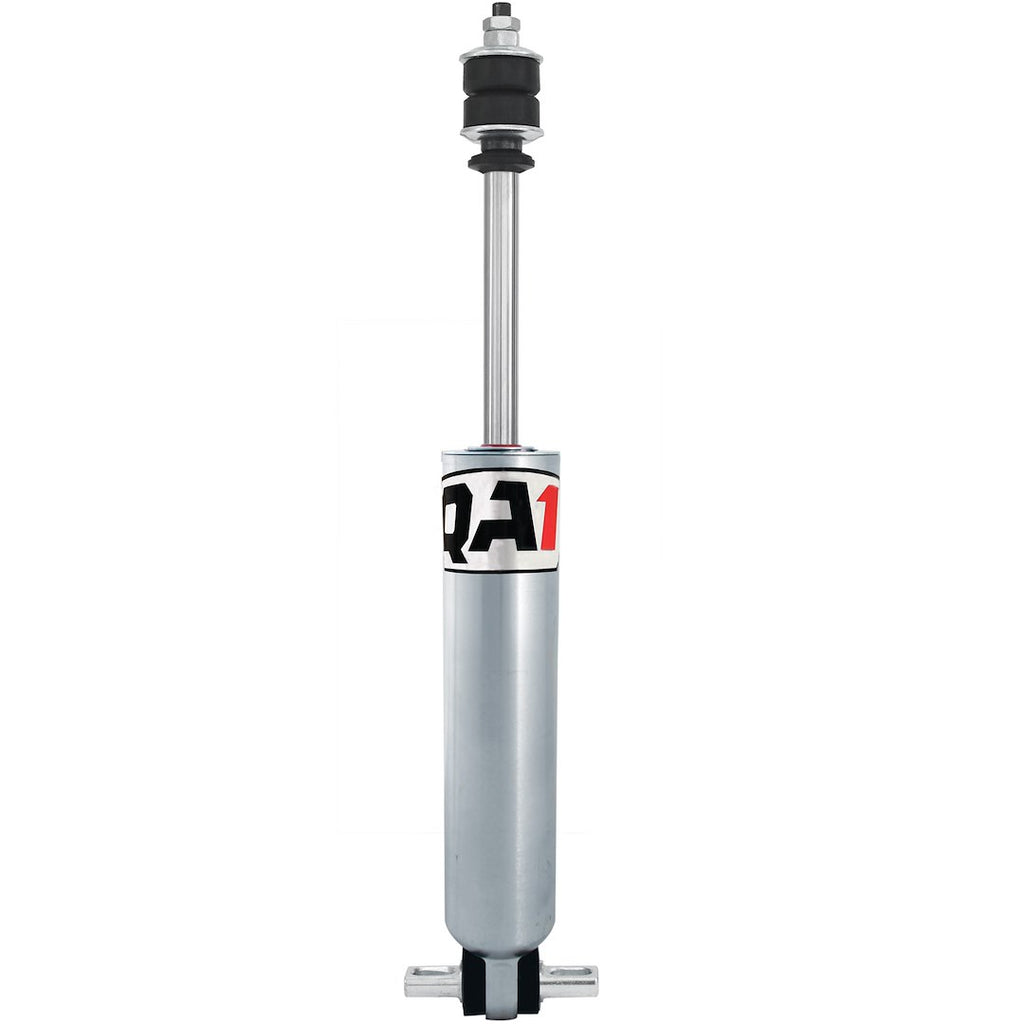

QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock (MPN: 2794M-DRY)

High-performance shock with advanced valving for precise handling and durability.

The QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock is engineered for high-performance racing applications. This shock features a robust design with a 14-inch extended height and a 9.17-inch compressed height, making it suitable for various vehicle setups. The electroless nickel plated body ensures excellent corrosion resistance and durability, while the monotube design provides consistent performance under demanding conditions.

Incorporating advanced deflective disc technology, the 27 Series allows for precise control of suspension dynamics, enabling drivers to fine-tune their vehicle's handling characteristics. The linear valving system enhances stability, allowing for better feedback from the car during operation. Additionally, the shock is racer rebuildable and revalveable, ensuring longevity and adaptability to changing racing conditions.

With a stud upper mount and T-bar lower mount, installation is straightforward, and the shock is designed to fit specific vehicle applications. The absence of shock boots and the use of a premium oil blend prevent fading, ensuring reliable performance throughout the race. The QA1 27 Series is a solid choice for racers seeking a dependable and high-quality shock absorber.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 2794M-DRY
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 14 Inch
• Compressed Length (IN): 9.17 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Dry Compression And Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
