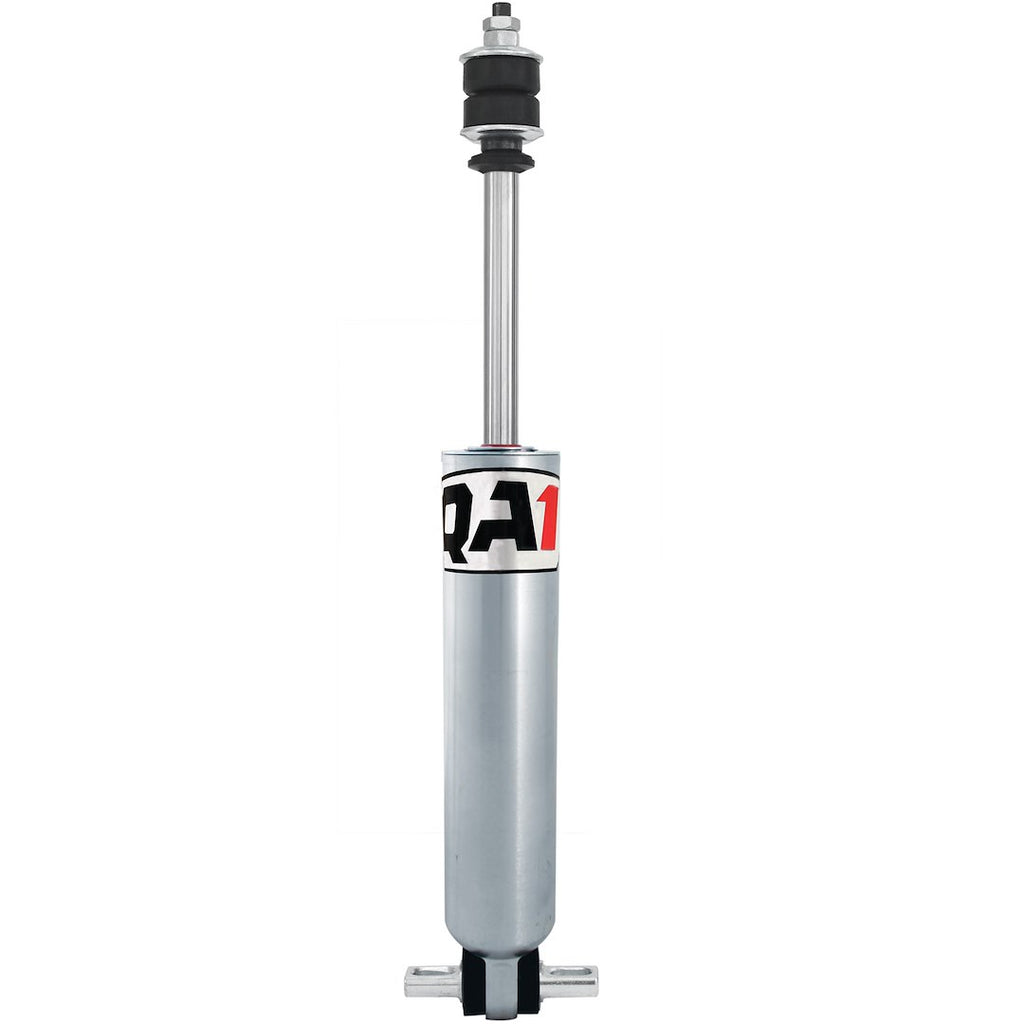

QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock (MPN: 27946-4M)

Advanced shock technology for enhanced racing performance and durability.

The QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock is engineered for high-performance racing applications. This shock features a robust design with a 14-inch extended height and a 9.17-inch compressed height, making it suitable for various racing classes. The electroless nickel plated body provides exceptional corrosion resistance and durability, ensuring longevity even in harsh conditions. With its non-adjustable linear valving, this shock delivers a stable ride and improved driver feedback, allowing for precise handling on the track.

Incorporating QA1's deflective disc technology, the 27 Series allows for easy adjustments to valve settings, catering to specific driving and handling requirements. The shock is racer rebuildable and revalveable, promoting sustainability and performance consistency. The premium proprietary oil used in the shock prevents fading, ensuring reliable performance throughout races. Designed with a stud upper mount and T-bar lower mount, this shock is compatible with a variety of vehicle setups, making it a versatile choice for serious racers.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27946-4M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 14 Inch
• Compressed Length (IN): 9.17 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 6 Compression And Number 4 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
