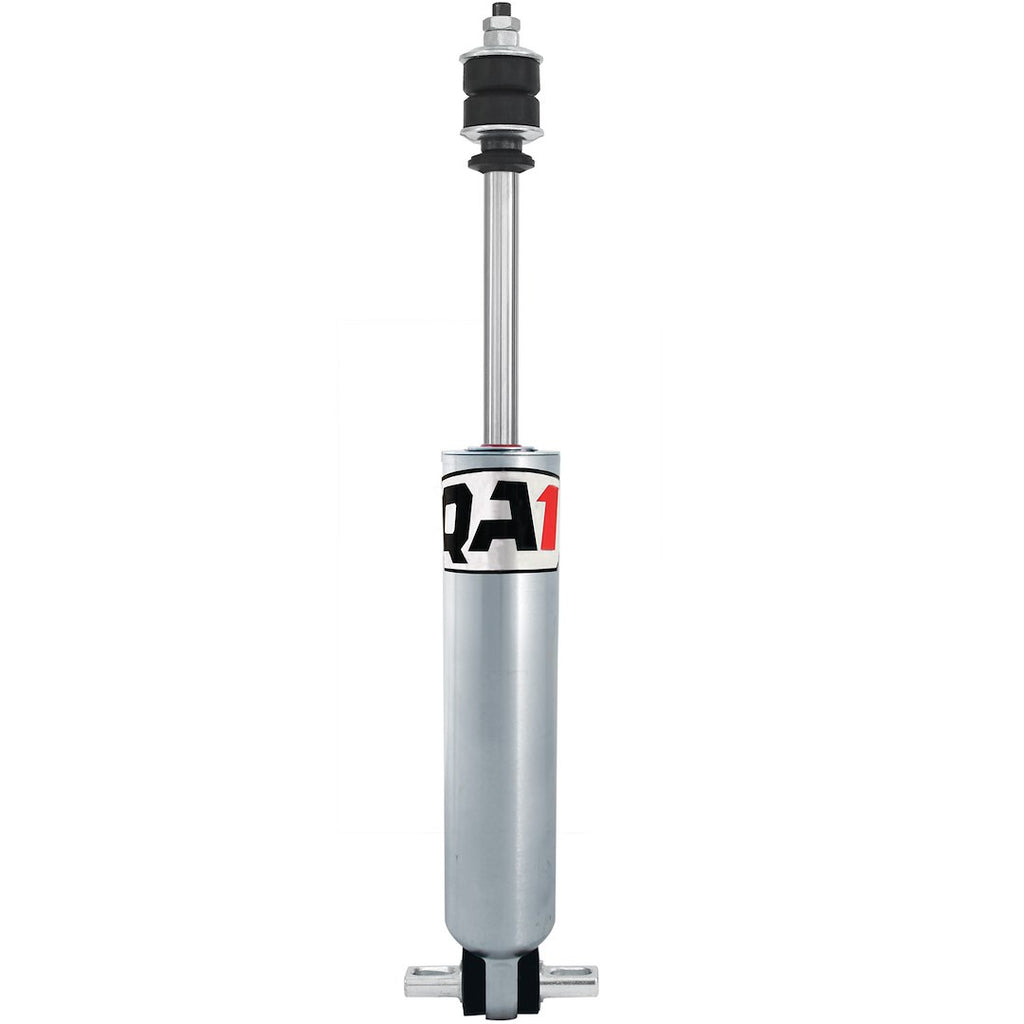

QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock (MPN: 27945M)

Advanced shock technology for enhanced racing performance and durability.

The QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock is engineered for high-performance racing applications. This shock features a robust design with a 14-inch extended height and a 9.17-inch compressed height, making it suitable for various racing classes. The electroless nickel plated body ensures excellent corrosion resistance and durability, while the monotube internal design provides consistent performance under demanding conditions.

Incorporating QA1's deflective disc technology, this shock allows for precise control of suspension dynamics, enabling drivers to adjust valve settings to meet specific handling requirements. The linear valving system enhances vehicle stability and driver feedback, contributing to improved handling characteristics. Additionally, the shock is racer rebuildable and revalveable, ensuring longevity and adaptability throughout its use.

With a stud upper mount and T-bar lower mount, installation is straightforward, and the shock is designed to fit specific vehicle applications. The absence of shock boots and the use of premium proprietary oil prevent fading, ensuring reliable performance over time. The QA1 27 Series is a single shock solution that combines advanced engineering with practical features for serious racers.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27945M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 14 Inch
• Compressed Length (IN): 9.17 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 5 Compression And Number 5 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
