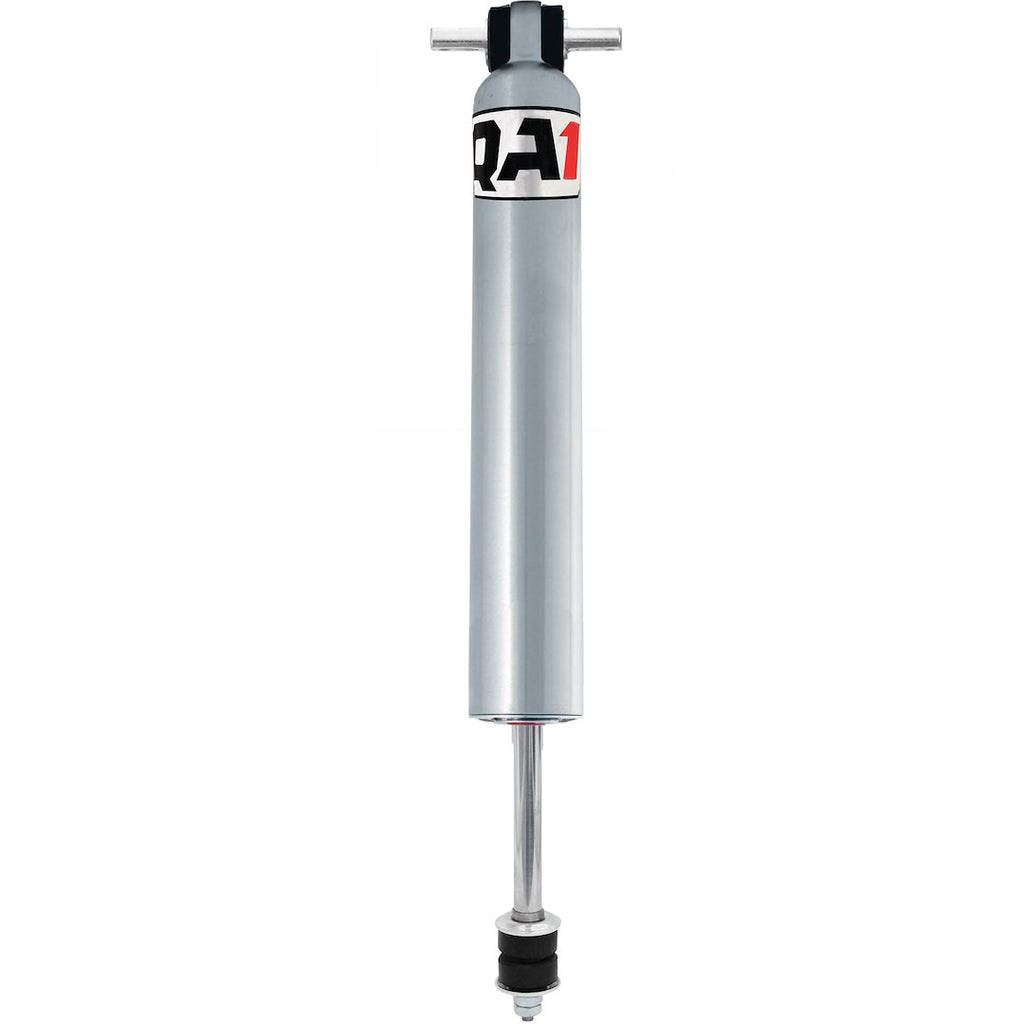

QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock (MPN: 27584-6M)

Advanced shock technology for enhanced racing performance and durability.

The QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock is engineered for high-performance racing applications. This shock features a robust design with a 21.38 inch extended height and a 12.8 inch compressed height, making it suitable for various vehicle specifications. The electroless nickel plated body ensures excellent corrosion resistance and durability, while the non-adjustable linear valving provides a stable driving experience by allowing drivers to better feel their vehicle's handling characteristics.

Incorporating QA1's deflective disc technology, this shock allows for precise control of suspension dynamics at low shaft speeds without generating excessive forces at high velocities. The racer rebuildable and revalveable design means that the shock can be maintained and adjusted to meet specific racing needs, ensuring longevity and performance consistency. The shock's construction includes a steel body and rod, providing strength and reliability under demanding conditions.

With a T-bar upper mount and stud lower mount, installation is straightforward, making it accessible for racers looking to enhance their vehicle's suspension system. The QA1 27 Series is a single shock unit that does not include dust shields or boots, focusing on performance and functionality for serious racers.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27584-6M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21.38 Inch
• Compressed Length (IN): 12.8 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Stud
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 4 Compression And Number 6 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
