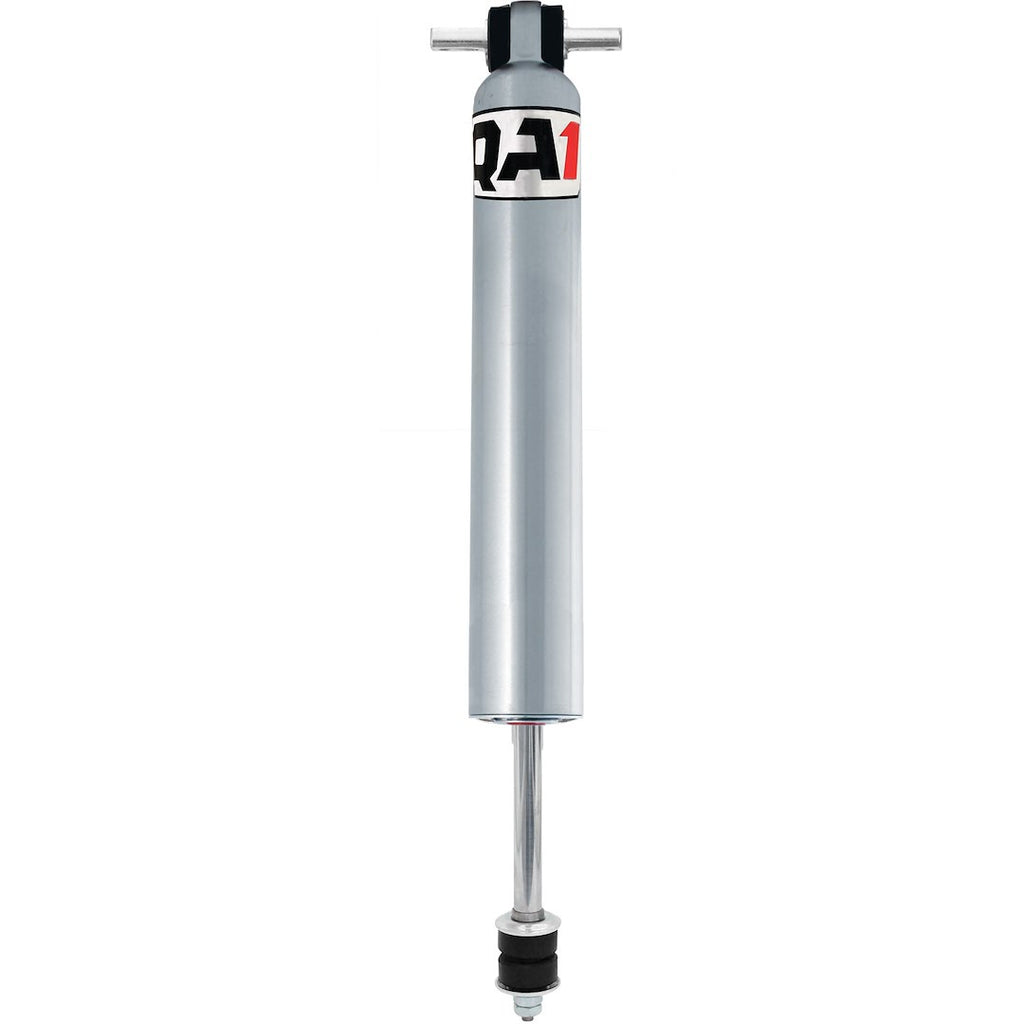

QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock (MPN: 27583-7M)

Advanced shock technology for enhanced vehicle performance and handling.

The QA1 27 Series Hyperscrew Hydraulic Mono Tube Shock is engineered for precision and durability in racing applications. With a robust design featuring a 21.38 inch extended height and a 12.8 inch compressed height, this shock is built to withstand the rigors of competitive driving. The electroless nickel plated body ensures excellent corrosion resistance and superior hardness, making it a reliable choice for various racing environments.

This shock utilizes advanced deflective disc technology, allowing for customizable valve settings that cater to specific driving conditions. The linear valving system enhances vehicle stability and provides drivers with improved feedback, contributing to better handling and control. Additionally, the non-fading proprietary oil blend used in the shock prevents performance degradation over time, ensuring consistent operation.

Designed for easy installation, the QA1 27 Series shock is racer rebuildable and revalveable, promoting sustainability and long-term use. The shock features a T-bar upper mount and stud lower mount configuration, making it compatible with a range of vehicles. With its technical specifications and innovative features, the QA1 27 Series is a valuable addition to any racing setup.

Features

• Hyperscrew: Threaded Round Port Near The Bearing End Of The Shock Body Is Sealed With A Small Screw
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear Valving: Provides A More Stable Car And Allows The Driver To Feel The Car Better
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 27583-7M
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21.38 Inch
• Compressed Length (IN): 12.8 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Stud
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 0.59 Inch
• Valving Type: Number 3 Compression And Number 7 Rebound Linear Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird
