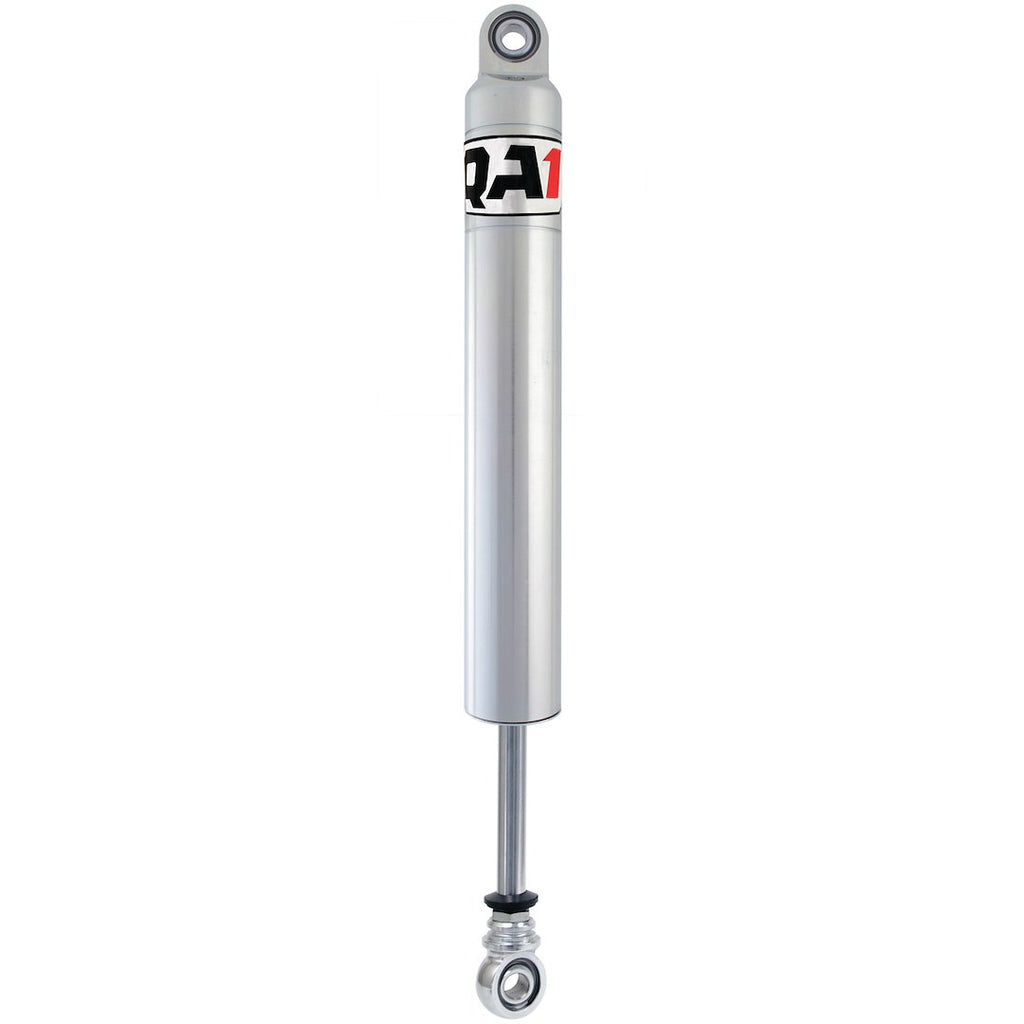

QA1 26 Series Coil Over Shock Absorber (MPN: 2696M)

Budget-friendly performance with advanced corrosion resistance and durability.

The QA1 26 Series Coil Over Shock Absorber is engineered for high performance while remaining budget-friendly. This monotube shock features a one-piece steel body with an electroless nickel plating that provides exceptional corrosion resistance and durability. The smooth finish on the inside of the shock body ensures consistent performance, allowing the piston to operate effectively without interference from rough surfaces.

Designed for versatility, the 26 Series shock is adjustable in ride height and can be mounted upside down without affecting its performance. The shock utilizes advanced valving technology, including number 6 compression and rebound linear valving, to deliver precise control over suspension dynamics. This feature is complemented by a premium oil blend that prevents fading, ensuring reliable performance under various conditions.

With its robust construction and innovative design, the QA1 26 Series shock absorber is suitable for a range of applications, providing users with the ability to fine-tune their suspension setup. The shock is also racer revalveable and rebuildable, making it a practical choice for those seeking long-term performance and reliability.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• One-Piece Body Design. Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight
• Deflective Disc Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 2696M
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.7 Inch
• Compressed Height (IN): 15.7 Inch
• Quantity: Single
• Valving Type: Number 6 Compression And Number 6 Rebound Linear Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
