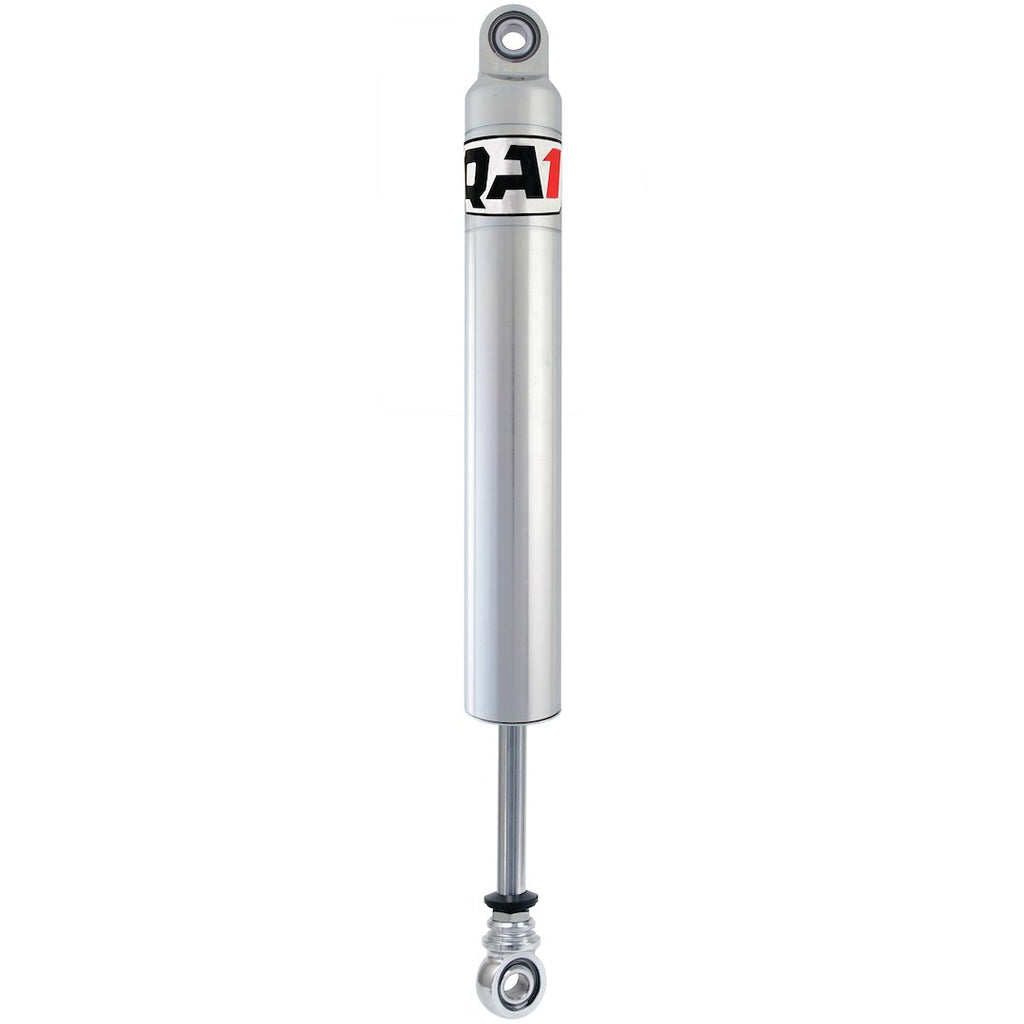

QA1 26 Series Coil Over Shock Absorber (MPN: 2694-2)

Budget-friendly performance with advanced corrosion resistance and tunable features.

The QA1 26 Series Coil Over Shock Absorber is engineered for performance and durability, featuring a one-piece steel body with an electroless nickel plating that enhances corrosion resistance and provides a smooth internal finish. This design ensures consistent performance throughout its use, making it a reliable choice for various applications. The shock absorber is equipped with number 4 compression and number 2 rebound digressive valving, allowing for precise control of suspension dynamics at varying speeds.

With an adjustable ride height and the ability to be mounted upside down, this shock absorber reduces unsprung weight while maintaining its performance characteristics. The monotube design incorporates a premium proprietary blend of oil to prevent fade, ensuring that the shock performs consistently under different conditions. Additionally, the shock is racer revalveable and rebuildable, providing users with the option to fine-tune their suspension setup for optimal performance.

The QA1 26 Series is designed to meet the demands of competitive environments while remaining budget-friendly. Its robust construction and advanced features make it suitable for a wide range of vehicles, ensuring that users can achieve the desired handling and ride quality.

Features

• Electroless Nickel Plated Body: Encapsulates The Base Metal And Completely Seals Out The Elements, Proving Excellent Corrosion Resistance, Superior Hardness, Consistency And Lubricity
• Racer Revalveable And Rebuildable: Designed For Unparalleled Repeatability
• Tuneable Gas Pressure: Available With Tuneable External Gas Charging Port
• Non-Fading: QA1 Uses A Premium Proprietary Blend Of Specially Engineered Oil To Prevent Fade
• Deflective Disk Valving: Damping Curve Allows For Complete Control Of Suspension At Low Shaft Speeds Without Creating Extreme Forces At High Shaft Velocities
• Linear, Digressive And Low Speed Super Digressive Valving Available. 15 Millimeter Centerless Ground, Hard Chrome Plated Piston Rod. One-Piece Body Design
• Can Be Run Upside Down: Can Be Mounted Upside Down With No Change In Rate To Reduce Unsprung Weight

Specifications

• Manufacturer: QA1
• Manufacturer Part Number: 2694-2
• Adjustable: Yes
• Upper Mounting Type: Eyelet
• Lower Mounting type: Eyelet
• Extended Height (IN): 24.7 Inch
• Compressed Height (IN): 15.7 Inch
• Quantity: Single
• Valving Type: Number 4 Compression And Number 2 Rebound Digressive Valving
• Shock Type: Monotube
• Shock Body Color: Silver
• Shock Body Material: Steel
• Spring Rate: No Spring
• Spring Style: No Spring
• Spring Finish: No Spring
• Spring Color: No Spring
• Spring Material: No Spring
• Includes Mounting Hardware: No
