Advanced 3 Bank Charger for 24 Volt Marine Batteries

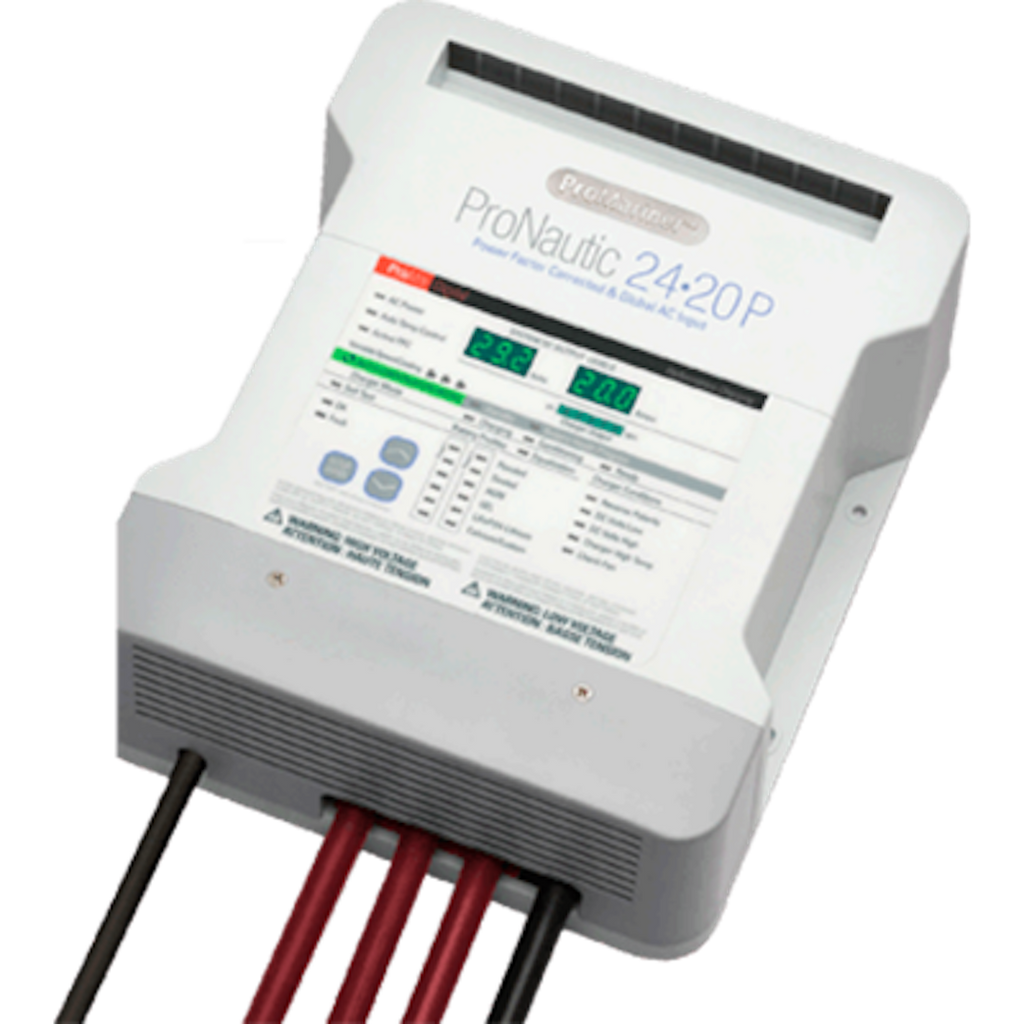

The ProMariner Battery Charger is designed for efficient charging of 24 volt marine batteries, featuring a fully automatic operation that simplifies the charging process. With a robust 20 amp charging current, this charger supports up to three battery banks, making it suitable for various marine applications. The charger operates on a wide input voltage range of 100 to 260 volts AC at 50 to 60 Hz, ensuring compatibility with standard household power connections.
Utilizing the ProMar Digital Performance Charging Platform, the ProMariner Charger offers twelve digitally-controlled performance charging profiles. These profiles include charging, conditioning, maintaining, and re-conditioning capabilities, which help extend battery life and optimize performance. The charger is equipped with dual digital displays that provide real-time monitoring of charging voltage and amperage, along with diagnostics for AC power and fault indications.
Designed with advanced features, the ProMariner Battery Charger automatically senses and distributes available charging amps to any bank or combination of banks. It also includes a battery temperature sensor and a unique dockside power mode for 12 volt DC lighting and appliances. This charger is compatible with various battery types, including AGM, flooded lead-acid, and lithium-iron phosphate, making it a versatile choice for boat owners.
Features
- Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition
- Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection
- Automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks.
- Automatically programs conditioning time based on discharge state of batteries
- Real time indication of wiring faults or adverse conditions that may impact the operation of a boat?s charging system.
- After 72 hours of not seeing a load greater than 5 amps, float voltage will be lowered consuming less energy during storage periods. (for flooded & sealed charge profiles)
- Automatic dockside power mode for 12 Volt DC lighting and appliances; Factory set for Flooded (Lead Acid) batteries.;AGM, GEL selectable
- Automatically de-sulfates batteries after 21 days in the maintain mode, improving reserve power performance & extending battery life
Specifications
- Manufacturer: Pro Mariner
- Manufacturer Part Number: 63170
- Count Of Batteries Charged: 3
- Battery Type: AGM/ Calcium/ Flooded Lead-Acid/ Gel/ Lithium-Iron Phosphate (LiFePO4) Batteries
- Charging Current: 20 Amp
- Output Voltage: 24 Volt
- Input Voltage: 100 To 240 Volt
- Number Of Stages: 1 Stage
- Universality: Fully Universal
- Length (IN): 10-1/4 Inch
- Width (IN): 8-1/2 Inch
- Height (IN): 3-1/2 Inch
